screen corner inserts and latches

Question

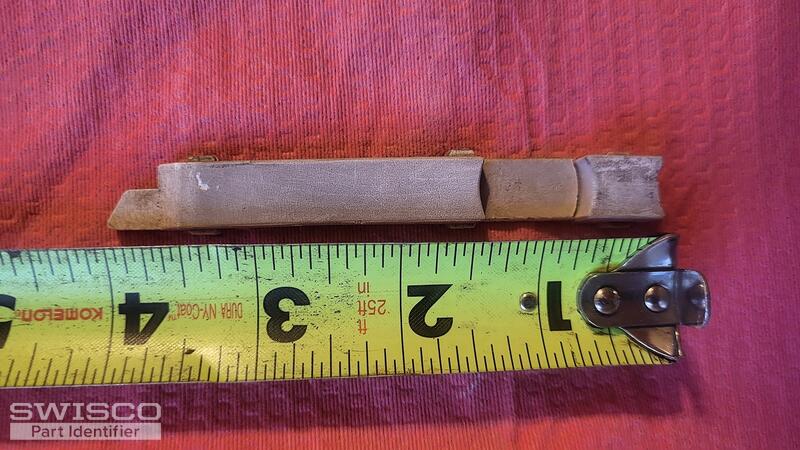

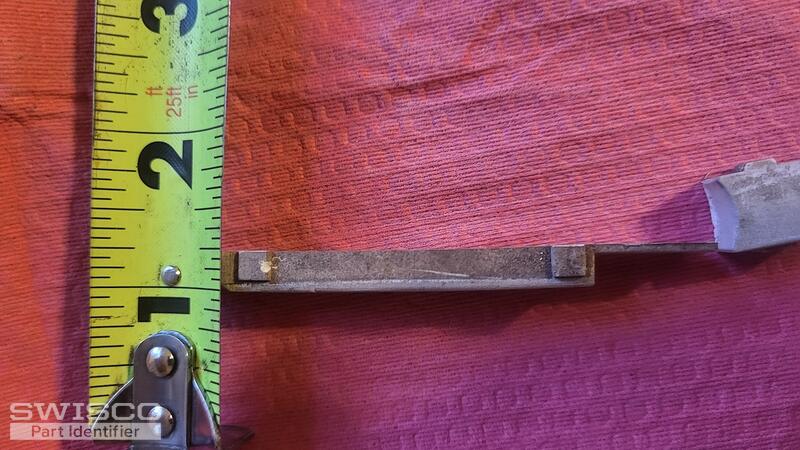

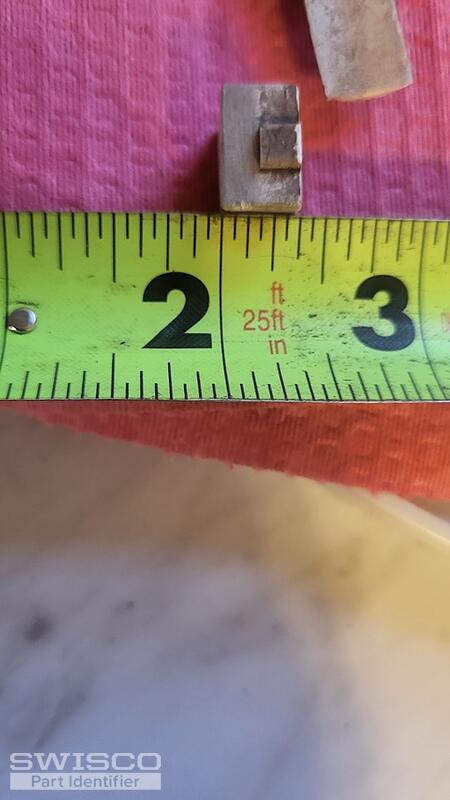

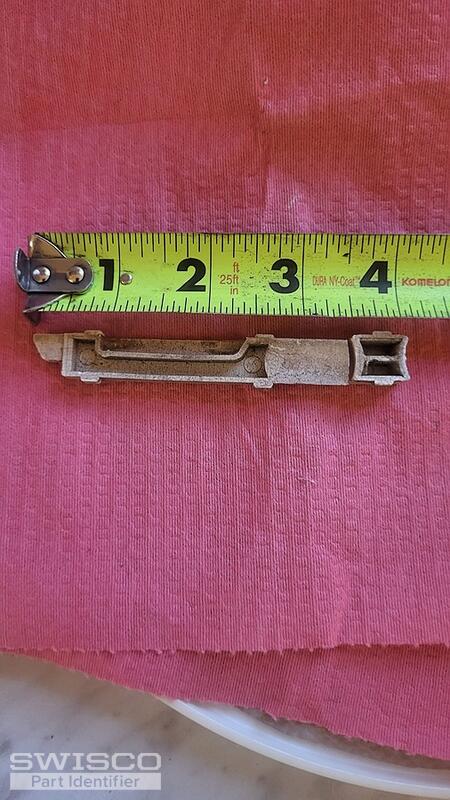

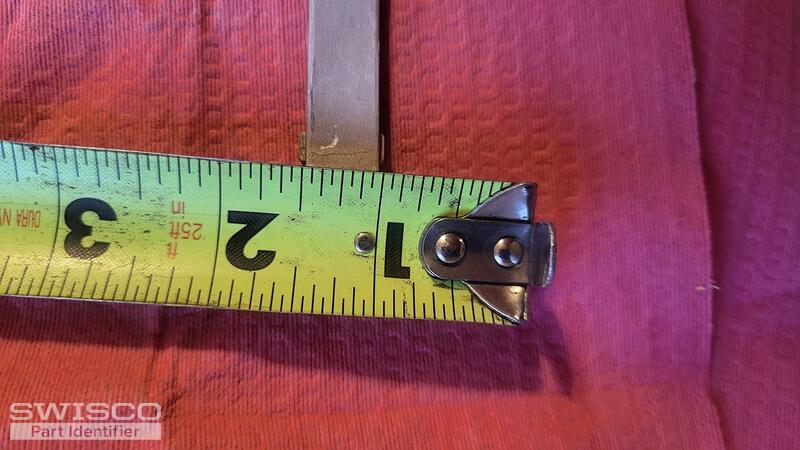

Here's info on screens I need parts for.
One frame is 31 1/2 w by 22 1/2 h
and one is 31 1/2 w by 18 3/4 h.

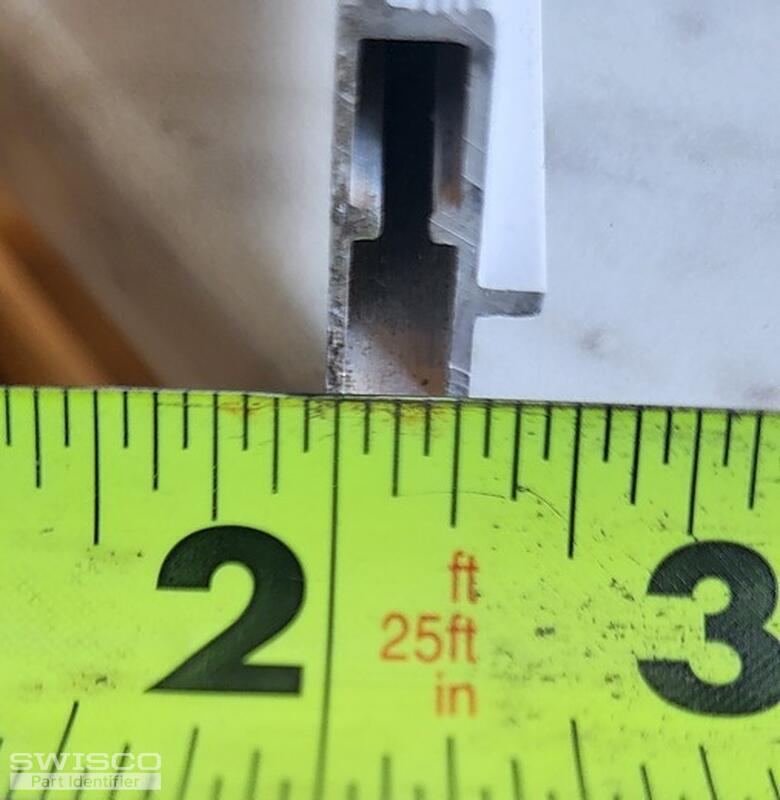

The OD is 3/8 and the ID is 3/16.
I need screen corner inserts for three frames and latches for two frames.

Casey · Accepted Answer

Hello,

Unfortunately, this nylon double-leg corner is no longer available. Your best bet would be to use the 95-002 corner key to hold the frame together while you install it into the channel closest to the screen groove. However, you will also need one leg of your existing nylon corner, or one leg of the 95-002, to hold your slide latches on the bottom channel of the screen frame. Take a look and see what you think.

Alternate image for 95-002

As for the slide latch, your photos resemble the 91-054, which uses the 91-003 spring. Take a look and compare the specifications below to confirm if they match your original hardware. Thanks for posting!

Alternate image for 91-054

Dimensions for 91-003
