screen door corner replacemt

A handy person from pleasanton CA 94566 says:
I am trying to replace the corner pieces on my screen door. The frame is in good shape - but the adjustment screws and corner pieces are stripped / worn.

photos attached

Can you please tell me what piece I need?

thanks bob

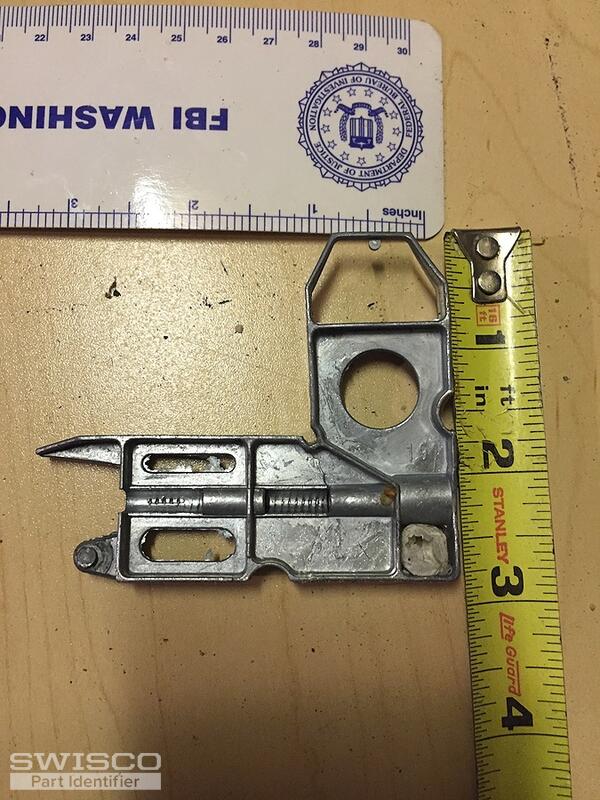

Thumbnail of the uploaded file named IMG_2468.jpg

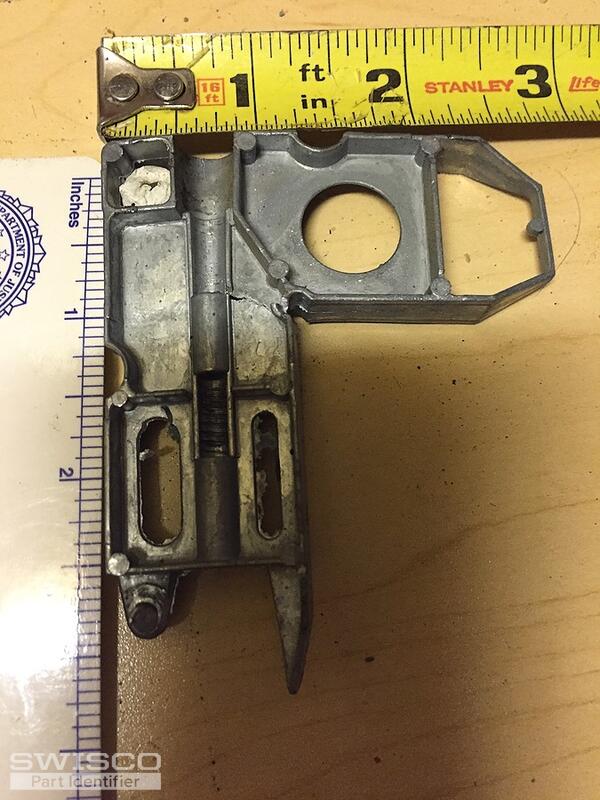

Thumbnail of the uploaded file named IMG_2469.jpg

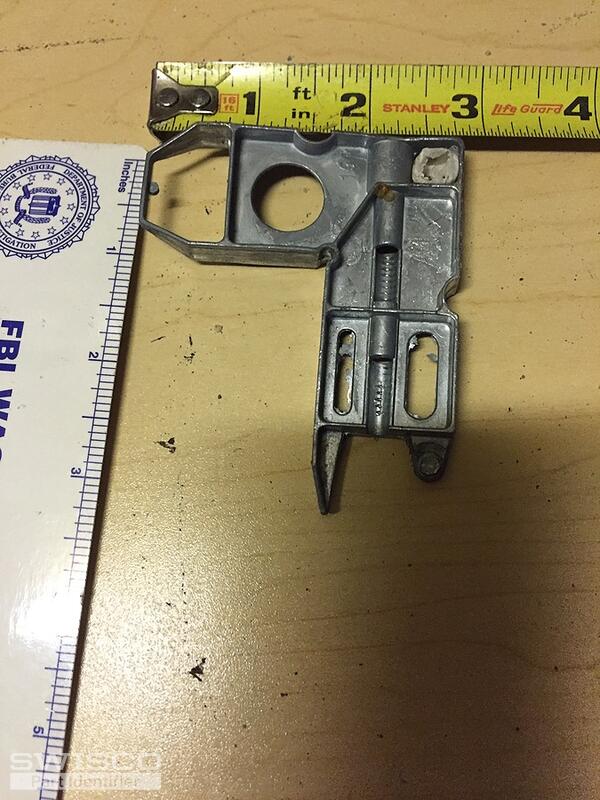

Thumbnail of the uploaded file named IMG_2470.jpg

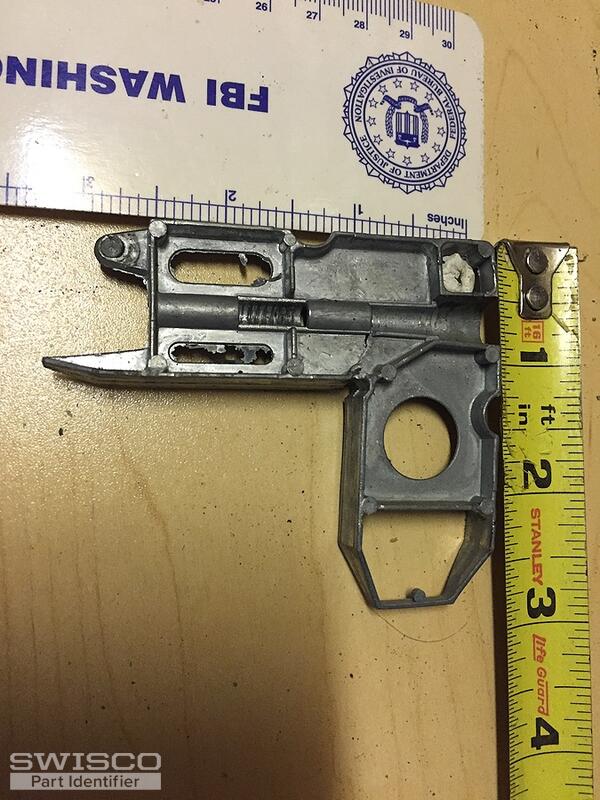

Thumbnail of the uploaded file named IMG_2471.jpg
Profile picture of Paul
Paul from SWISCO responded:

Thanks for contacting us, Bob. Your screen door corner looks like our 95-020. Carefully go over our measurements to see if this part is right for you.

A handy person from pleasanton CA 94566 says:
paul - thanks for the help. these look like the right corner pieces.

I also need some standard screen - which is the standard one - so many different versions.

Finally - how the heck do I figure out what size spline I need? I have the old spline, but do not know what size it is or how to measure this precise. Is there some kind of chart or something?

also - maybe just use the old spline - or should I replace with new?

Thanks - I am a new customer - but you guys are a great shop
Profile picture of Paul
Paul from SWISCO responded:

We are happy to help, Bob. The 43-036R (36" X 7') or 43-048R (48" X 7') are the standard fiberglass screen wire used by most window and door companies use. Regarding the screen door spline, you might be able to reuse the old one if it is still soft and pliable. If you do need new screen spline, measure the diameter and compare it to ours from 59-120 (just under 1/8") to 59-250 (1/4"). Let us know what you think.
