Dave Sr. from SWISCO responded:
January 10, 2018

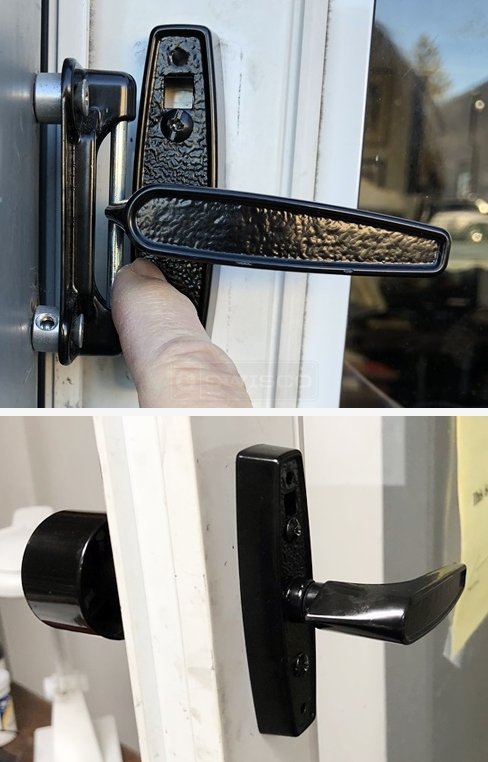

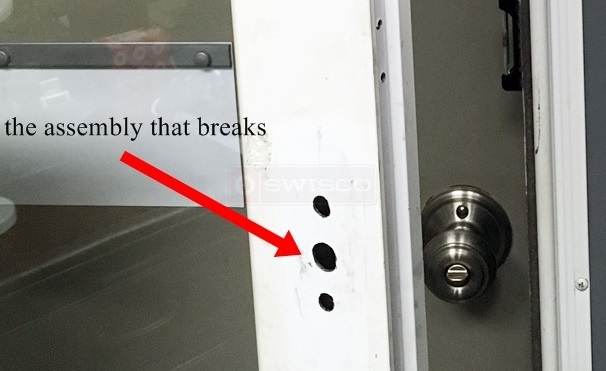

Your setup looks to be a little tricky. Your handle could be the 40-033, which has a 1-3/4" mounting hole center spacing. I would wager that the reason it keeps breaking is that people are pulling on the door before the latch is disengaged. Maybe try the pull up type like our the 40-152. That way when people yank on it, it becomes disengaged by design.
|
Dave Sr. from SWISCO responded:
January 23, 2018
I'm sorry, I'm not sure I understand what you're trying to do. Take a look at the 40-028 in-swing handle set. See if this could solve your problem. It has a surface mounted keeper which could be a little tricky installing on your Z-bar frame. What I have done in the same situation was to cut off and file smooth some of the handle on the one side so that it wouldn't interfere with the prime door. If you do need to cut the handle, just make sure to leave enough of the handle so you can turn the inside latch.
|
