screen door roller

Question

I Have What Might Be A Cardinal Sliding Patio Door ?

As The Only Makings are in the corner of the Glass

IGMAC

IGCC (R in circle) CBA

LoE

CARDINAL (R in circle)

CIG-3 3-99

I Need to Replace Two ea Rollers But Having Great Difficulty Locating Correct Replacement They Appear to the same as the Product Code: 84-096.

HowEver They are Listed With Different Door Corners Which is Okay as I Don't Need to Replace the Door Corners, HowEver if the 1 ½" door Corners Use Different Door Rollers Then of Course I Need to Know Which is the Correct Door Rollers.

SCREEN DOOR ROLLER, PAIR

Product Code: 84-096

Height 25.5 mm - 1.003 in

Wheel 28.56 mm-1 ?" inch

Same as listed

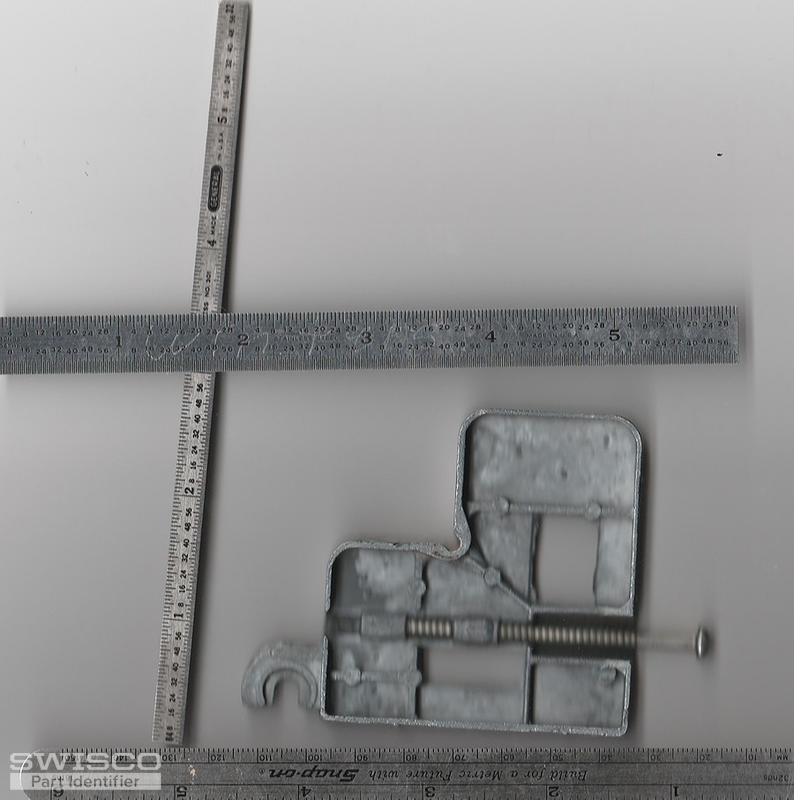

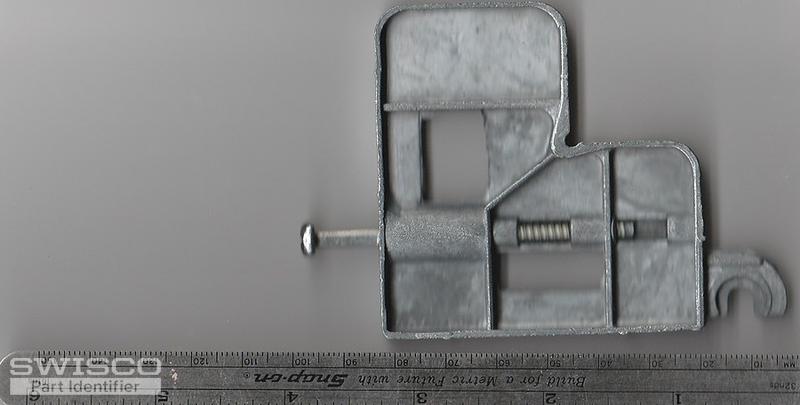

PATIO SCREEN DOOR CORNER

Product Code: 95-227

38.16mm - 1 ½" inches not the 1 ?" inches listed

10.42mm - 13/32" Not The ?" Listed ?

Scott

Tom · Accepted Answer

You are correct. The corner key we have, #95-227, is smaller than yours. The door manufacturer probably has an exclusive rights to their size corner where the die cast company can only release the more common corner key to us.

Having a hard time on the dimensions of your wheel compared to our #84-096, but if the dimensions match, it should work for your door.
