seeking weatherstripping for inside casement frame

Home Owner from philadelphia
May 28, 2024 10:14 am

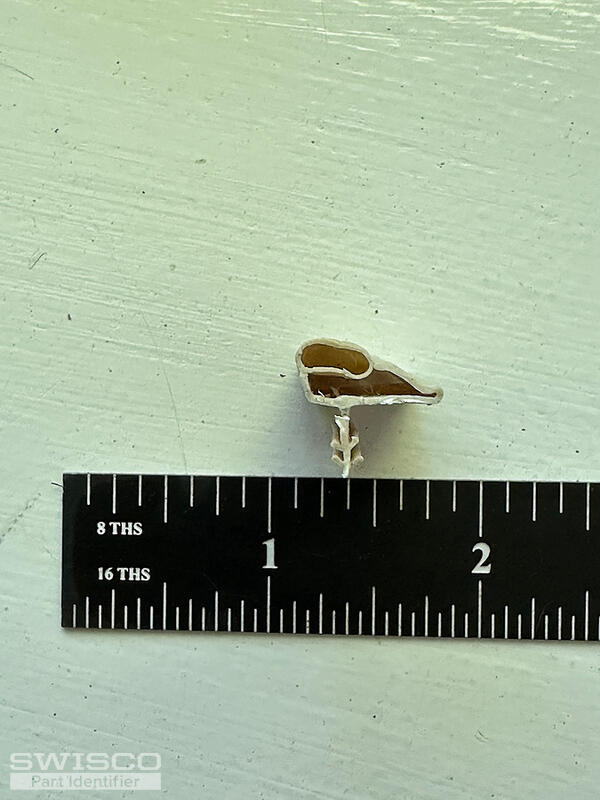

Pictures below come from a wooden casement window, unknown manufacturer, build in the late 1980s (I think). Only markings are on metal hardware, says "Truth", though I don't know if they made the window. Can you pls help identify this weatherstripping or suggest a replacement? I am the homeowner and the house handyman
4 user uploaded images
3 Replies

Home Owner from philadelphia
May 28, 2024 1:42 pm
I forgot to offer my measurements of the piece. Barb appears to be 9/32 deep. the segment that lies flat against the frame measures at 1/2". The "bead" is pretty floppy and hard to get an exact measurement, but in its squished oblong shape it appears 1/8 wide and 1/4 long; the flap (?sweep) segment appears to measure 9/32"

Tom from SWISCO
May 30, 2024 3:02 pm


Hello! This is a very old window, and your exact seal is unfortunately not something that we can supply. However, something like our 58-055 may work as an alternative. The design is different but it's meant to work in the same capacity (on modern casement windows, anyway). I think it's at least worth considering. You can review its specifications below and decide if you want to take the chance.

Profile view of 58-055
