set of balancers

Start a new Discussion

Distributor from Fredericksburg Texas

Aug 22, 2023 11:22 am

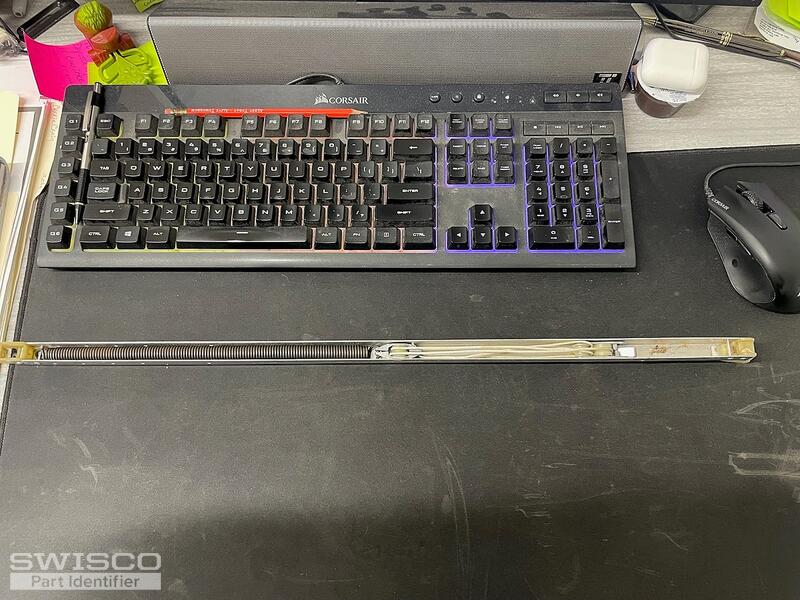

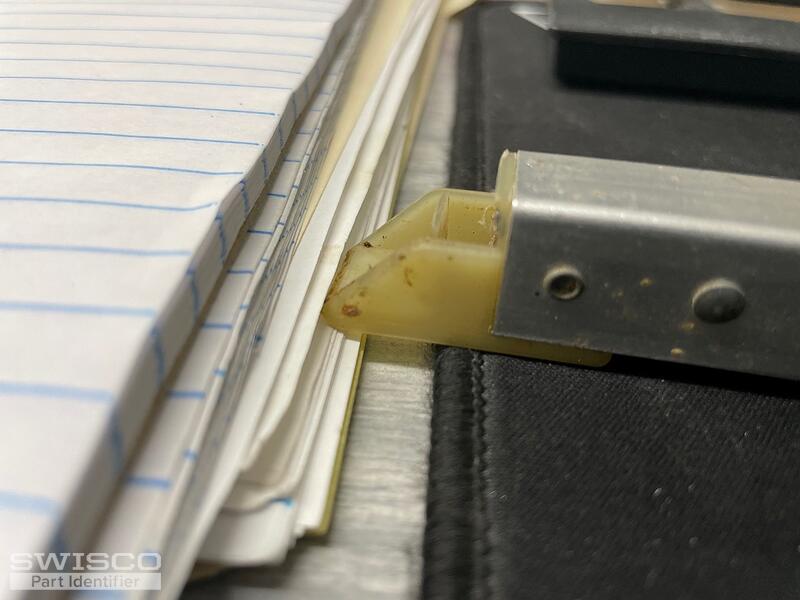

I need one pair of these balancers. Metal part length is 21 15/16"

5 user uploaded images

6 Replies

Jasmine from SWISCO

Aug 22, 2023 4:08 pm

Thanks for writing in! It looks like you have either the S351-22 with a 1" shoe or the S390-22 with a 1-1/8" shoe. The length of these balances is 22".

To determine which series is needed for your window, look over the dimensions from the diagram below to confirm the depth of your bottom shoe.

You'll need to select the 2140 stamp for a sash weighing 15 to 23lbs. Although, you may want to be sure to confirm the sash weight.

Comparison of the S351 and S390 balance shoes.

Distributor from Fredericksburg Texas

Sep 13, 2023 10:51 am

Is there a way to tell what sash guide i would need for this window based on the balancer we ordered? I realized after the fact that both sash guides were broken so the new balancers were the end of the project.

Jasmine from SWISCO

Sep 13, 2023 1:00 pm

We have a large selection of top sash guides and a few of them are compatible with the balances we have however, that does not mean they are compatible with the sash.

To identify the correct top sash guide replacement, I'll need to see a photo of the hardware, preferably removed from the sash. At the very least, I'll need to see it from a front profile view. Although, having it removed will help to better compare the dimensions, once we've narrowed down the possible replacement.

Distributor from Fredericksburg Texas

Sep 14, 2023 10:35 am

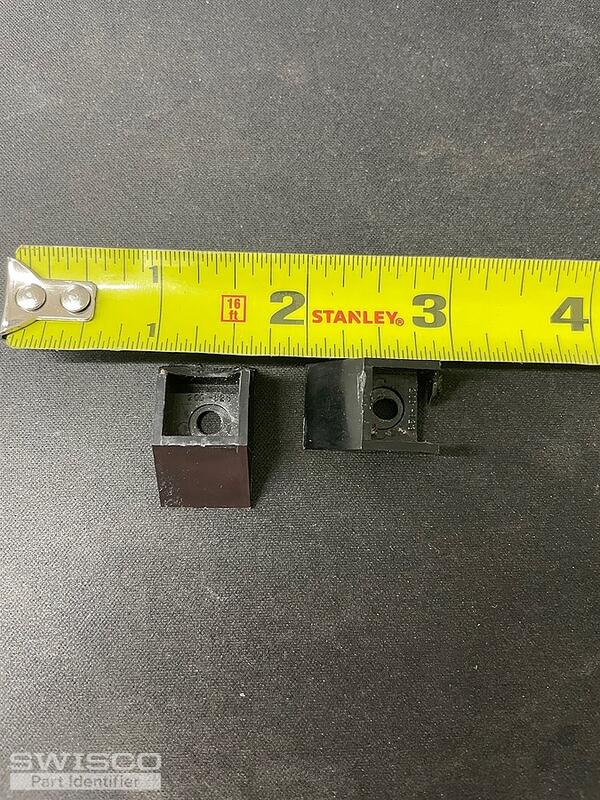

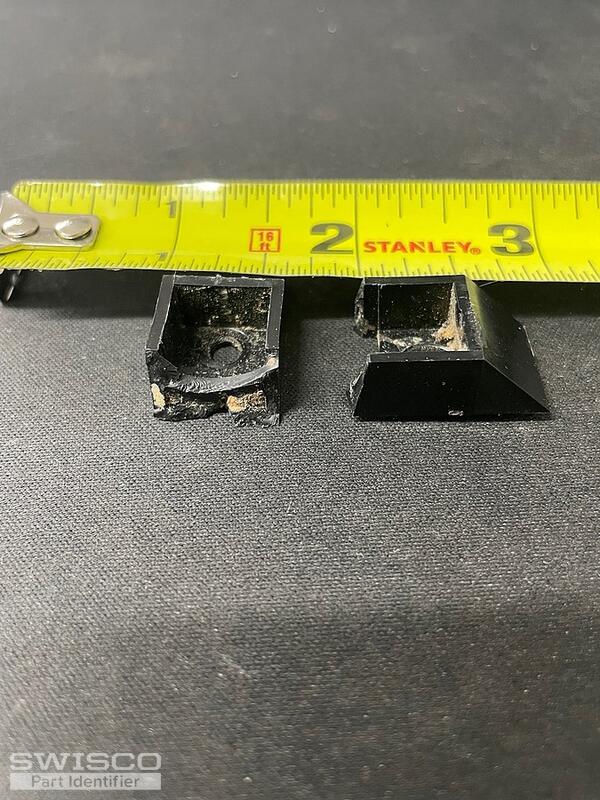

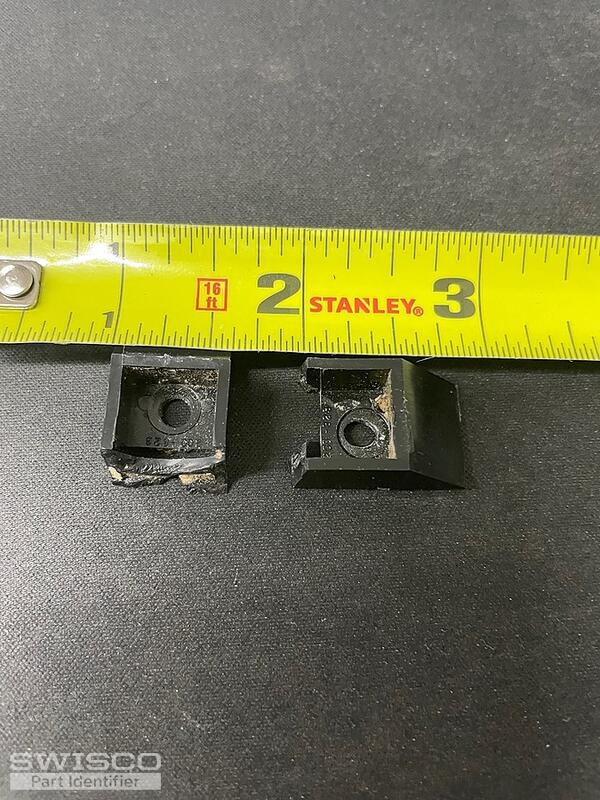

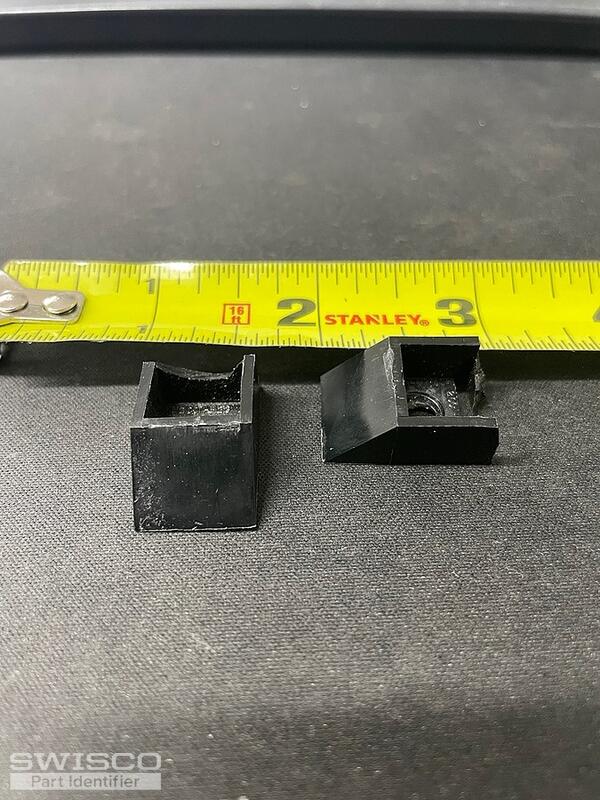

Here are some photos of what is left of the sash guides with a tape measure for scale.

let me know if you need anything else to figure out what part i need. THank you in advance

4 user uploaded images

Jasmine from SWISCO

Sep 14, 2023 2:08 pm

I'm sorry to say I would not be able to identify the top sash guide with on the bottom half of the guide. Without the top, I won't know what shape the guides need to be and you be able to accurately confirm the dimensions.

Is there an undamaged version of this top sash guide that you can provide a photo of? If not, are you able to locate the other half of the top sash guide?

Please let me know if you have any questions.
