simonton window balance

A quick learner from Gulf shores AL says:
I am in need of some replacement balances for our Simonton windows for our condo in Gulf Shores AL
Thumbnail of the uploaded file named IMG_1304.jpg
Thumbnail of the uploaded file named IMG_1305.jpg
Thumbnail of the uploaded file named IMG_1306.jpg

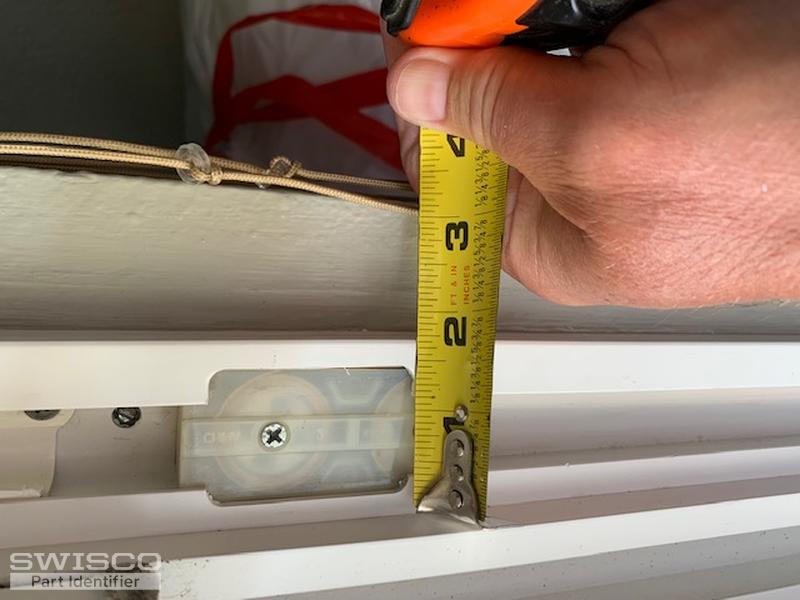

Thumbnail of the uploaded file named IMG_1307.jpg

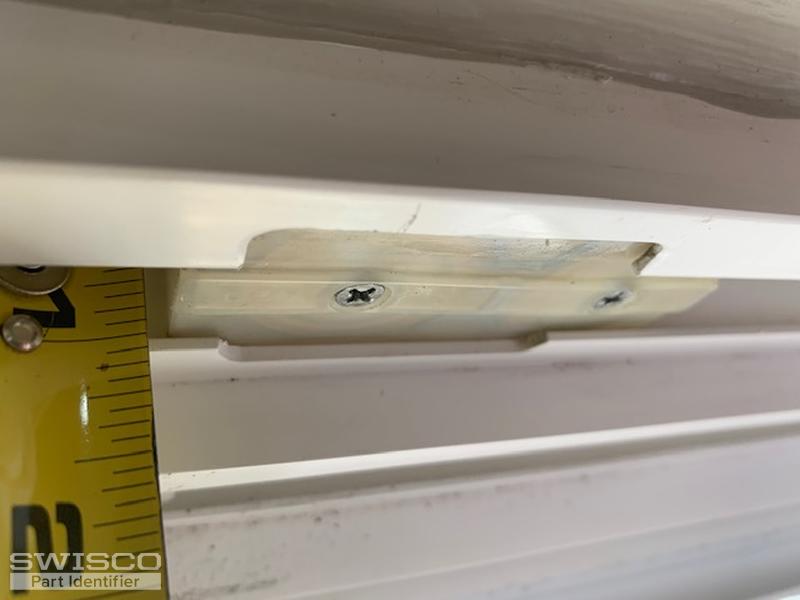

Thumbnail of the uploaded file named IMG_1308.jpg
Profile picture of Tom
Tom from SWISCO responded:

Based on your photos, I recommend the 15-192 pivot shoe, Series 170 and Series 171 coil springs, and finally the 15-156 cover and 15-157 drum. The video below will explain how all these pieces fit together.

SWISCO S170 and S171 Coil Balance Assembly
SWISCO S170 and S171 Coil Balance Assembly
VIDEO
WATCH >
How to remove window pivot shoes
How to remove window pivot shoes
VIDEO
WATCH >
Anatomy of a tilt window
Anatomy of a tilt window
VIDEO
WATCH >
