simonton window balance mystery

A handy person from San Francisco says:
I was attempting to repair a Simonton vinyl single hung window. The right side balance had come loose and was sitting in the window channel. The window still worked but was not smooth. I removed the sash and took out the balance. The balance appeared to be broken and a search for a replacement led me to your website. I am sending pictures of the balance and hope you can supply me with the right one. The mystery is how the balance worked in the first place. There is no balance stop in the window channel. It is completely smooth (both sides). There is nothing to hold the balance in place. I couldn't even put the old balance back in because there there was nothing there to hold it in place. Any information you could give me would be greatly appreciated .

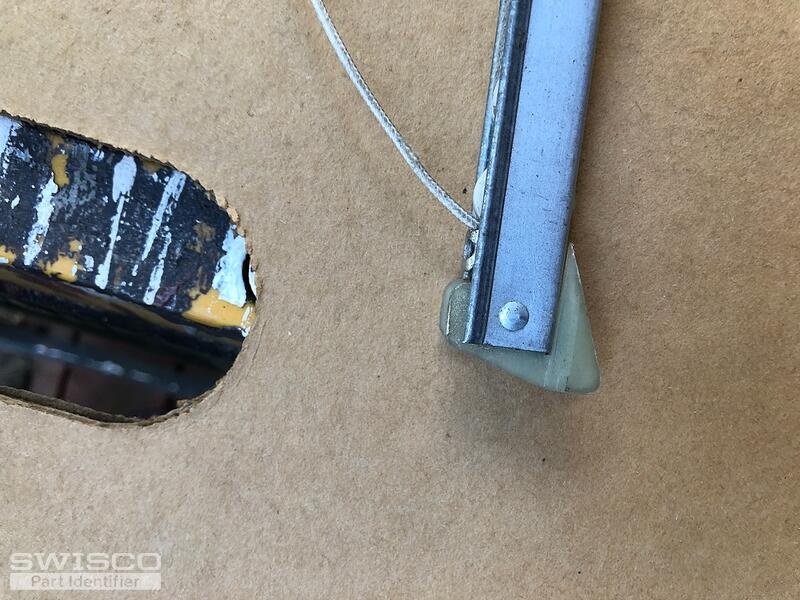

Thumbnail of the uploaded file named IMG_0598 2.JPG

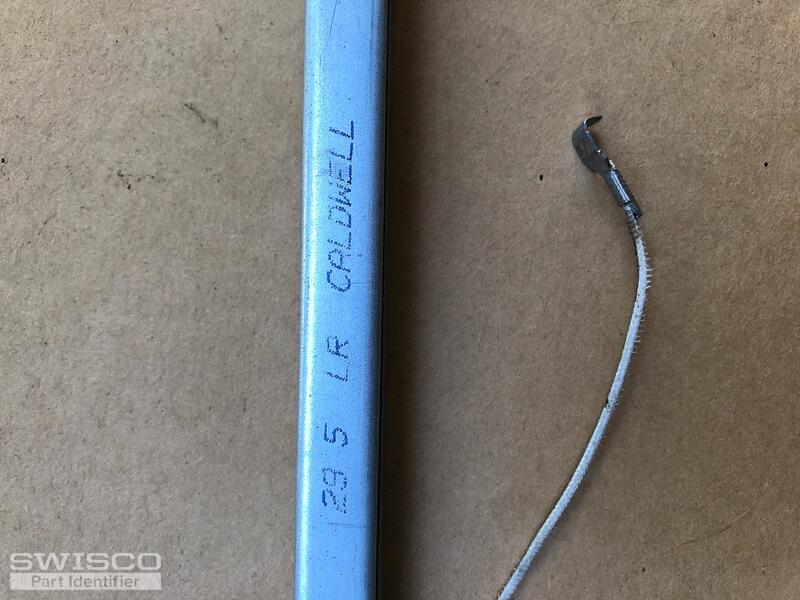

Thumbnail of the uploaded file named IMG_0601.JPG

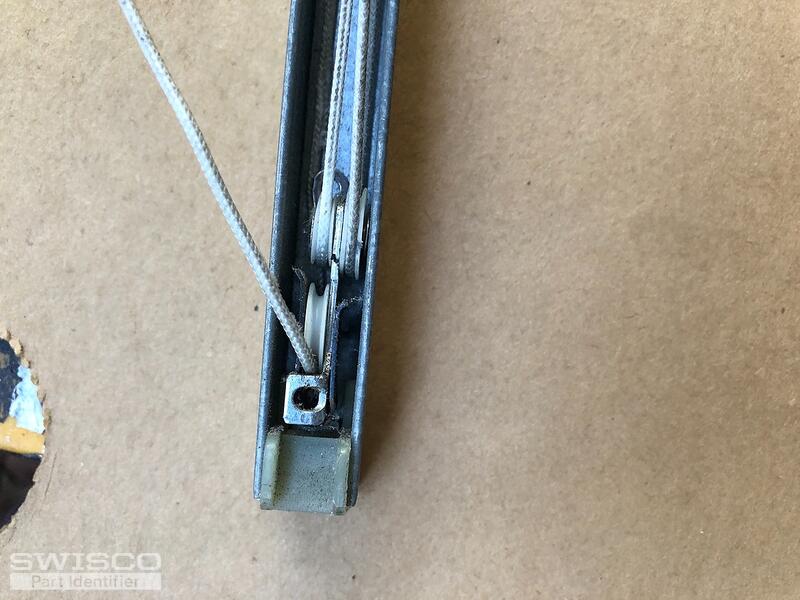

Thumbnail of the uploaded file named IMG_0602.JPG

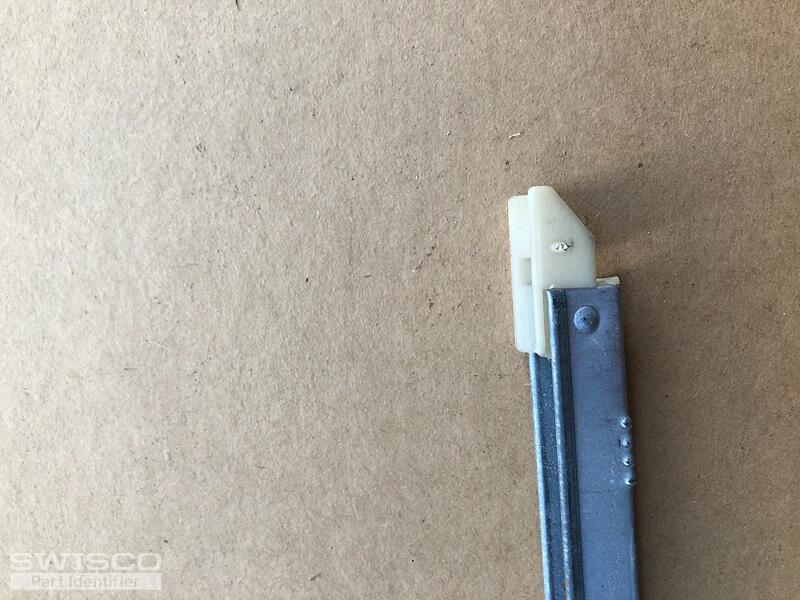

Thumbnail of the uploaded file named IMG_0603.JPG

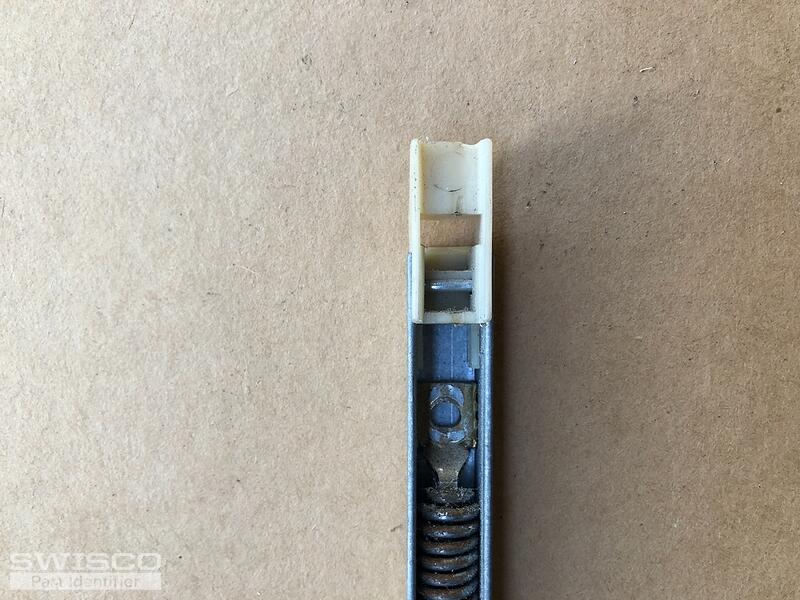

Thumbnail of the uploaded file named IMG_0606 2.JPG
Profile picture of Tom
Tom from SWISCO responded:

Thanks for your photos. Based on what I see here, you have either our S351-30 or S390-30, depending on the depth of the bottom shoe. That's the only difference between them. I recommend measuring your shoe and referring to our dimensions to confirm the best match.

Comparison of the S351 and S390 balance shoes.
Comparison of the S351 and S390 balance shoes.
