simonton window spring and pivot

Question

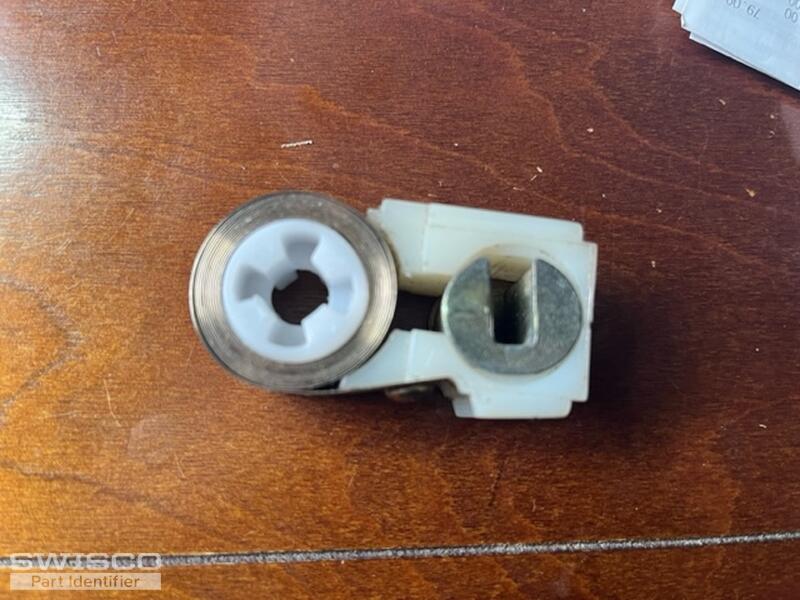

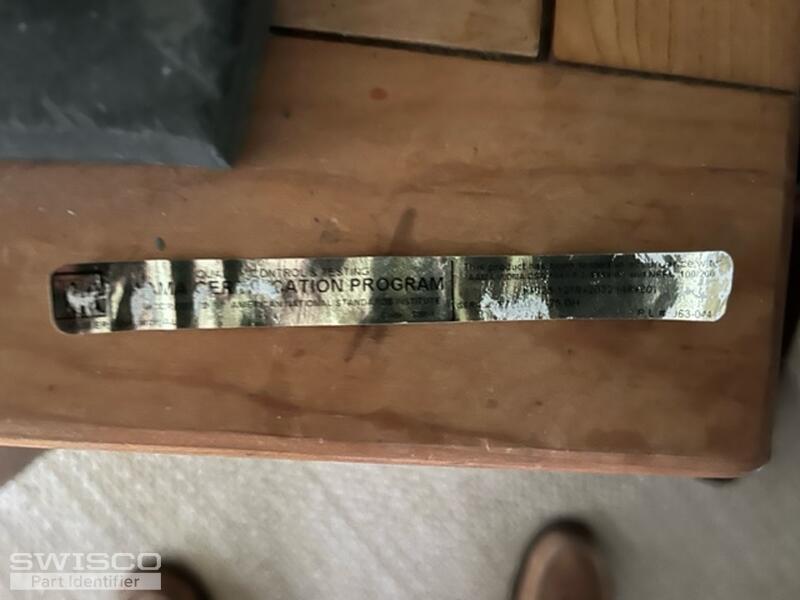

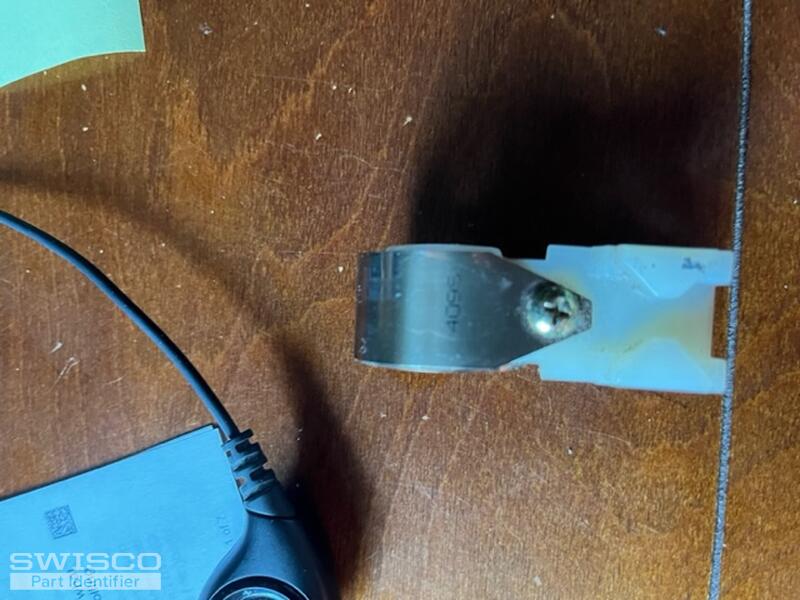

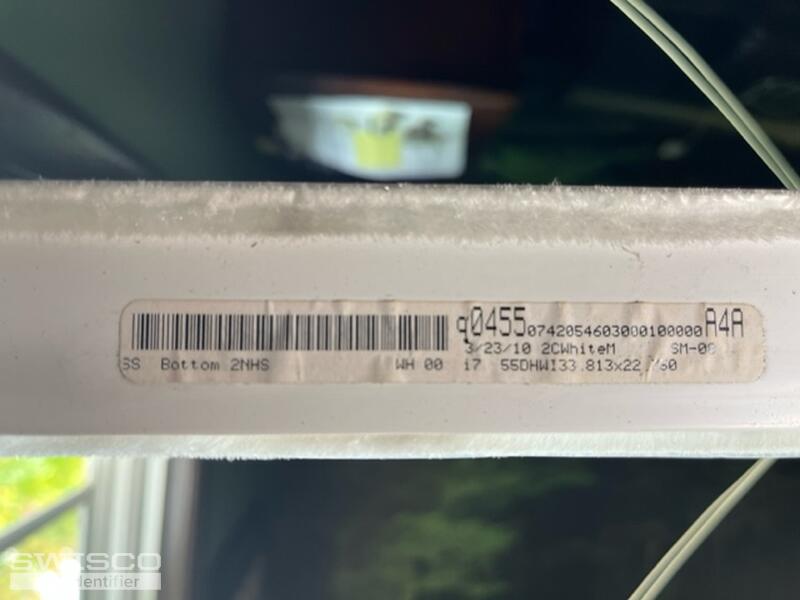

Hello!  Thank you very much for your help.  We had all of our windows replaced with Simonton windows in 2010.  The attached pictures are of the labels from the windows and two views of an intact spring.  In many of the assemblies, the plastic above the cam opposite the coil has broken and the windows no longer pivot properly and are difficult to open and close. I have made temporary repairs with duct tape (of course!) and it works but that only lasts so long.  I am looking to by replacements.  My local Simonton dealer looked at me like I had two heads.  Do you carry these or know where I can get them on line?  Thanks again for your help and have a great day!

Tom · Accepted Answer

Thanks for reaching out to us! Simonton no longer make this coil balance assembly, but we have two possible solutions for you to consider.

The first is our 15-192 pivot shoe, along with our Series 170 coil spring (and other parts related to its store page). This is a Certainteed brand part but I have had customers in the past tell me that they got it to work after grinding down the front of the face, which sticks out just a little too far for this window.

The other option is a more modern replacement that I think works just as well, if not better, since it's not prone to breaking in half like your old one is. The video below will go into more detail. This will explain exactly what parts you need to buy and how you can install them in your window. Just note that you will need the exact weight of your sash on hand in order to calculate the proper spring strength. You want to divide that weight by how many springs support the sash, then pick accordingly.
