single hung non tilt windows

Start a new Discussion

Home Owner from Port St Lucie Fl

Feb 3, 2021 8:12 pm

need 6 1/2" channels 30 " length
shoe is 1"

3 user uploaded images

7 Replies

Home Owner from Port St Lucie Fl

Feb 3, 2021 8:14 pm

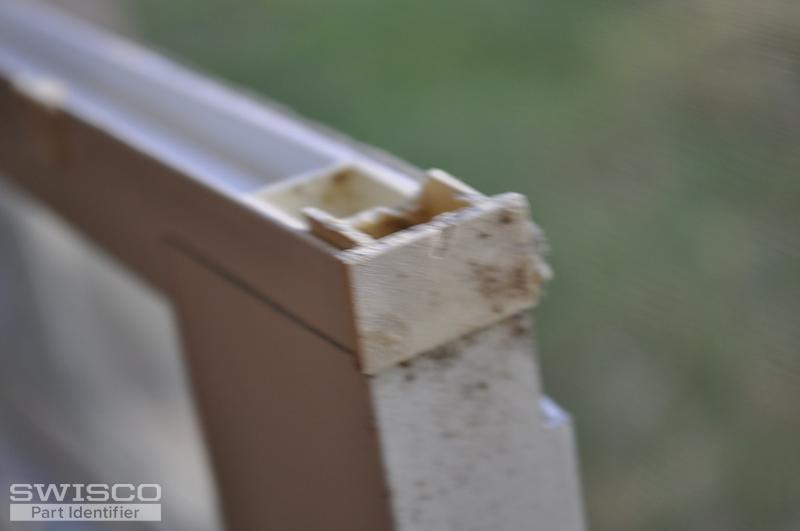

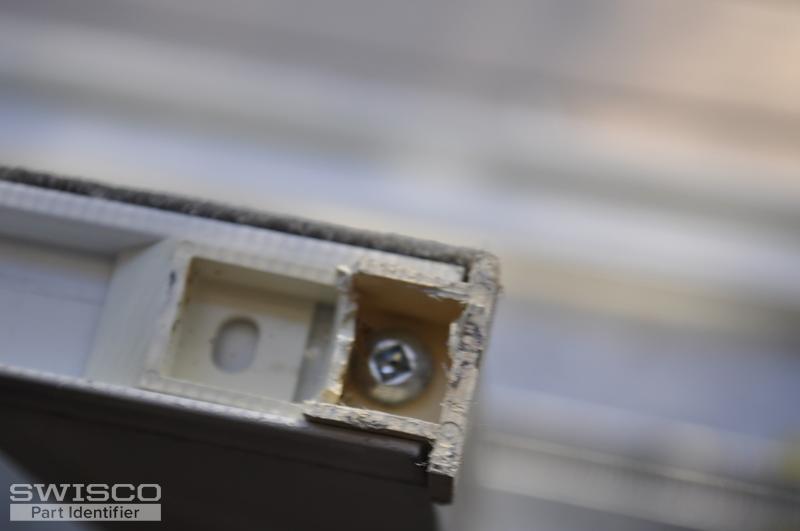

also need 5 left and 5 right sash clips

2 user uploaded images

Bob from SWISCO

Feb 4, 2021 12:30 pm

The Top Sash Guide looks like it might be an 18-009 or 18-166. Compare all the dimensions we list to see if either of these would work for you.

For the channel balances, can you show me a picture of the top fitting as well? Can you also show any stamp code on the metal channel? From there I should be able to identify what you need.

Home Owner from Port St Lucie Fl

Feb 4, 2021 2:34 pm

18-166 is the top sash guide

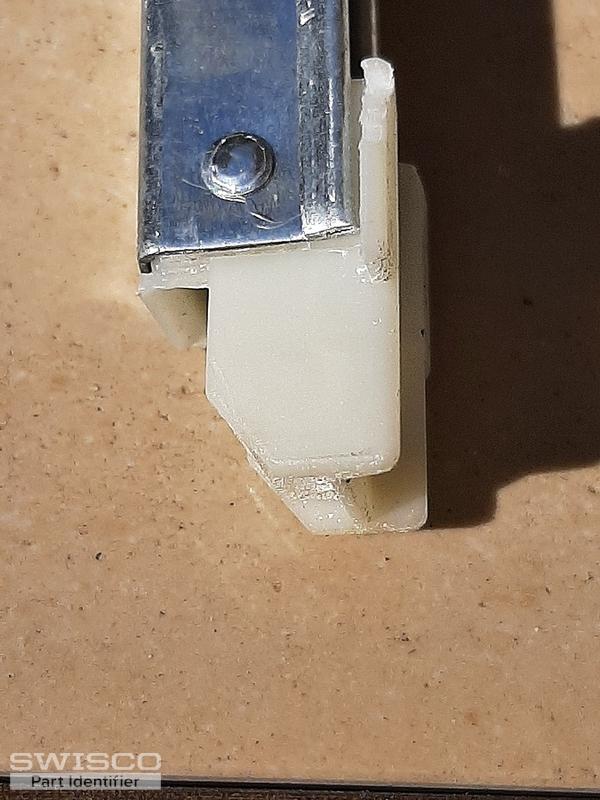

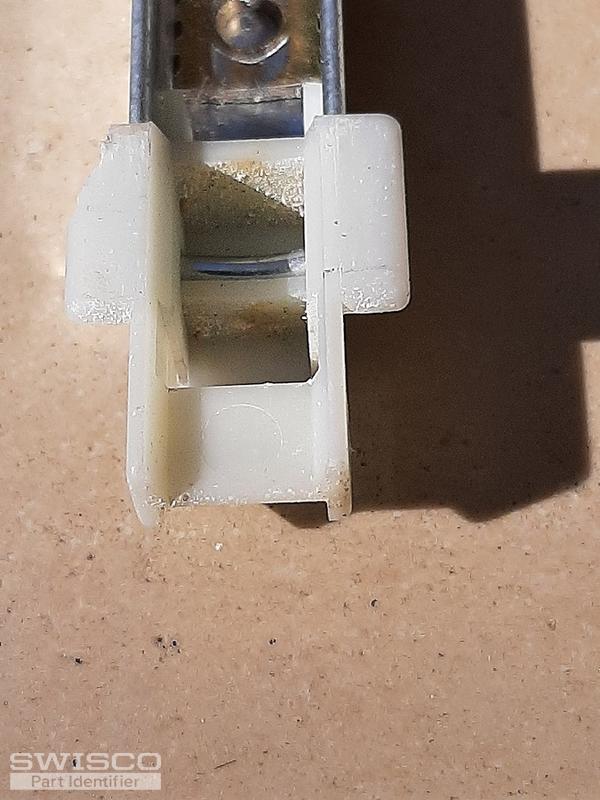

the channels have the following markings.
29 9 FW CMC 4
Hopefully this helps.

2 user uploaded images

Casey from SWISCO

Feb 5, 2021 11:14 am

Hello,

Since you mentioned that your balance shoe is 1" deep, take a look and compare our S380-30 channel balance to yours. Your 29 9 stamp is part of an outdated weight system, so you'll also need to weigh your window sash and follow the chart under the balance product description to choose the correct strength option. Thank you!

Home Owner from Port St Lucie Fl

Feb 7, 2021 8:09 am

top sash weighs 29 pounds

Casey from SWISCO

Feb 9, 2021 1:01 pm

A 29-pound sash would be supported by the S380-30 with a 2950 strength option. Thank you!
