Window balance 32 4 GP Caldwell

Quick Learner from Seattle
Need to replace one balance--- might like to order 4 ---one string broke---planning ahead for the others.

Markings: 32 4 GP Caldwell
Balance is 33 inches long
Window is 32 lbs. (the bottom window panel is 45.5 in wide and 35.5 in high--big floor to ceiling window)

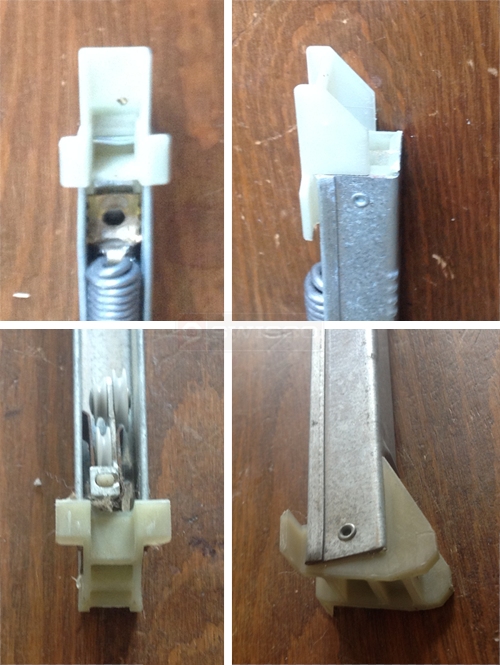

Channel balance
4 Replies
Tom
Tom from SWISCO
SWISCO
Expert
I believe you may need either our Series 380 or Series 385. You will need to measure your balance and based on that will determine which of these is the balance you will choose.
Quick Learner from Seattle
Not clear from your email but after reading through more info on your website I think I need the 385 series. The shoe is 1 1/16 or 1 3/32 inches deep which means a 15-004 shoe which is the 385 series?
So a 33 inch balance in the 385 series?
Tom
Tom from SWISCO
SWISCO
Expert
Yes, if that information is accurate, you should be dealing with an S385-33 with a 3240 stamp option.
