single hung window channel balance

A quick learner from Arizona says:
I need to replace a broken channel balance but am not entirely sure which is the correct replacement part. Thank you for your help!

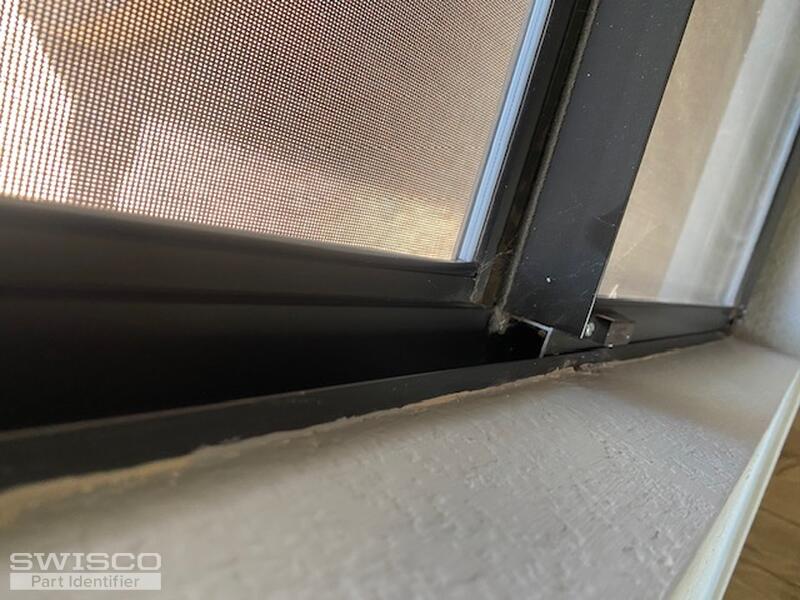

Thumbnail of the uploaded file named IMG_0104.jpg

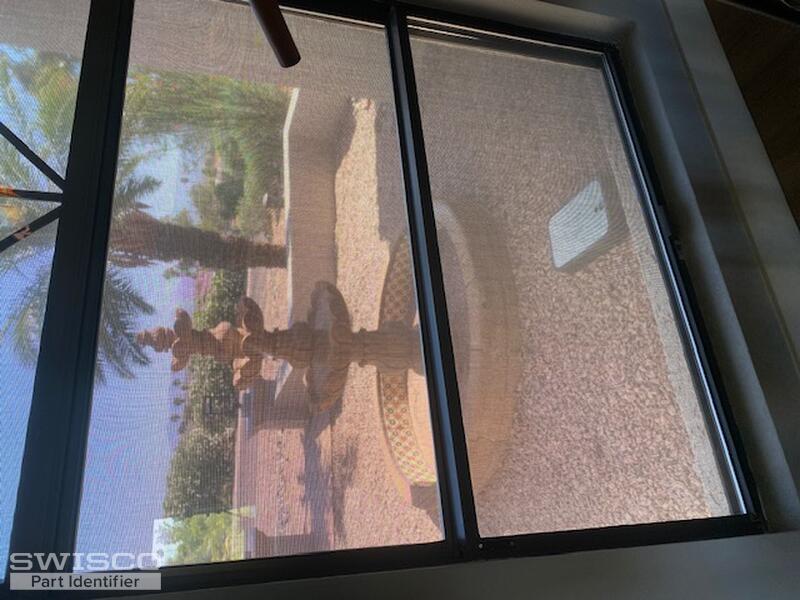

Thumbnail of the uploaded file named IMG_0103.jpg

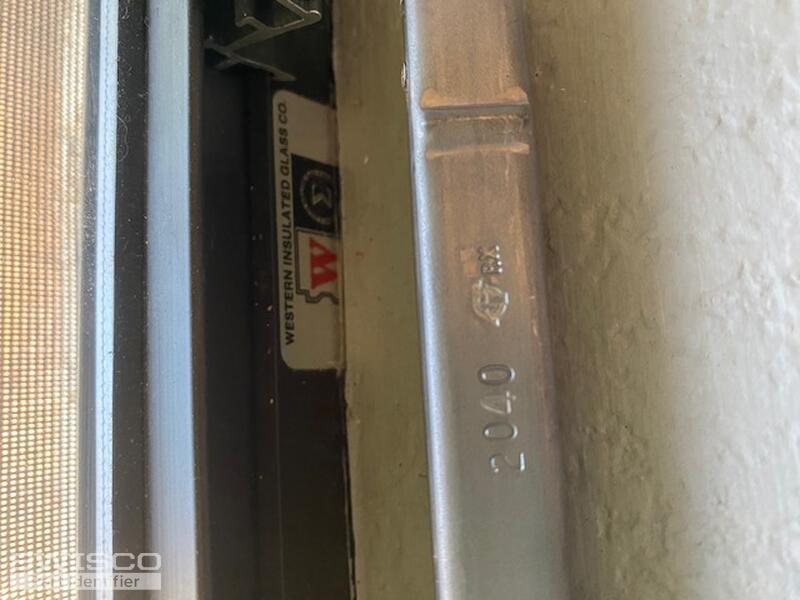

Thumbnail of the uploaded file named IMG_0106.jpg
Profile picture of Tom
Tom from SWISCO responded:

I'm not sure what you have, unfortunately. We have dozens of different balances with that stamp. It's not a product code or anything, it just indicates the strength of the spring.

In order to figure out what Series this is, I need you to remove an undamaged version of this balance from the window and show me clear pictures of the top and bottom nylon fittings. I will also need to know the dimensions of these fittings.

A quick learner from Arizona says:
So after looking at the balance itself, that isn't what is broken. I am missing the top piece that holds it inside the window track. Here are some pictures of the top and bottom of the channel.
Thanks!

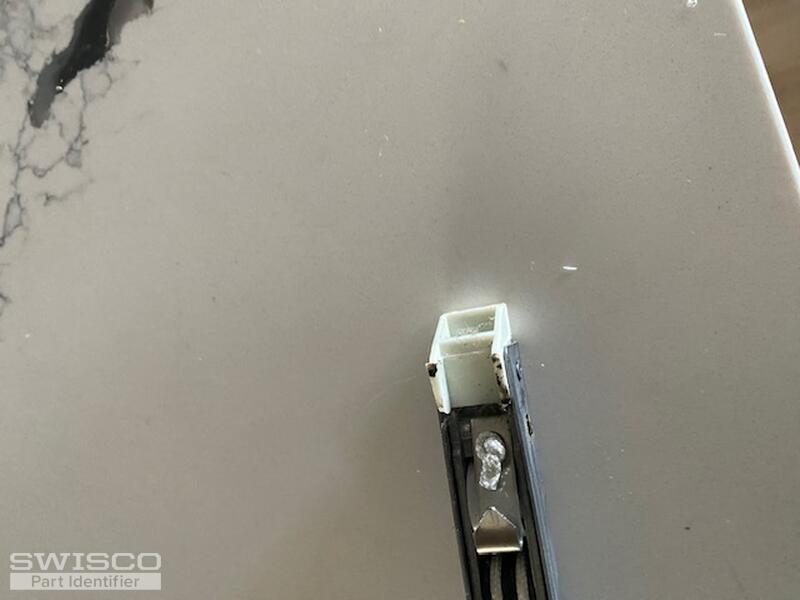

Thumbnail of the uploaded file named IMG_0109.jpg

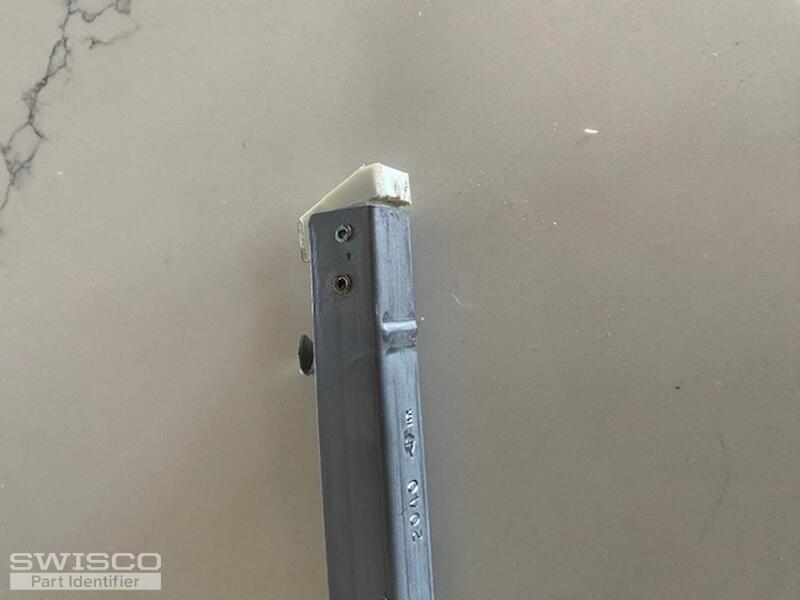

Thumbnail of the uploaded file named IMG_0110.jpg

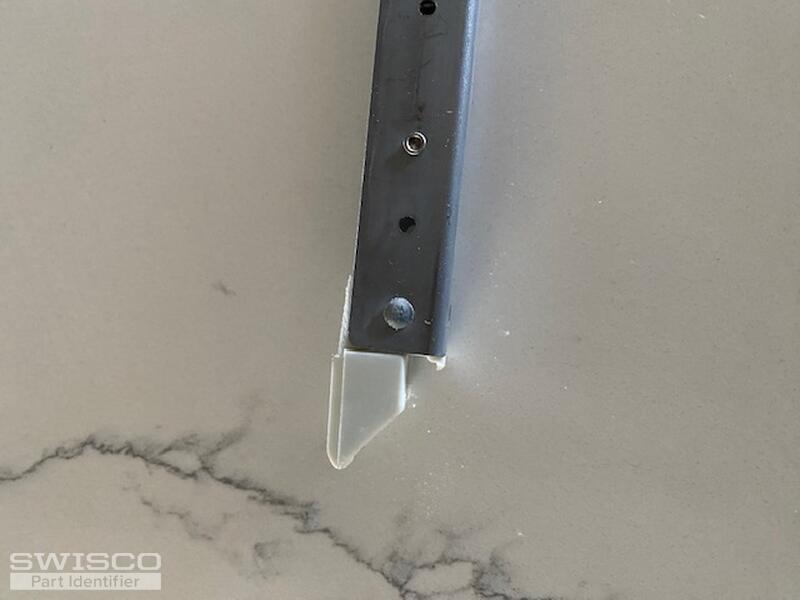

Thumbnail of the uploaded file named IMG_0107.jpg

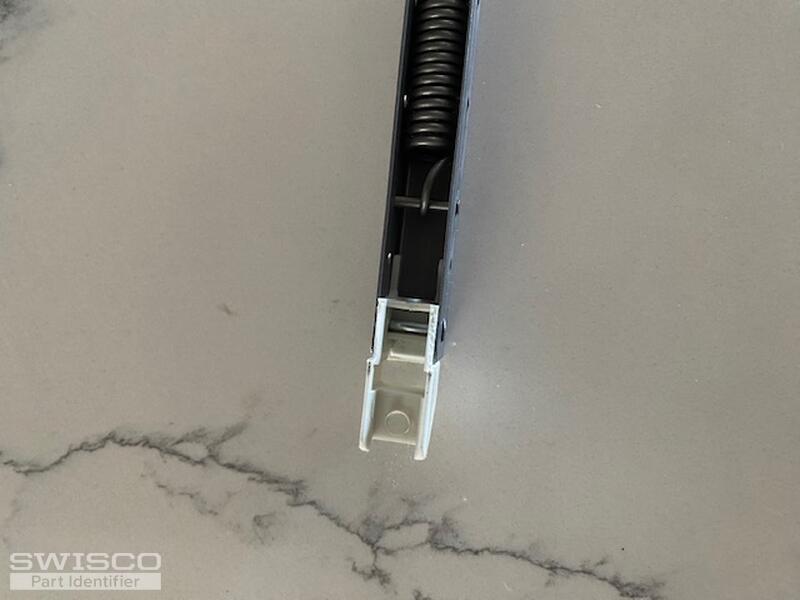

Thumbnail of the uploaded file named IMG_0108.jpg
Profile picture of Tom
Tom from SWISCO responded:

Thanks for your photos. Based on what I see here, you have either our S351-21 or S390-21, depending on the depth of the bottom shoe. That's the only difference between them. I recommend measuring your shoe and referring to our dimensions to confirm the best match. You will need an undamaged version of this balance to use as a reference.

As for the piece that holds it in place, it sounds like you're referring to the top sash guide. We should be bale to help with that, as well, but I need to see one removed and in undamaged condition. I specifically need to see it from the front and side (like a mug shot).

Comparison of the S351 and S390 balance shoes.
Comparison of the S351 and S390 balance shoes.
