single hung window channel balance

Question

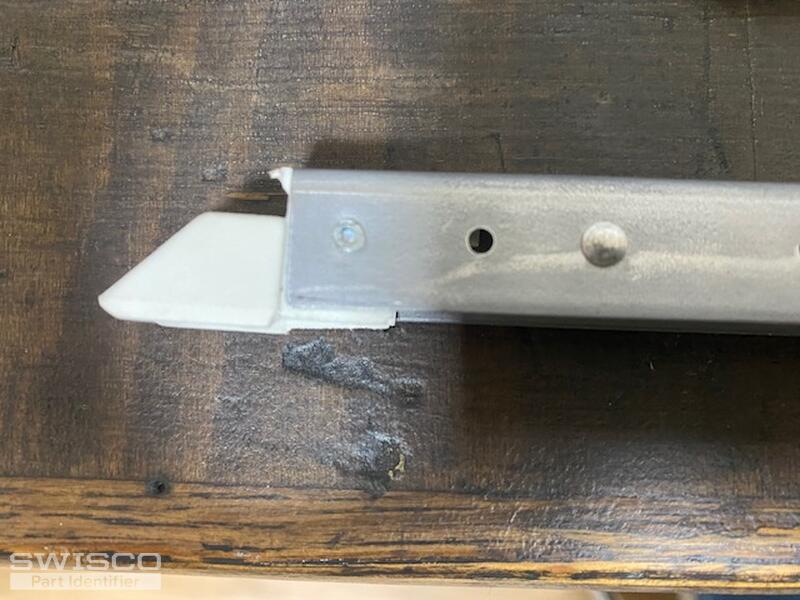

the bottom is broken and I cannot get the other side removed. Only marking I can find on it is 2040, it's for a single hung window and the existing channel is 21" long. Can you identify the replacement I would need from this description and the pictures? Thank you!

Jasmine · Accepted Answer

Hello,

Thanks for posting! Your channel balances look a lot like either the S351-21 with a 1" shoe or the S390-21 with a 1-1/8" Shoe. To determine which of these is the right replacement, carefully compare the measurement from the depth of your bottom shoe.

You'll need to select the 2040 stamp option.

Comparison of the S351 and S390 balance shoes.
