single hung window parts - think window mfg is Ply Gem

Question

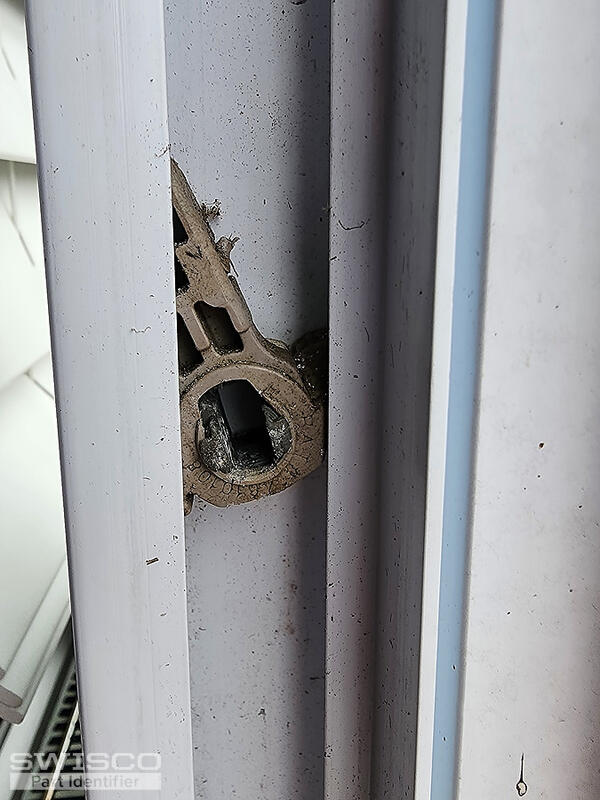

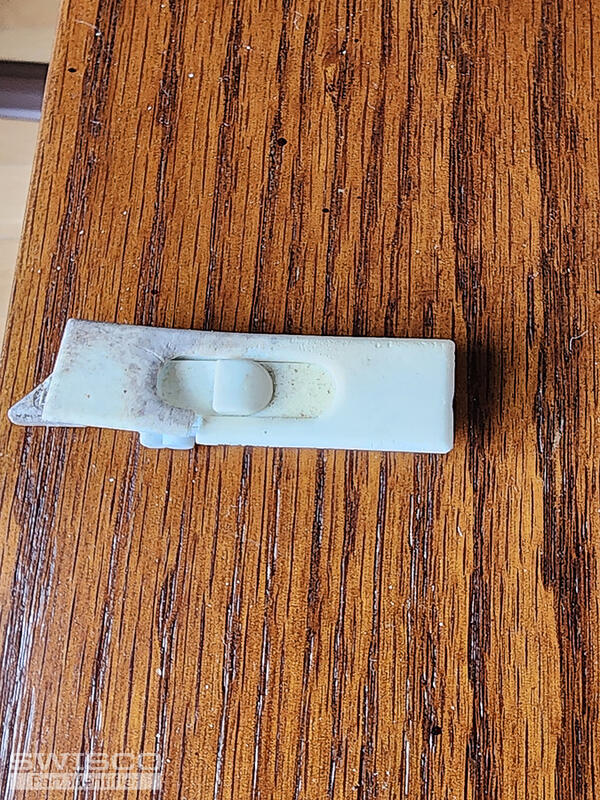

My single hung windows need tilt out latches and a piece that goes on the end of the sash balance channel. The sash balance channel is 33" x 1/2" x 1/2" all OD. The channel is at the top of the window. I also need some hints as to how the balance part is inserted into the window channel.

Thanks
Ken

Bob · Accepted Answer

Hey Ken. I believe these tilt latches might be our 26-393B pair. Please compare to the dimensions and design shown below to confirm this pair matches what you need.

Dimensions for 26-393B

Alternate view of 26-393B

We believe the channel balance is our S795-33. Please make sure your balance attaches to the top of the window track in the same way this replacement does, via a screw clip. If it uses a hook that goes into a hole in the track instead, let us know. To know what stamp option to choose, look for a stamp on the metal channel. Let us know if you have further questions or concerns.
