single wheel for sliding glass door

A home owner from Russell Springs, KY says:
September 3, 2019

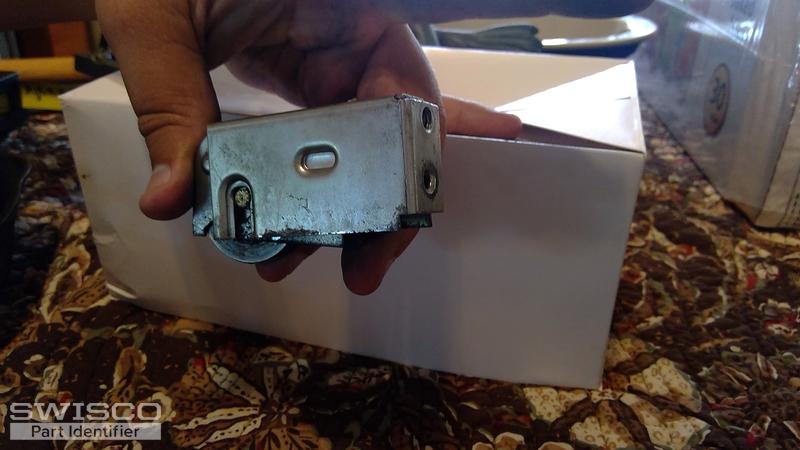

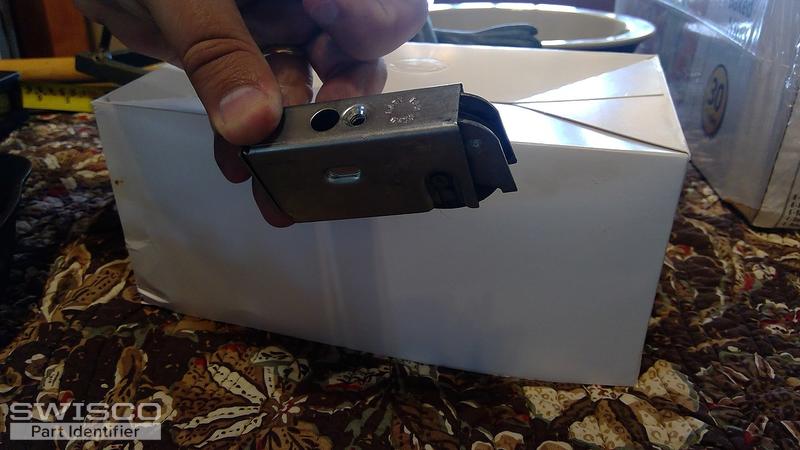

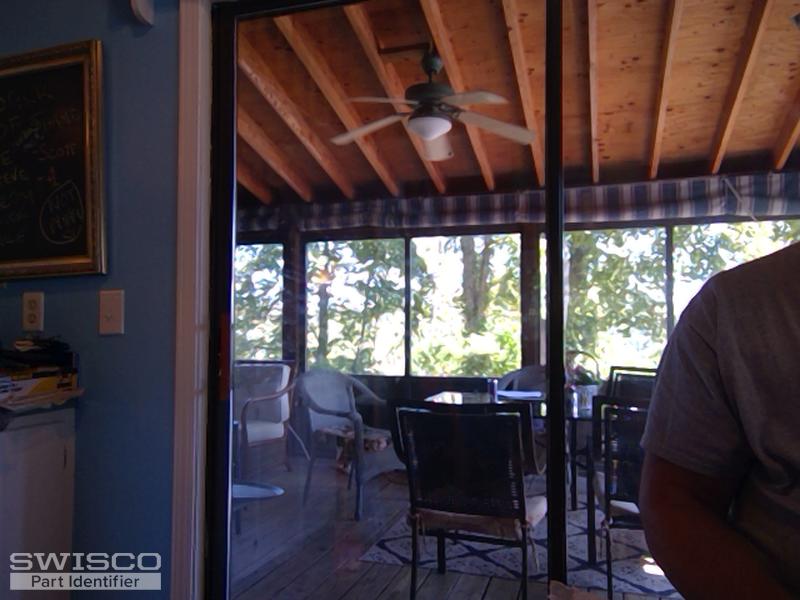

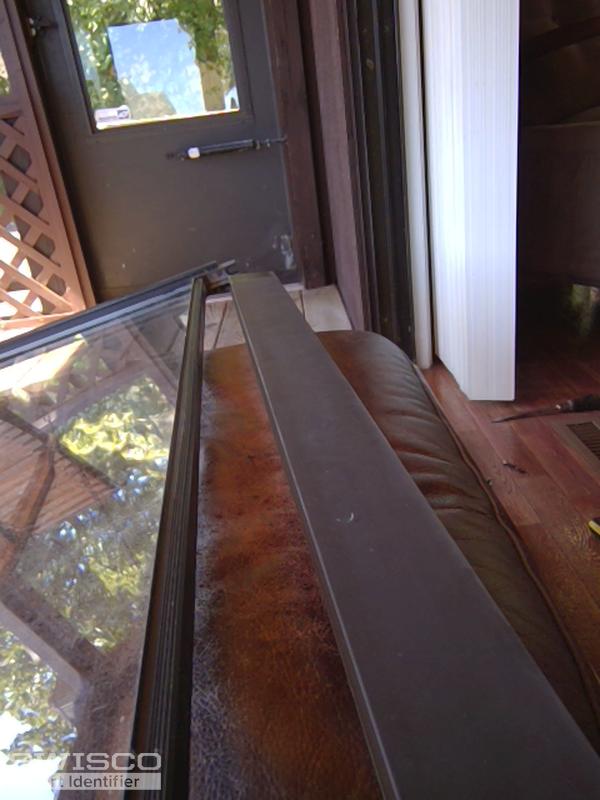

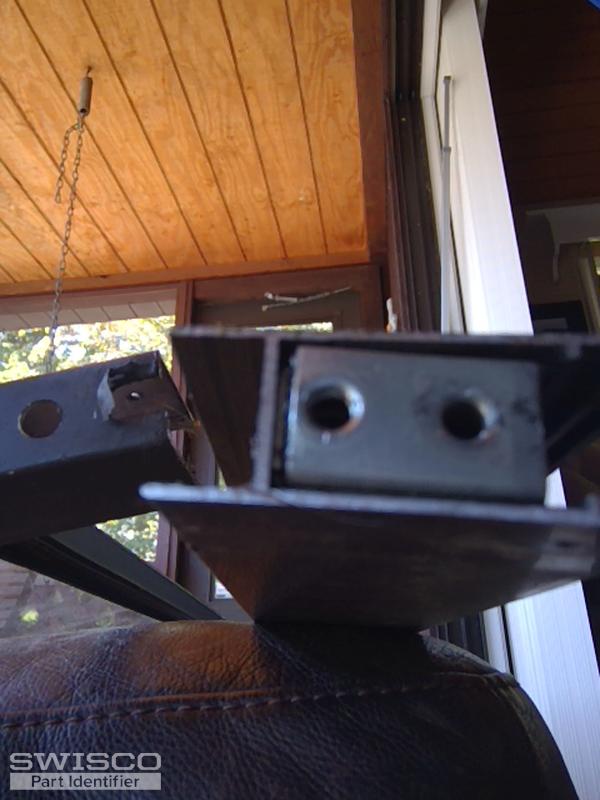

I didn't see an exact replacement part in the inventory list. Any help would be appreciated. You can see the bottom panel was removed to get to the screw at the top that holds it in place. The back side has a retention screw as well right above the adjustment screw. These are older glass sliding doors (mid 1980s vintage I'm guessing by the age of the building.

Wheel is 1. 5 in diameter. The frame measures:

Height 1 3/8 in , width 3/4 in, length 2 5/8 in

Thumbnail of the uploaded file named WIN_20190903_14_49_44_Pro (2).jpg
Thumbnail of the uploaded file named WIN_20190903_14_50_06_Pro (2).jpg
Thumbnail of the uploaded file named webcam-9/3/2019, 2:56:07 PM.png
Thumbnail of the uploaded file named webcam-9/3/2019, 2:57:04 PM.png
Thumbnail of the uploaded file named webcam-9/3/2019, 2:57:47 PM.png
Profile picture of Tom
Tom from SWISCO responded:
September 10, 2019

Hello! How about our 81-278? This has a height of 1-3/8", a width of 3/4", and a wheel diameter of 1-1/2". Let me know what you think.
Patio Roller Assembly, 1-1/2" Steel Ball Bearing
Patio Roller Assembly, 1-1/2" Steel Ball Bearing
81-278
$7.97
