slide bolts and corner for storm windows

Question

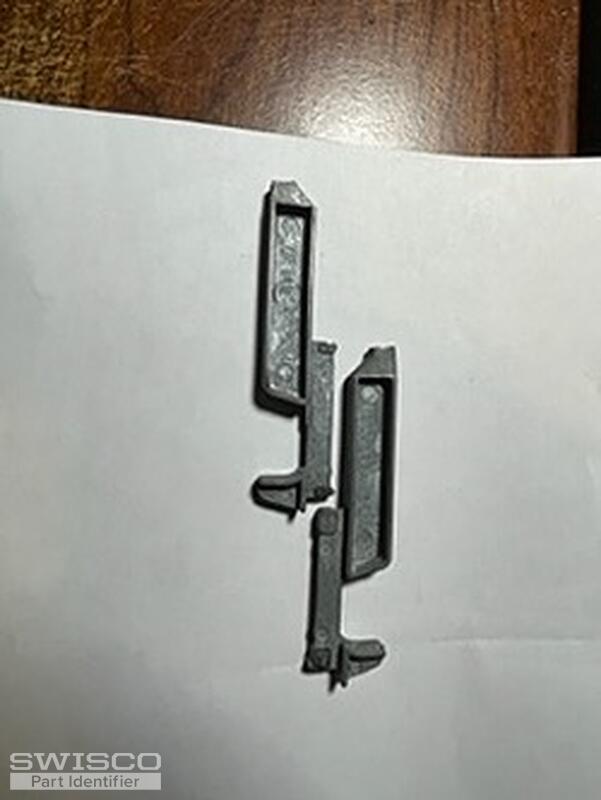

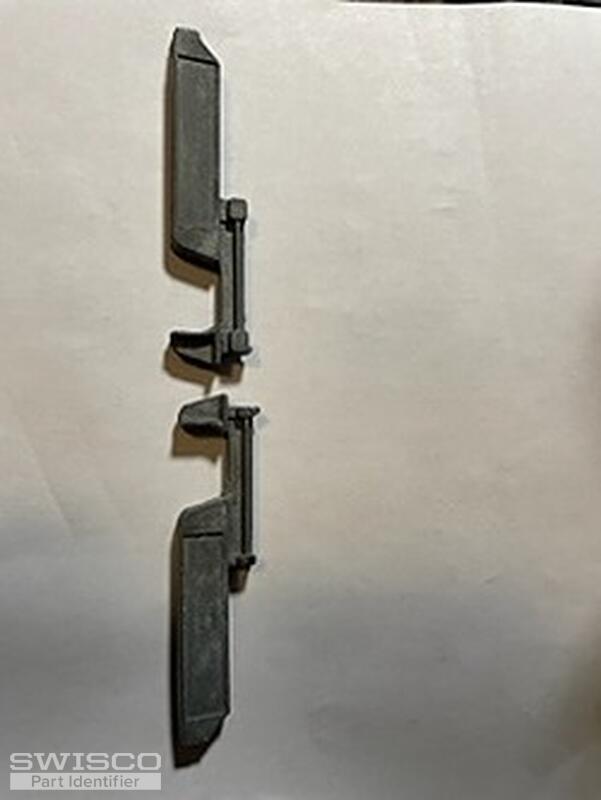

Dear Swisco, I need some parts to repair old storm windows. Image 8726 shows a right and left slide bolt to be replaced. If you have them I would like three right and three left. Measurements are: total length= 3 5/8 in; Body Height=3/4 in, Body depth thickness = 7/32, Nose length= 1 in, Nose Height = 7/16, Nose Thickness 3/16. Image 8723 is a picture of the slide bolt installed- notice the nose is long. Image 8728 shows the other side of the bolts.

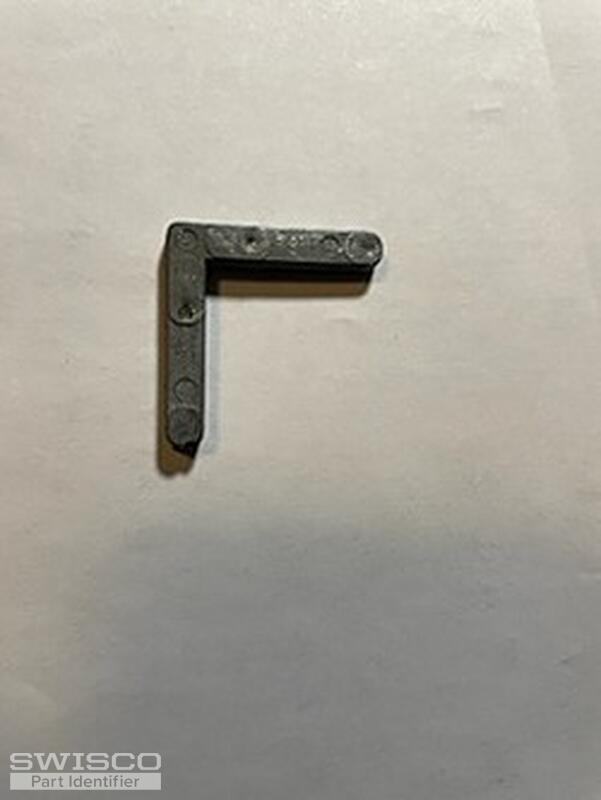

Image 8727 shows the corner I need which is 1 and 3/8 in times 1 and 3/8 in by 3/16 thick. four of these if you have them.

Dave Sr. · Accepted Answer

Hello,

Unfortunately, we don't carry your exact parts and they are becoming hard to come by with the advent of the vinyl replacement window with insulated glass. Take a look at the 91-158, 91-159, and 91-142 latch pair. Both of these types have a height of around 3/4".

As for the corner key, we have a few options that measure 3/16 X 3/16". We offer the self-locking 95-002 and the 95-176 aluminum corner. We also have the 95-140 top tilt that is self-locking. Take a look at all of these parts to see which ones would fit best. Thanks for posting.
