sliding door lock

Handy Person from North Wales, PA

Feb 17, 2021 11:21 am

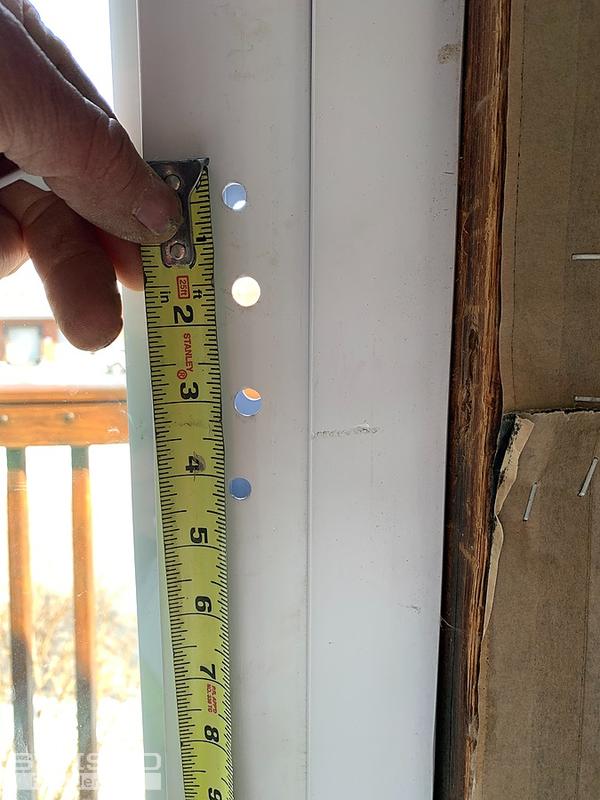

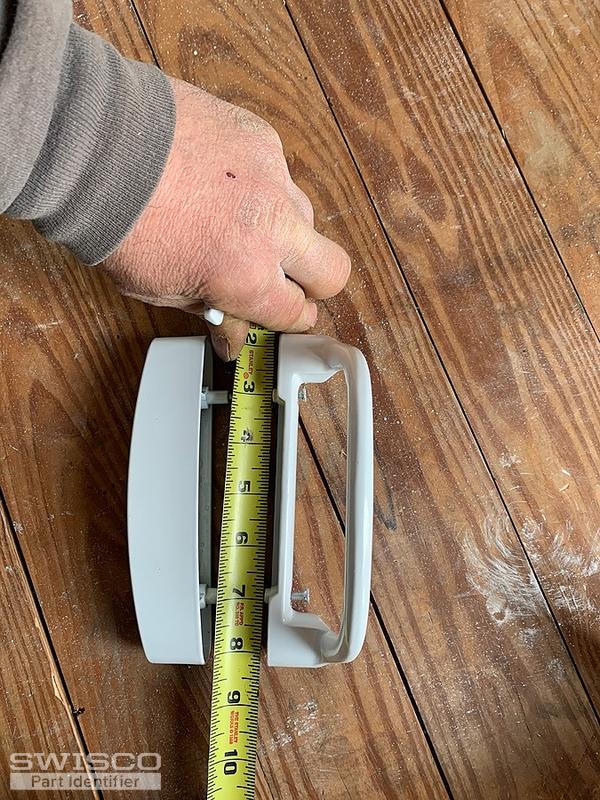

Can you please help me find a lock that will fit this sliding door? I've attached images here to show the door size we are dealing with. Thanks in advance for your help and guidance.

5 user uploaded images

6 Replies

Tom from SWISCO

Feb 18, 2021 12:57 pm

Sure, start by looking at our 82-218 mortise. This may be just what you were looking for.

Handy Person from North Wales, PA

Feb 18, 2021 1:09 pm

OK, that's great. What about a handle and outside lock that will work with this mortise and my sliding door? Thanks.

Tom from SWISCO

Feb 18, 2021 2:13 pm

Of course. I can't make out your exact hole center spacing from the way you're holding your tape measure, but as long as it's 3-15/16" then you can use our 82-030 handle set, as well as our 82-310 key lock.

Handy Person from North Wales, PA

Feb 18, 2021 2:33 pm

Thanks for your response. I ended up purchasing the mortise, 82-218 along with a keyed handle set, 82-086. Will that combination work for this sliding door? Yes, the hole spacing is indeed 3-15/16".

Thanks,

Nate

Tom from SWISCO

Feb 19, 2021 8:41 am

There's a chance that it will, but the thing about the 82-086 is that it has a fixed thumb lever, meaning that it can only work in one position and cannot be adjusted. I couldn't tell from your photos what position the thumb lever was in so I didn't want to recommend that product, just to play it safe.
