sliding door locking hardware

A quick learner from rockville md says:
I need the lock parts for a sliding door.
Inscription on glass says:
CTGB Tempered
10 (or 18) CFR 1201 (Symbol looks like H)
SGCC 1022 5/32U

The door is 8ft w x 80in h, the door slider is 47.5 w x 77.5 h,
door handle screws are 4" apart, handle bar is 5.5 "
door end inside screws are 3.75" apart

thank you
Thumbnail of the uploaded file named IMG_20190518_115011166.jpg
Thumbnail of the uploaded file named IMG_20190518_120514349.jpg
Thumbnail of the uploaded file named IMG_20190518_120522360.jpg

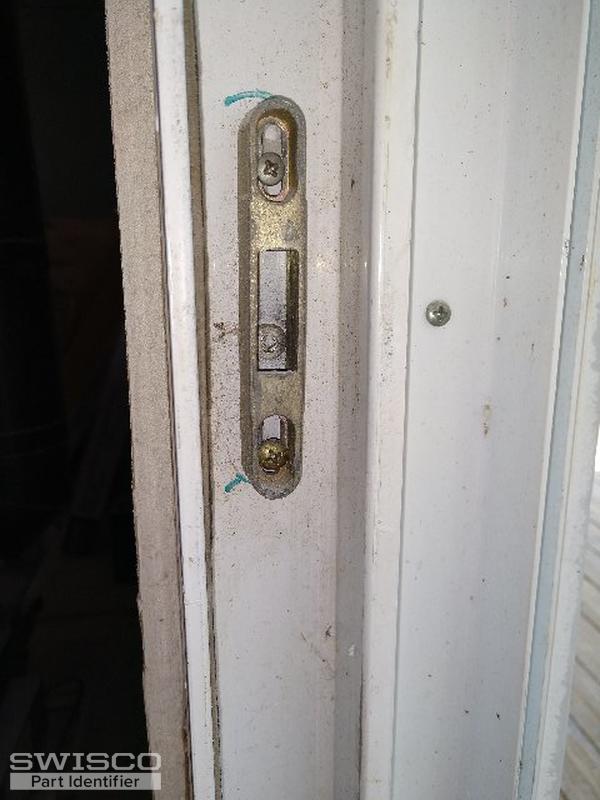

Thumbnail of the uploaded file named IMG_20190518_120917296.jpg
Profile picture of Bob
Bob from SWISCO responded:

Thanks for posting. See our 82-035 Handle Set, as well as our 82-218 Mortise Lock. Look over both parts and see if these are what you need.

A quick learner from Ontario, CA says:
I'm looking to add a lock and latch to my slider. The existing handle doesn't appear to be the original hardware for the door.
The latch I installed lines up with the original holes, but the lock is not in the center. The handles have the lock in the center.

Latch screw holes are 3-11/16" apart

Handle screw holes are 4-15/16 apart

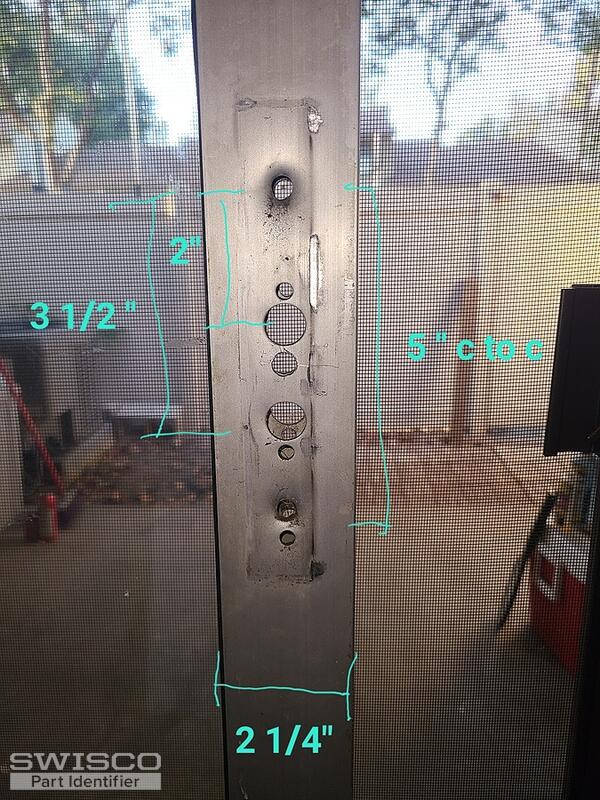

The screw holes on the stile are 5" apart and 2" from screw hole to lock hole.

Do you know what handle I can use to make this work?

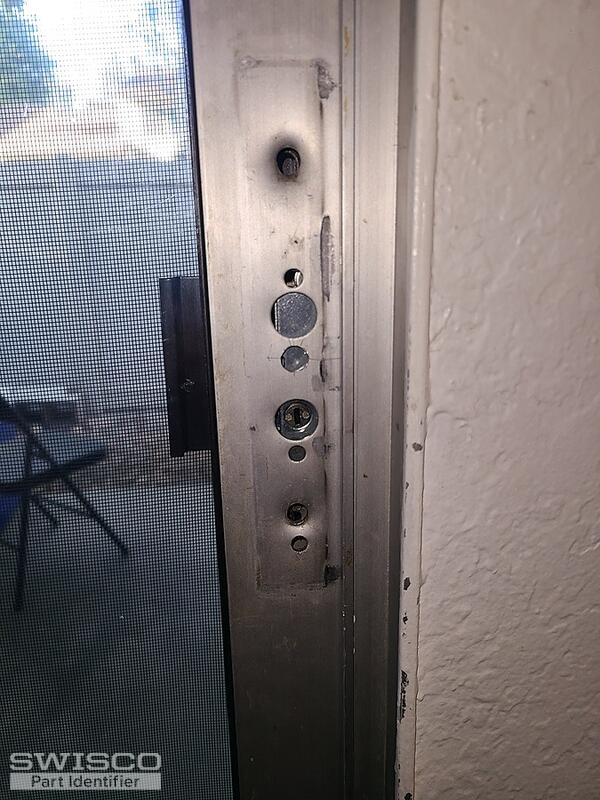

Thumbnail of the uploaded file named 16956001153336795489443728008979.jpg

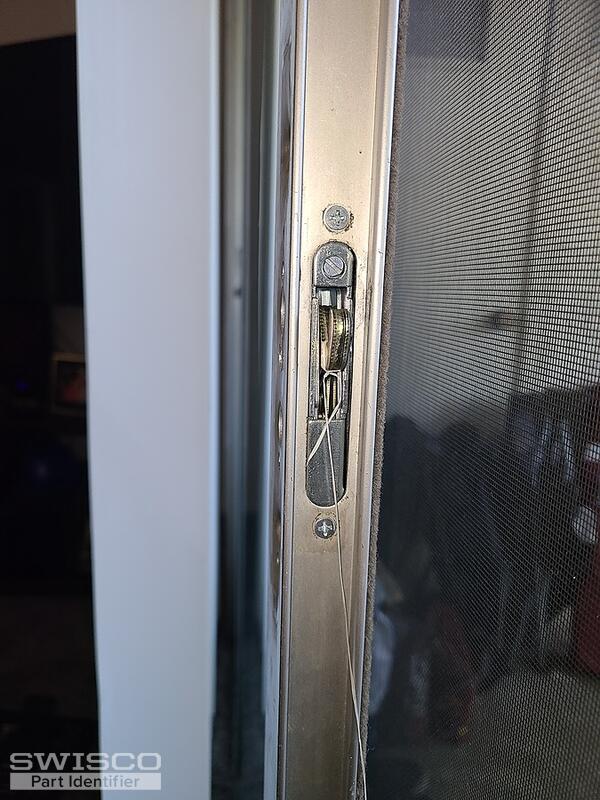

Thumbnail of the uploaded file named 16956001552846870602432609569917.jpg

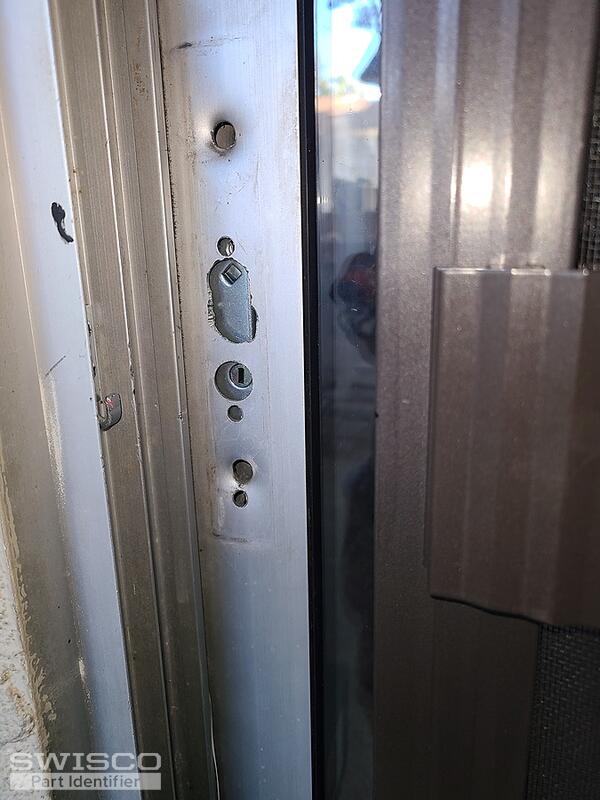

Thumbnail of the uploaded file named 16956001819718370303885674549886.jpg

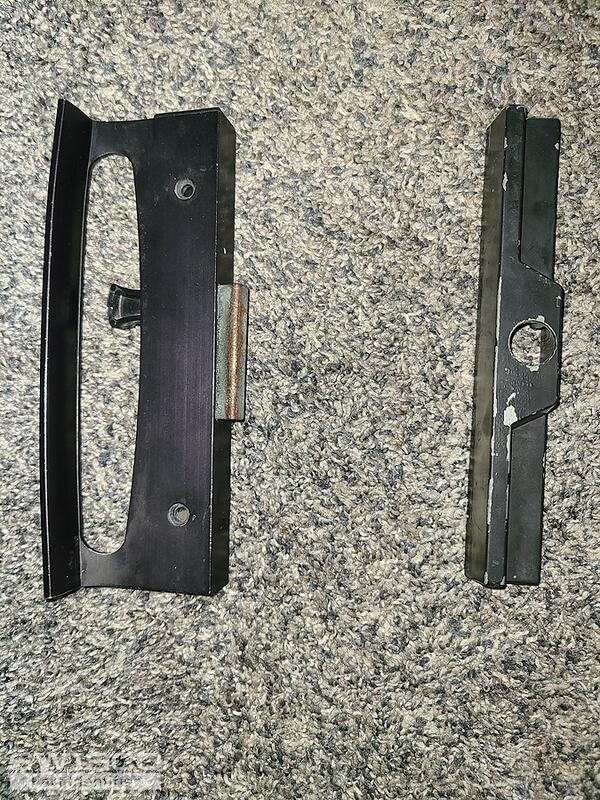

Thumbnail of the uploaded file named 16956002759984732645809403864452.jpg
Thumbnail of the uploaded file named 20230914_182416.jpg
Profile picture of Tom
Tom from SWISCO responded:

We don't sell this exact handle set, but I think you could potentially use our 82-009A as a replacement. This has the same kind of clamp-style latch as your original and has the same 4-15/16" hole center spacing. Look it over and see what you think!
