sliding glass door handle

Home Owner from Antioch, CA
Replacement for inside sliding glass door handle.
this handle has a:
1.) inside door latch
2.) screw holes are 4 5/16 apart
3.) handle has the word "International".

images attached.

I need two inside door handles (broken plastic fittings that hold the lock lever in place)

Thank you,
i'm looking forward to your response.
George G

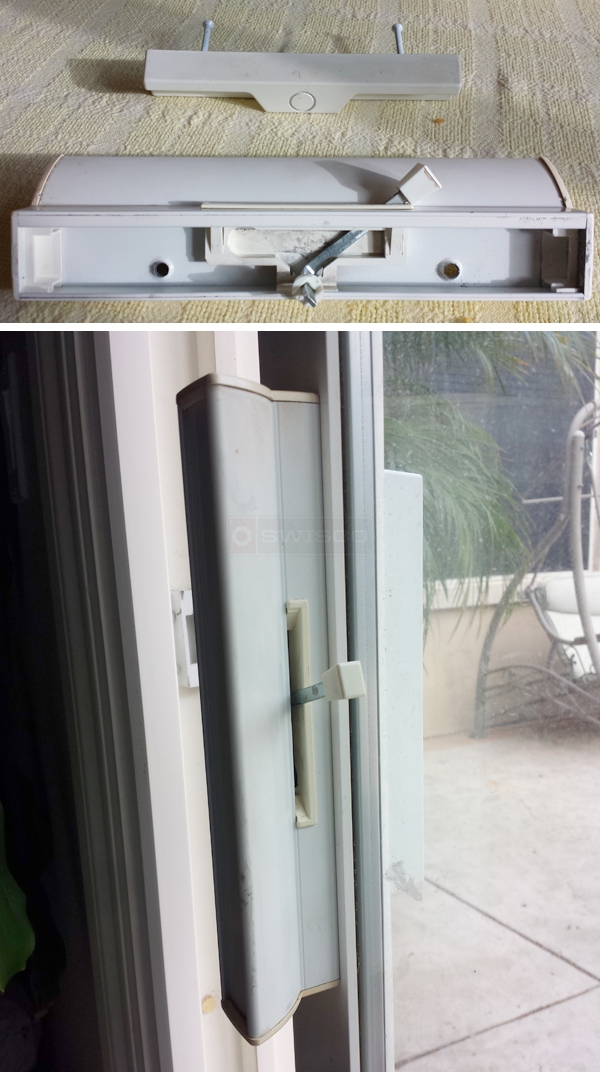

User submitted photos of patio door hardware.
5 Replies
Tom
Tom from SWISCO
SWISCO
Expert
Hey, George. Your handle set closely resembles our 82-032, but our hole spacing is 3-15/16" (center to center). Can you confirm your hole distance? I can't find anything at 4-5/16".
Professional from CA
I've used 80-069.
I'm fairly sure that is 3-15/16".
I don't remember having to drill new holes, but it has been a while.
Home Owner from Antioch, CA

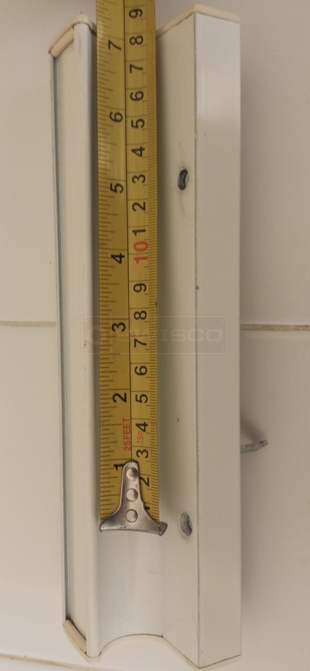

These handles are around 15 years old and yes the hole spacing is 4-5/16 (new picture attached). That's the problem...cant find it anywhere.
So, if I get the 82-032, or another style (82-069) with 3-15/16 hole spacing, would I simply drill new holes then apply the handle and all will work properly?
Sliding glass door handle
Dave Sr.
Dave Sr. from SWISCO
SWISCO
Expert
Yep, you can just drill new installation holes. I recommend Use a straight edge or ruler to make sure you get the holes in line with the original holes.
