sliding glass door handle/key lock

A quick learner from Spring Branch, TX 78070 says:
December 11, 2020

From the pics I took I believe the replacement I need is a mortise and tenon unit. measurements of it are: length of handle part is 9.5 in., length of unit in door jam is 4 & 1/8in., corresponding part in the lock part of the handle is 5 & 5/8in.

I'm a widow and can repair lots of things but not this! A good handyman friend will do it. Thank you Karen.

Thumbnail of the uploaded file named IMG_20201210_161917.jpg
Thumbnail of the uploaded file named IMG_20201210_161515.jpg
Thumbnail of the uploaded file named IMG_20201211_091002.jpg

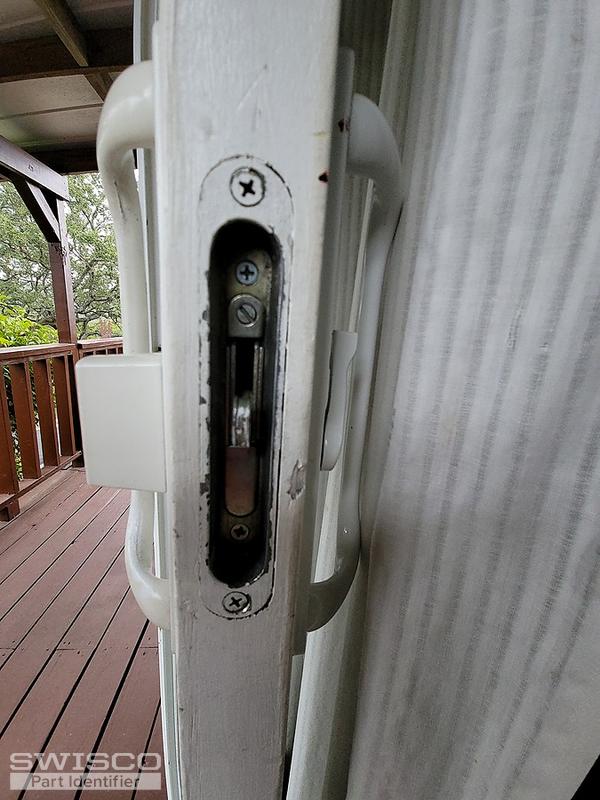

Thumbnail of the uploaded file named IMG_20201211_091012.jpg
A quick learner from Spring Branch, TX 78070 says:
December 11, 2020
From perusing the handle with key lock, looks like 82-086 may work or at least modified to fit the slider.
Did more measurements--handle base is 1in wide,4in btw screws, bottom screw to bottom of handle is 2 & 3/4in.
Do you think this one would work? And, will the mortise part that I have in the jam work with this handle unit?
Think this info should be helpful for you. Thanks-Karen
Profile picture of Casey
Casey from SWISCO responded:
December 14, 2020

Hi Karen, thanks for writing in. I think you are spot on with the 82-086! It should work with your existing mortise lock, but if you do need to replace the mortise I would recommend looking at our 82-229. Let me know if you have any further questions.
Legacy Keyed Handle Set, 3-15/16" (1-1/8" to 2-1/2")
Legacy Keyed Handle Set, 3-15/16" (1-1/8" to 2-1/2")
82-086
$49.70
Mortise Lock With Pocket Trimplate
Mortise Lock With Pocket Trimplate
82-229
$15.49
3/4" Tall Silverline Door Keeper
3/4" Tall Silverline Door Keeper
89-020
$6.07
