sliding glass door roller

A quick learner from Buffalo, NY says:

August 18, 2020

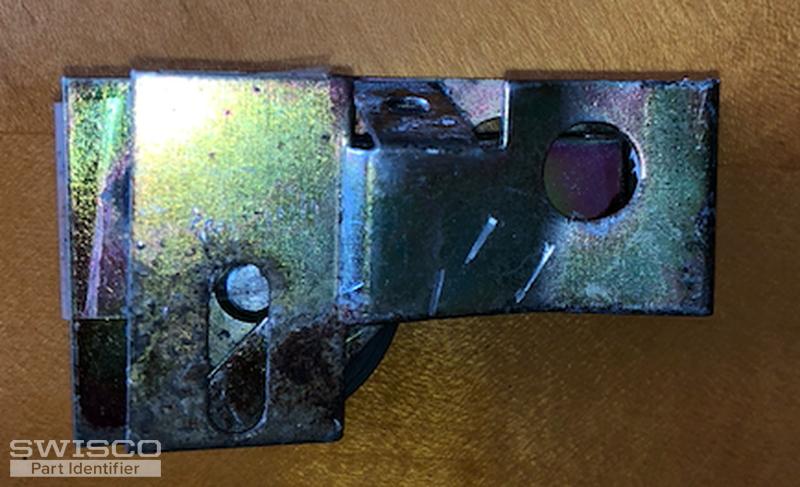

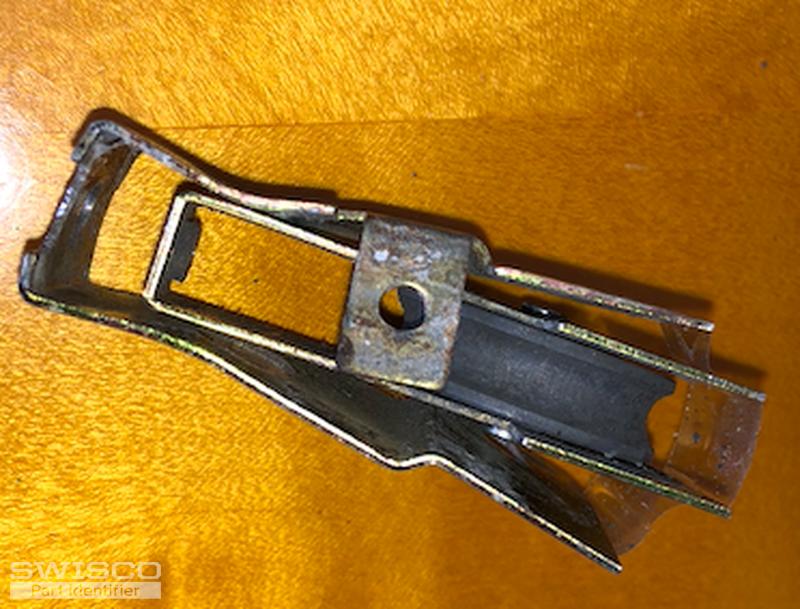

The diameter of the wheel is 1 1/8". Note: the photo of the part outside of the door is very bent from removal. there is a hole for a screw on top of the part (see in photos) that holds the glider in place. If helpful, the manufacturer of the door was patio enclosures, inc.

Thumbnail of the uploaded file named Screen Shot 2020-08-18 at 3.00.27 PM.png

Thumbnail of the uploaded file named Screen Shot 2020-08-18 at 3.01.12 PM.png

Thumbnail of the uploaded file named Screen Shot 2020-08-18 at 3.01.27 PM.png

Thumbnail of the uploaded file named Screen Shot 2020-08-18 at 3.02.41 PM.png

Thumbnail of the uploaded file named Screen Shot 2020-08-18 at 3.03.02 PM.png

Dave Sr. from SWISCO responded:

August 25, 2020

Hello,

We did carry this roller at one time but, unfortunately, it has been discontinued. That being said, take a look at the 81-263 roller which attaches with a screw from underneath, similar to yours. See if you can adapt this roller to your door.

If not, take a look at the 81-023 roller. I have used this roller in the past to replace rollers that are no longer available. It takes a little more work to install it. You will have to remove the bottom rail from the door and attach a screw from the top. Take a look at the roller along with the related information on how to install it. Thanks for posting!

Sliding Door Roller, Concave

81-090

$9.70

Sliding Door Roller, 1-1/4"dia. Steel Concave BB

81-023

$10.20

Capitol Door Roller Assembly, 1-1/8" Concave BB

81-263

$10.89

Phillips Flat 10-32 x 1/2" SS Machine Screw

33-103

$0.29

Phillips 1/4-20 x 3/4" SS Machine Screw

33-104

$0.39
