sliding glass door rollers

Home Owner from Syracuse NY

Sep 8, 2023 7:29 am

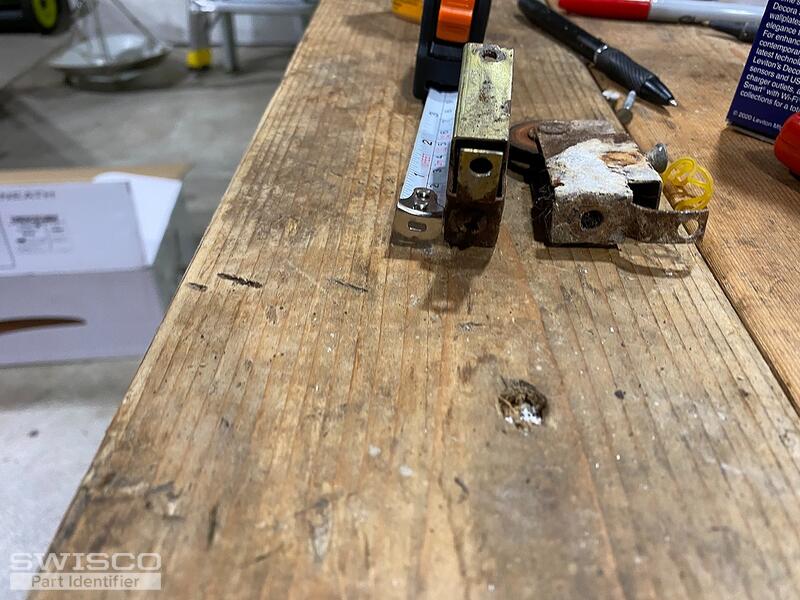

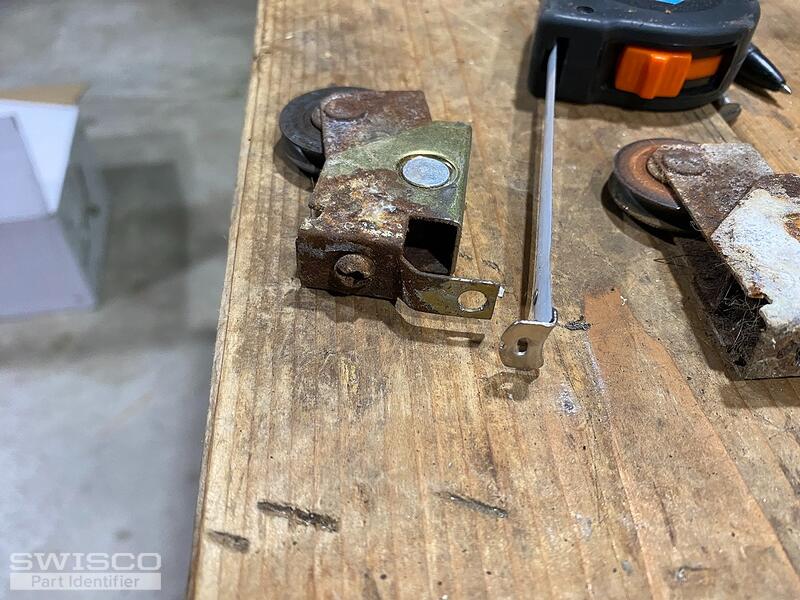

Guessing door is at least 20 years old. 1 1/4 inch wheel. Screw hole on top. Screw tab on side (screw serves to hold bottom of frame in as well as to hold roller). 1 1/8 inch tall (not including wheel). 2 3/8 inches wide. Screw hole on top is 1 9/16 from right side.

5 user uploaded images

4 Replies

Emily from SWISCO

Sep 8, 2023 2:09 pm

Hello there!

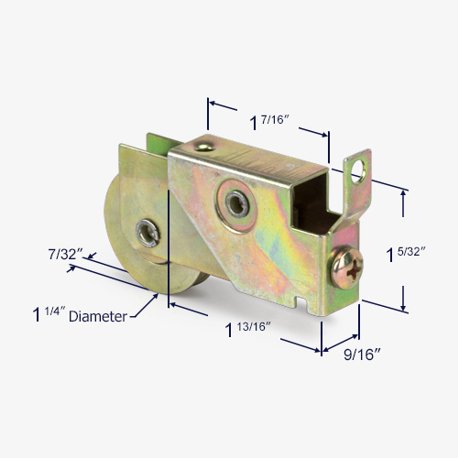

Thanks for reaching out. Start by taking a look at the 81-268 roller. The design matches yours very closely though the dimensions are a little off. You may want to double-check them just to be safe.

Alternate image for 81-268

Quick Learner from Toronto

Jun 24, 2025 4:40 am

I ordered this one, however it doesn't seem to accept the top screw as the screw hole opening on top of the roller is not threaded. Pls advice. All other dimensions match. My current roller has a threaded opening for the top screw hole - that's the only difference

Dave Sr. from SWISCO

Jun 25, 2025 10:39 am

When the manufacturer sends us these rollers, they do not tap or thread the top hole. You will need to check with a hardware store in your area for a screw similar to the 33-096 self-tapping 8-32 screw. Alternatively, a sheet metal screw like the 33-080 should also work. Be sure to take the roller and your original screw with you to the store.
