sliding patio door screen door rail track and other parts

A quick learner from Broomfield Colorado says:
June 13, 2020

I am in need of a rail track for sliding patio screen door. I am not sure which model of JELD-WEN vinyl door we have. We might need rollers for sliding door, as well.

Thanks,

Greg

Thumbnail of the uploaded file named AAMA cert.jpg
Thumbnail of the uploaded file named bottom screen channel width 1.jpg
Thumbnail of the uploaded file named bottom screen channel width 3.jpeg

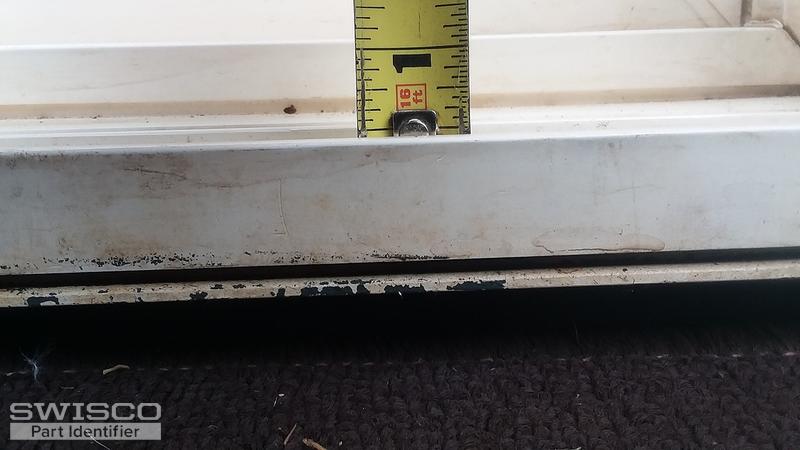

Thumbnail of the uploaded file named screen channel depth.jpg
Profile picture of Tom
Tom from SWISCO responded:
June 17, 2020

HI, Greg. We only sell one type of screen door track, which is our 80-111. Look over the pictures and information we show on its store page and let me know if you could use this to repair your door. I'll also post some dimensions here for your convenience.

Profile diagram of 80-111
Profile diagram of 80-111
A quick learner from Broomfield Colorado says:
June 17, 2020
Hi Tom:

my track width is 5/8" but wouldn't the rail need to be in the middle of that dimension for the screen to track correctly?

Thanks,
Greg
Profile picture of Tom
Tom from SWISCO responded:
June 17, 2020

Many patio door thresholds offer enough clearance to adjust our track to whatever position needed for it to line up in the door. I can't say if your door offers that clearance, but that's typically how our hardware is meant to be installed.
6' Bottom Sliding Door Track
6' Bottom Sliding Door Track
80-111
$31.92
