sliding screen door latch
Quick Learner from Castro Valley, California
Aug 3, 2025 5:25 pm

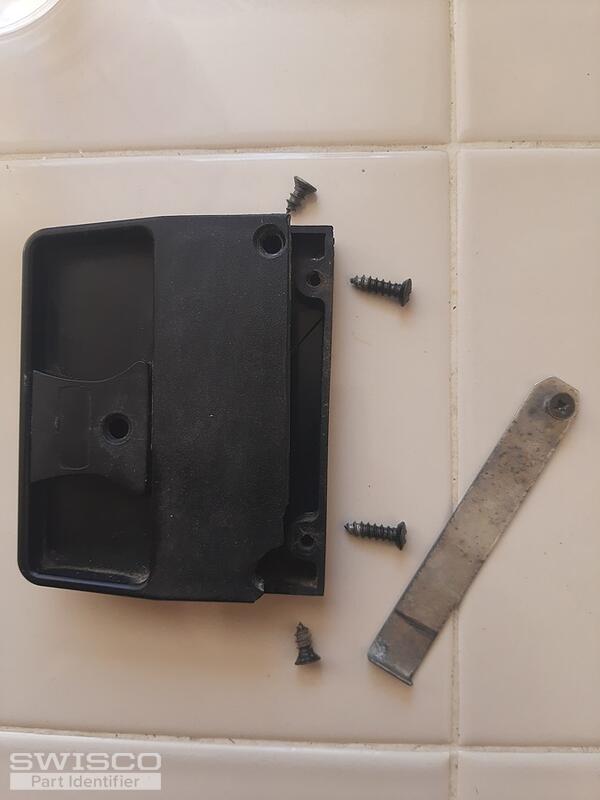

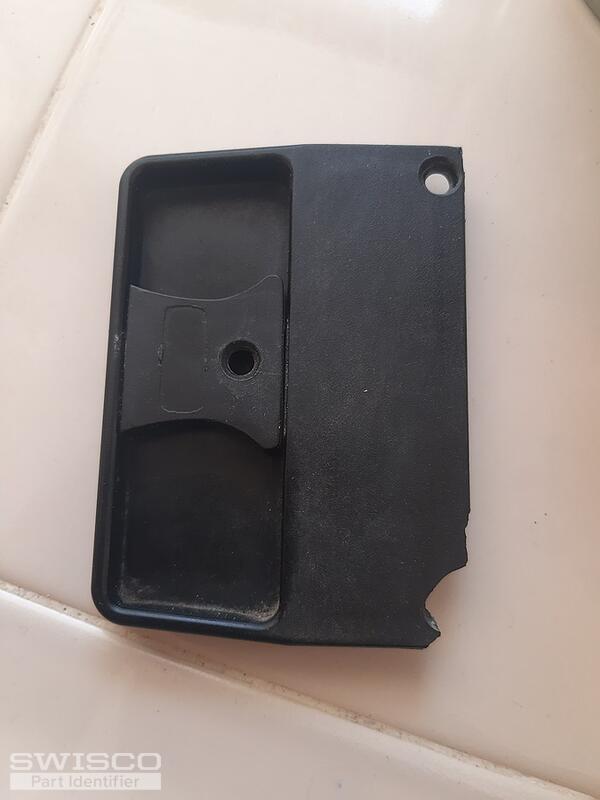

No markings!
5 user uploaded images
6 Replies
Bob from SWISCO
Aug 4, 2025 1:19 am
Hello there. Can you tell us the hole spacing, or the distance between the center of the mounting holes on the screen latch? That will help narrow it down. Thanks.
Quick Learner from Castro Valley, California
Aug 4, 2025 12:37 pm
Bob,
Yes, hole spacings are as follow:
On the interior piece, it's 3.0 inches center-to-center. Interior piece is 3.5 in top-to-bottom. Each hole is 1/4-inch from top or bottom and 3/16-inch from the door jamb (screen frame) edge of the piece.
On the exterior piece, it's 2.5 inches center-to-center. Exterior piece also is 3.5 in top-to-bottom. Each hole is 1/2-inch from top or bottom and 3/16-inch from the door jamb (screen frame) edge of the piece.
Thanks for asking.
Marc
Yes, hole spacings are as follow:
On the interior piece, it's 3.0 inches center-to-center. Interior piece is 3.5 in top-to-bottom. Each hole is 1/4-inch from top or bottom and 3/16-inch from the door jamb (screen frame) edge of the piece.
On the exterior piece, it's 2.5 inches center-to-center. Exterior piece also is 3.5 in top-to-bottom. Each hole is 1/2-inch from top or bottom and 3/16-inch from the door jamb (screen frame) edge of the piece.
Thanks for asking.
Marc
Bob from SWISCO
Aug 6, 2025 12:59 pm
Thanks Marc. That hole spacing, with it differing on the inside and outside, is a huge clue. See the 83-113 Screen Pull and Latch. This has the same spread: the inside pull has 3" hole spacing, while the outside has 2-1/2" spacing. Take a look and see if you think this could work for you.
Detail of 83-113
Steel latch 83-113
Quick Learner from Castro Valley, California
Aug 6, 2025 4:14 pm
Bob,
Looks perfect! Thank you so much for all your help.
Marc
Looks perfect! Thank you so much for all your help.
Marc
Bob from SWISCO
Aug 7, 2025 3:15 pm
My pleasure, Marc. Let us know if you need anything else!
