sliding windo channel

Home Owner from brentwood ca

Aug 24, 2017 3:06 pm

I need help to get the right channel for a non tilt sliding window
the length is 32 inches and width is 1/2 inches
thanks
Jalal

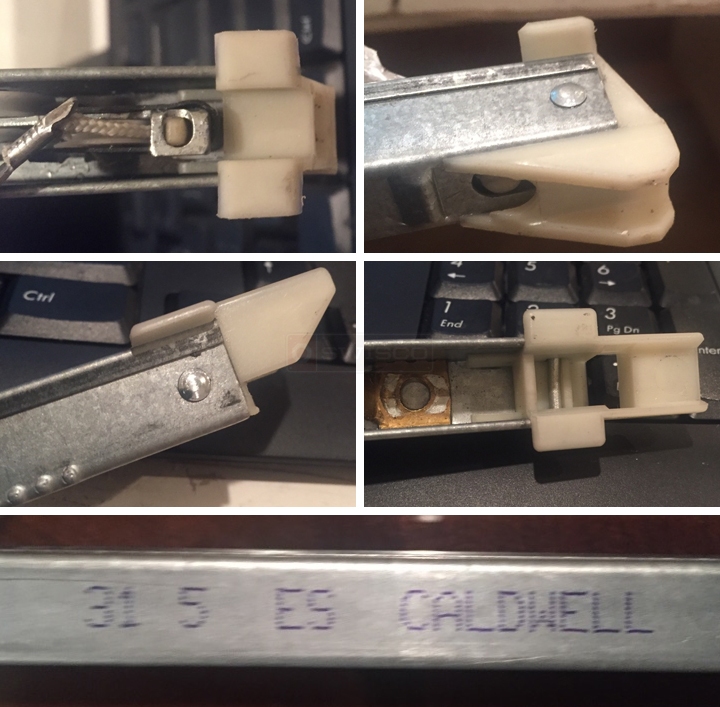

User submitted photos of a window balance.

3 Replies

Tom from SWISCO

Aug 25, 2017 4:43 pm

Hi, Jalal. "31 5" is a manufacturer code that refers to a 32" balance with a 3150 stamp option. As for the Series, I can tell from your plastic attachments that you need Series 380 or Series 385. Take a look at the photo below to see how you should measure. If your shoe is 1-3/32", you have the S385-32. If it measures 1", choose the S380-32.

Alternate view of 15-004

Quick Learner

Aug 25, 2017 7:37 pm

many thanks Mike
very helpful
jalal
