Can you give me the exact dimensions of the slot in the Stainless Steel 70-140 clip ?
I need to confirm that I can use a 10-32 UNF screw size, in my application..
Proviiding 3-d step file would be Great !
thanks for your help .,
-jmf
slot dimensions
Professional from ABERDEEN, MD
Dec 14, 2025 7:18 am
2 Replies
Lauren from SWISCO
Dec 16, 2025 9:05 am
Hello, thank you for posting,

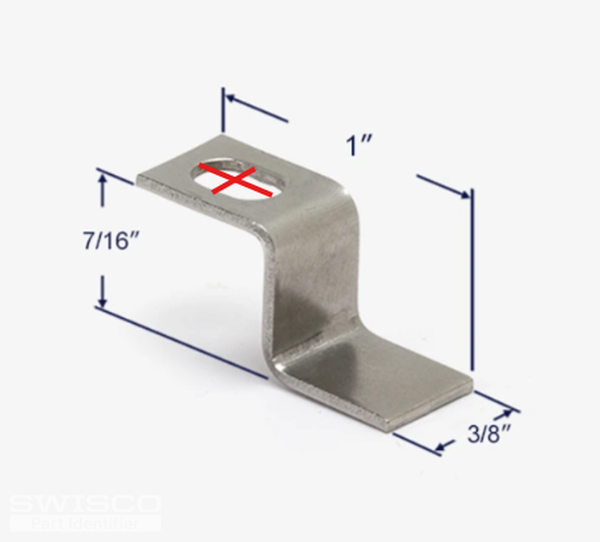

Please see the diagram below. The opening slot is 5/16" long by 3/16" tall. Please let us know if you have any additional questions!
