small window springs

Quick Learner from Orlando FL
Apr 7, 2024 9:59 pm

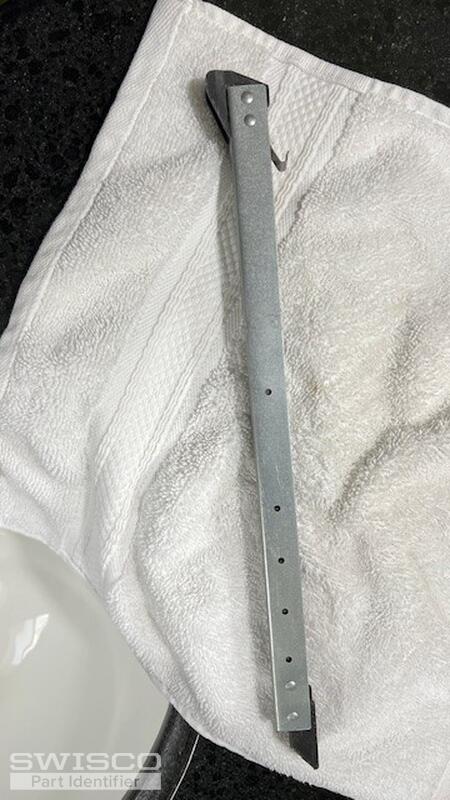

What is the replacement part I need to replace bot of these? One attached to the window they are slow to return and do not provide any support to the window.
1 2 3 4 6
5 user uploaded images
5 Replies
Bob
Bob from SWISCO
Apr 7, 2024 11:46 pm
SWISCO
EXPERT

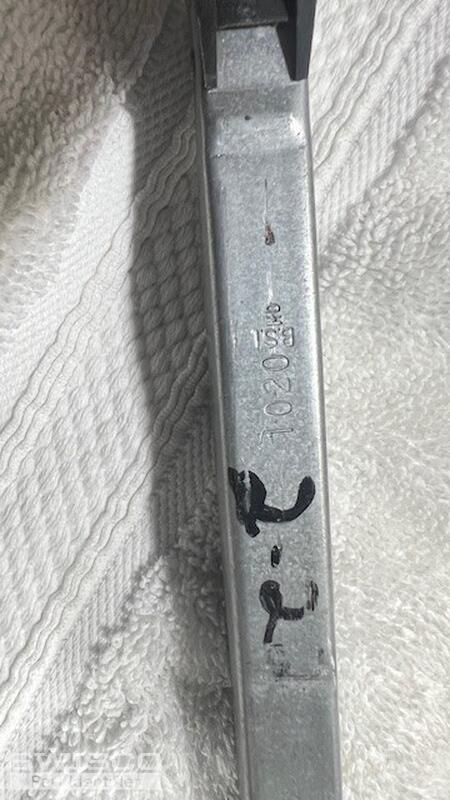

Hello there. Is the metal channel, not include the nylon attachments at both ends, 11" long? If so, see either our S351-11 or S390-11. The only difference between these two channel balances is the depth of the bottom nylon shoe, or the measurement from 'heel' to 'toe'. See the illustration below. Compare both balances with your old hardware to see what matches best. In either case for a stamp option choose 1020.

Comparison of the S351 and S390 balance shoes.
Comparison of the S351 and S390 balance shoes.

Quick Learner from Orlando FL
Apr 10, 2024 6:08 pm

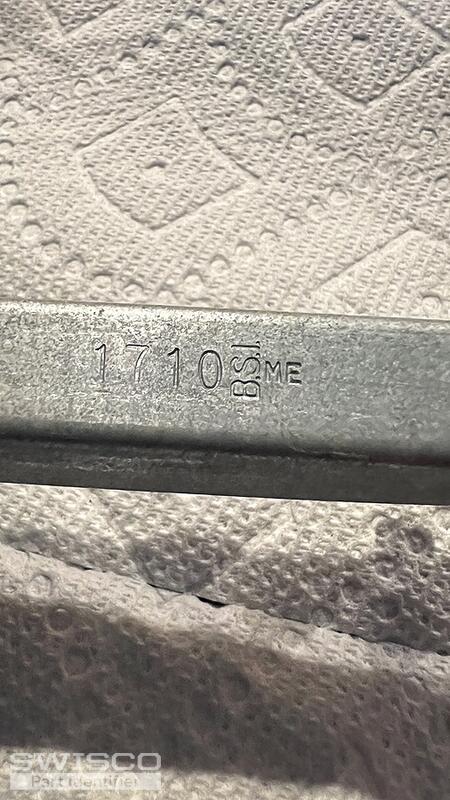

That is perfect. You identified the two I need. I will order shortly but first can you help with the second set I need? These are 18" long and the same 1" channel depth at the bottom Photo now attached shows the current stamp
IMG_6947
1 user uploaded images
Bob
Bob from SWISCO
Apr 10, 2024 10:26 pm
SWISCO
EXPERT

Sure thing. If the attachments on this 18" balance are the same as the 11" ones, and if the shoe depth is 1", then this is a S351-18, with a stamp of 1710. Let me know if you need anything else.

Quick Learner from Orlando FL
Apr 12, 2024 9:08 pm
Thank you so much, I'm about to order the right ones with confidence now.
Bob
Bob from SWISCO
Apr 13, 2024 5:40 pm
SWISCO
EXPERT

Excellent. Let us know if you need anything else, and thanks again for contacting us!
