spiral balance

Question

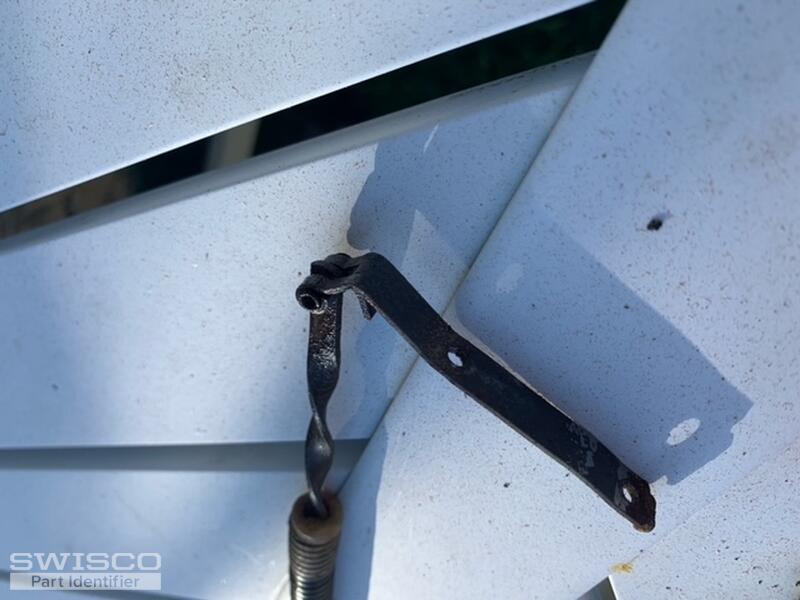

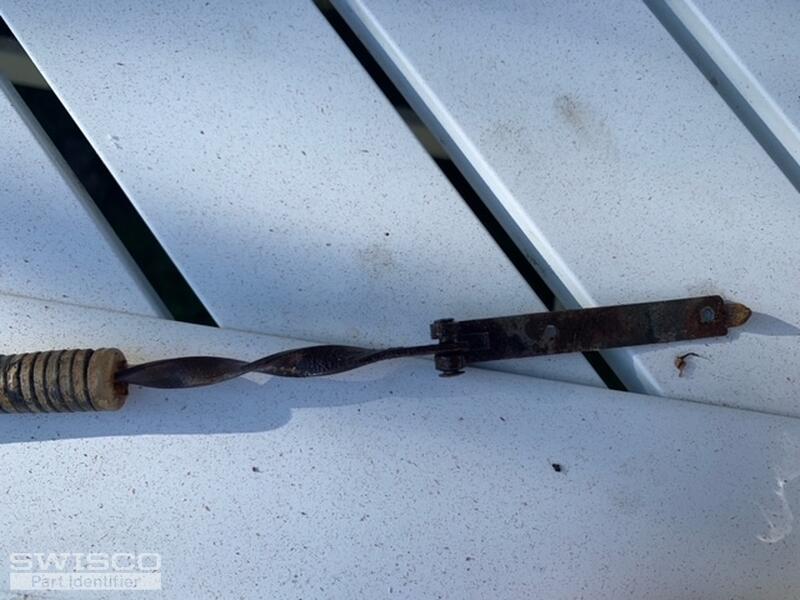

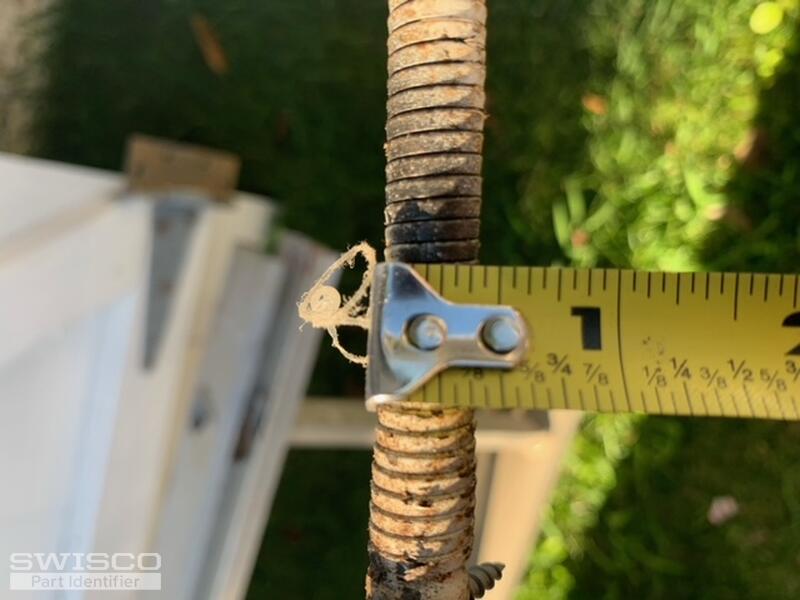

Please help me identify replacement parts for this spiral balance for a window I have built in the 1955. The coil tube measures 7/16 inch diameter and 31.5 inches length. The weight of the window is approximately 12 pounds.

Bob · Accepted Answer

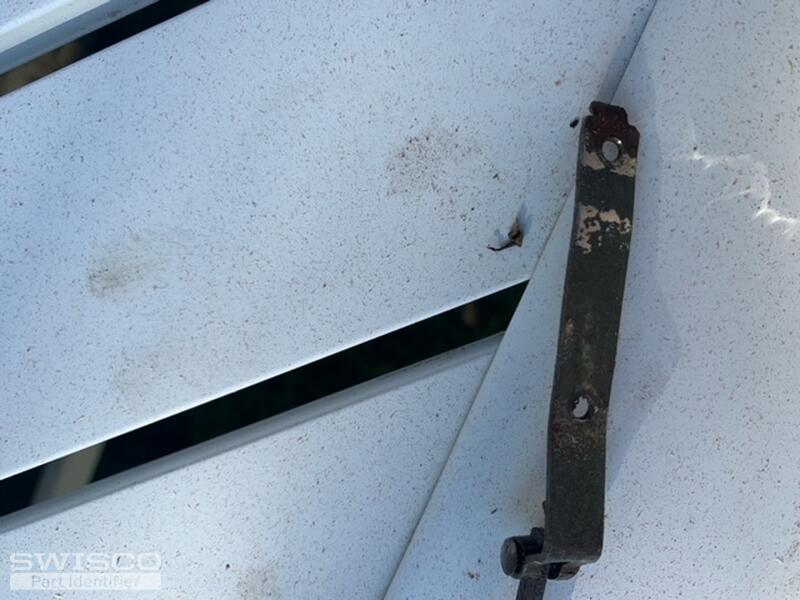

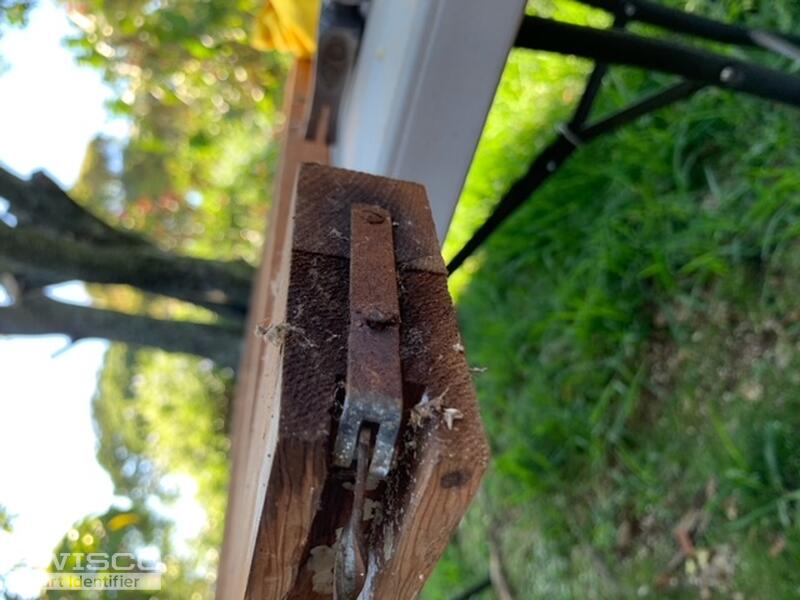

The outer sheath of this spiral balance seems to have eroded away, and that's what the diameter really should be measured by. But if the inner component was 7/16", it's likely a 5/8" outer tube, and therefore you'd need a Series 500. If the outer tube length is 31-1/2", round up for a S500-32. You can use a bracket like our 17-012. Check a balance from an identical window in the house to confirm. For a window that weighs exactly 12 pounds, a Red Tip option of 7 through 29 pounds should work.
