spiral balance part

Quick Learner from Cincinnati OH
Mar 25, 2024 6:28 pm

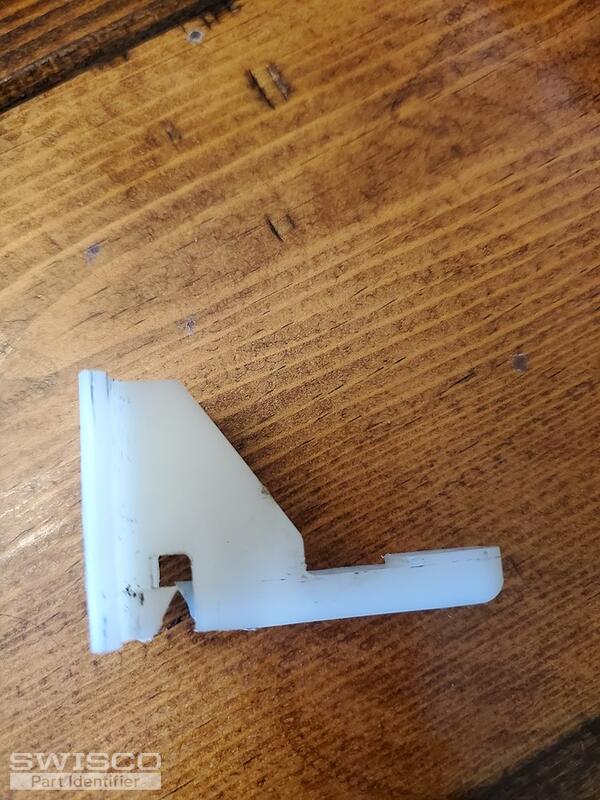

Hello! I am repairing 60 year old aluminum windows and need 4 new spiral balance shoes. The bottom sash clips seem to be okay. I don't see anything here that come close to this design so hoping you can help me out. Many thanks!
discontinued spiral balance shoe discontinued spiral balance shoe discontinued spiral balance shoe discontinued spiral balance shoe
4 user uploaded images
1 Replies
+ Add a Comment
Paul
Paul from SWISCO
Mar 28, 2024 10:24 am
SWISCO
EXPERT

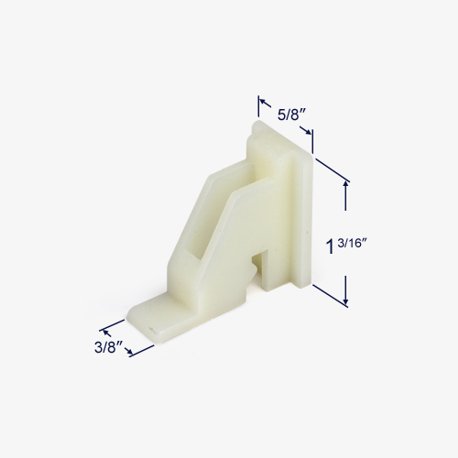

Thanks for reaching out to us. The shoe shown here used to be something we sold but it was discontinued. The closest we can offer is the 15-040N though we can't promise they will work for you. The total length is 1-3/8", and the body is 1" and 3/8" wide. The back wing is 5/8" wide by 1-3/16" tall. Have a look and see what you think.

Alternate image for 15-040N
Alternate image for 15-040N

+ Add a Comment
Products and resources found in this discussion
Balance Attachment
Balance Attachment
15-040N
$1.98
