spiral spring balance

Question

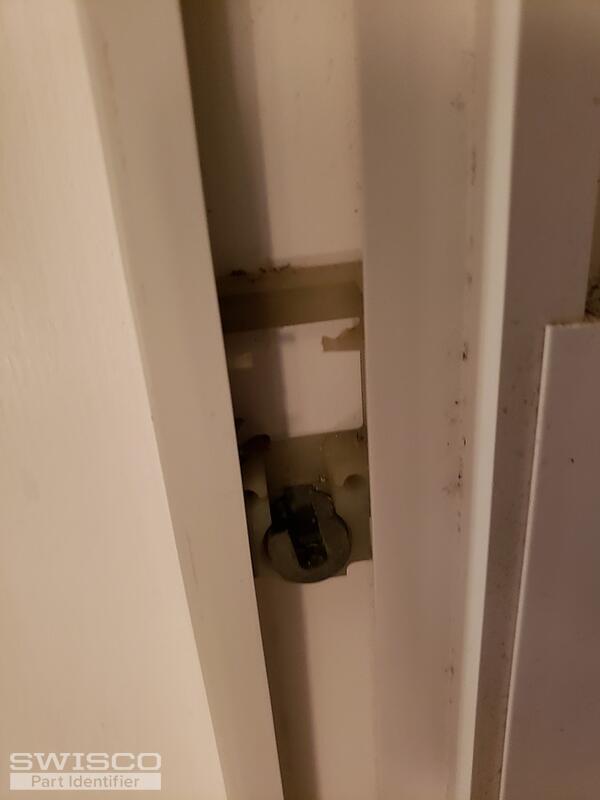

Window #1: Spring is 5/8" diameter, 31" long with a blue tip. I also need a replacement shoe.

Window #2: Spring is 5/8" diameter, 23" long with a blue tip. I also need one, possibly two replacement shoes.

I actually have about a dozen more windows with broken springs, so if the repair of these goes well, I'll be ordering more!

Bob · Accepted Answer

Thanks for writing in. For the spiral balances, see our S600-31 and S600-23, both with Blue Tips respectively. For any pivot shoes you need, you might need either our 15-178 or 15-188, but ultimately you'll need to remove your old shoes and go over the dimensions to confirm if either matches.
