spiral window balance 17" non-tilt

A quick learner from Lake Mary, FL says:
Hello, please see the attached images for spiral window balance 17" non-tilt replacement.

Image 0035 is the best shot I could get of one still installed.

Image 0038 is from one uninstalled.

Image 0861 is top and bottom of uninstalled, and 0863 is width, but I think there is plenty of room for a larger size.

Recommendation?

Thank you, sincerely, Daren

(also, under the "You are a" section to select, how about quick learner, handy, and home owner, one was not enough)

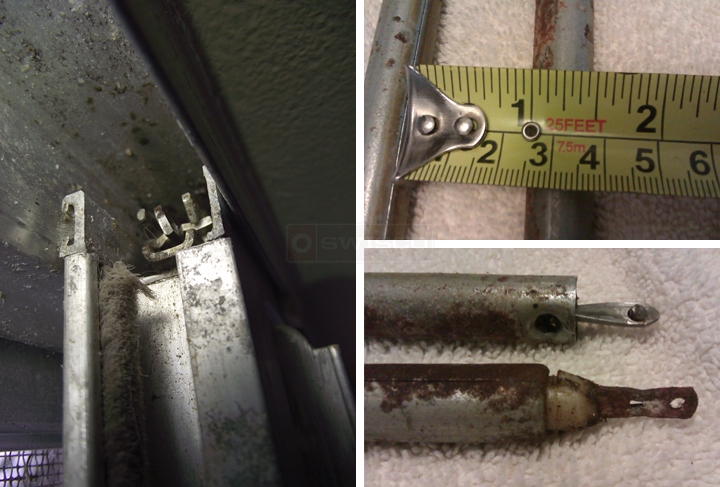

User submitted photos of window hardware.
Profile picture of Paul
Paul from SWISCO responded:
Thanks for posting. It's hard to tell what the diameter of the tube is. If it's 5/8" or 9/16", then I recommend our S500-17. If it's 3/8", I recommend our S400-17. Check out these balances and see how well they match your hardware.
