stamp 2900 bsi
Home Owner from nc
Mar 30, 2010 2:40 pm
stamp reads 2900 bsi
8 Replies
Casey from SWISCO
Mar 31, 2010 7:31 am

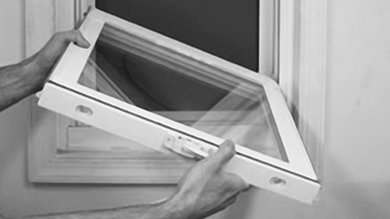

Please remove the window sash and place it on a scale. We need the weight of the window sash in pounds to determine the proper stamp option.
If you are unsure of the balance series you selected please reply with detailed photos for us to research.
If you are unsure of the balance series you selected please reply with detailed photos for us to research.
Casey from SWISCO
Apr 14, 2010 7:54 am
Do not attempt to replace the spring, it is under great pressure and would be dangerous. You will need to remove the window sash to replace the balances.
Please remove the window sash and place it on a scale. We need the weight of the window sash in pounds to determine the proper stamp option.
If you are unsure of the balance series you selected please reply with detailed photos for us to research.
Please remove the window sash and place it on a scale. We need the weight of the window sash in pounds to determine the proper stamp option.
If you are unsure of the balance series you selected please reply with detailed photos for us to research.
Handy Person from Ohio
Apr 14, 2010 9:01 am
I have to replace a balance with the same stamp on it. The part is question that is acutally broke is the plastic piece of the pulley system that hooks to the spring. Could I buy the entire assembly and reuse the old spring and not worry about the weight of the sash. (I am not comfortable with removing the entire sash myself)
Handy Person from Ohio
Apr 14, 2010 1:55 pm
Will a bathroom scale provide enough accuracy?
I will look at the window and see if I can remove the sash without screwing things up.
Paul from SWISCO
Apr 15, 2010 9:42 am
Yes, a bathroom scale is good enough. A lot of people weigh themselves and then weigh themselves again holding the sash; then simply subtracting their weight from the total weight to get the weight of the sash.
Quick Learner
May 3, 2010 8:48 am
Dear Sir or Madam:
I am looking to replace a channel balance for a window in my home. I am unable to identify the manufacturer of the window. After asking a question in the online forum, Donna suggested that I get the weight of the sash and send pictures of the old balance.
Based on pictures in your online catalog, I need a series 770, 29 inch balance. I don't know if they differ based on sash weight.
The sash weight is between 19 and 20 pounds.
Please advise me on how to order and pay for a replacement.
Description of photos
Bottom Right - Shows the top of balance. The current one got bent up when I removed it
Top Right - Shows the bottom of the balance and the clip style.
Top Left - Shows how long the spring is.
Bottom Left - Shows where the top pulley rests when the cord is fully retracted.
Thank you for all of your help.
I am looking to replace a channel balance for a window in my home. I am unable to identify the manufacturer of the window. After asking a question in the online forum, Donna suggested that I get the weight of the sash and send pictures of the old balance.
Based on pictures in your online catalog, I need a series 770, 29 inch balance. I don't know if they differ based on sash weight.
The sash weight is between 19 and 20 pounds.
Please advise me on how to order and pay for a replacement.
Description of photos
Bottom Right - Shows the top of balance. The current one got bent up when I removed it
Top Right - Shows the bottom of the balance and the clip style.
Top Left - Shows how long the spring is.
Bottom Left - Shows where the top pulley rests when the cord is fully retracted.
Thank you for all of your help.
Casey from SWISCO
May 3, 2010 11:49 am
29" Series 770 Balance for a sash that weighs between 19 and 20 pounds
Choose stamp option 29C, this will carry a window sash weight range of 18 through 23 pounds.
This information is based on 2 balances per sash. Balances are designed assuming friction in the jamb weather-strip will carry a portion of the sash weight. Suggested sash weights are approximate.
Choose stamp option 29C, this will carry a window sash weight range of 18 through 23 pounds.
This information is based on 2 balances per sash. Balances are designed assuming friction in the jamb weather-strip will carry a portion of the sash weight. Suggested sash weights are approximate.
