sweep latches

Question

Hi gentlemen,

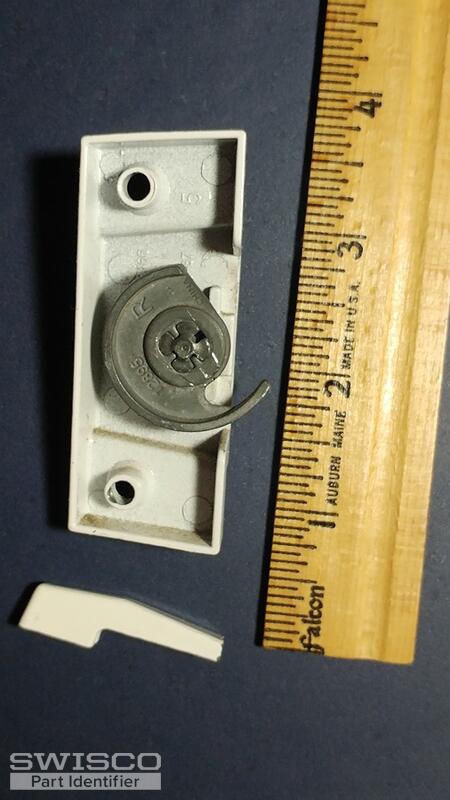

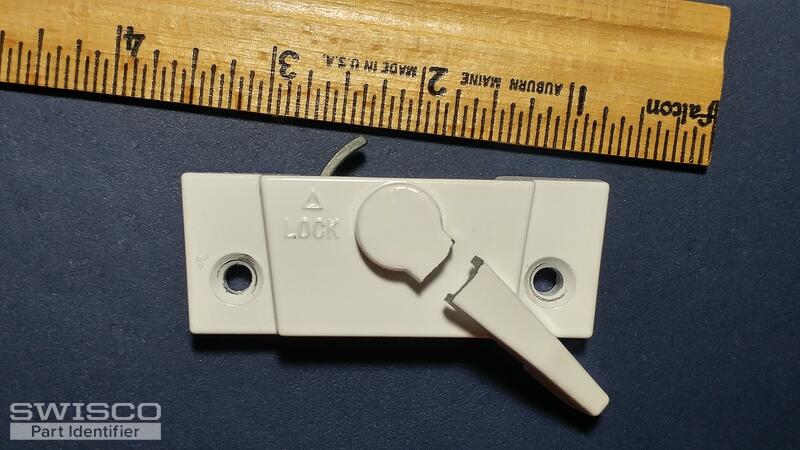

I have been trying to identify window sweep latches so I can replace those that have broken. I have been unable to identify the manufacturer of the windows. Below I have the measurements of the sweep latches. Attached I have photos of one of the broken sweep latches. I hope you guys are very good so that you might be able to identify the manufacturer and part numbers that will enable me to buy some replacements for the broken ones. I haven't been able to find them.

The sweep latches are imprinted inside with "China". On the inside they also have the following numbers imprinted;
12895 (the actual dark grey locking piece inside)
13466 (the white housing piece)
13468-8 (the broken lever piece)

From center of screw hole to center of screw hole it looks like 2 1/16 or 2 1/8.
Longest side 2 3/4
Shortest side 2 5/8
Depth looks like 1 inch or 1 1/32.

Thank you so much for your time. Have a great day.
Bob

Casey · Accepted Answer

Hello,

We do not carry any sweep locks with 2-1/8" hole spacing but if yours measures exactly 2-1/16", you can start by looking over the 90-278. You would also need to confirm that the 11/16" backset matches up to your part. Just let us know if you have any other questions or concerns.

Dimensions for 90-278
