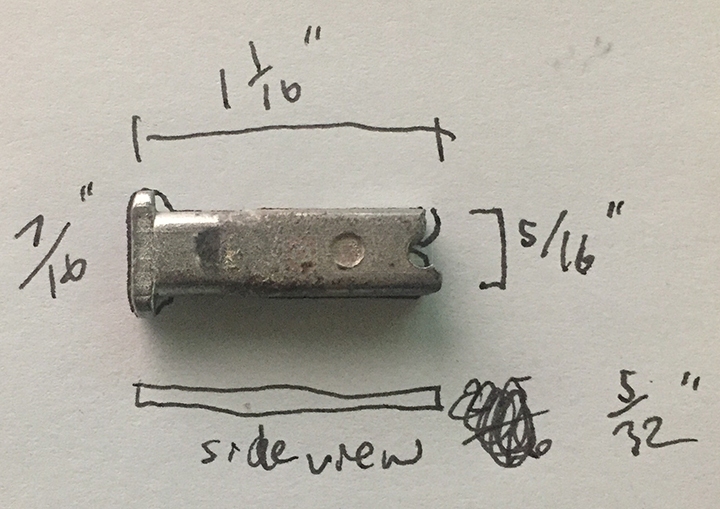

t bar pivot from double hung townhouse window- (fragment of broken piece)

Quick Learner from brooklyn

Mar 3, 2018 4:00 pm

Hi- can you help me identify a replacement part?
T bar is 7/16"
shaft is 5/16"
side of pin is 5/32"
distance from head to first hole (where break is): 1 1/16"

Thank you!

3 Replies

Paul from SWISCO

Mar 6, 2018 12:17 pm

Hello! We have a one-horn pivot bar, 26-454, that will fit your pivot shoe. The first screw hole is 1" from the tip. The 1/16" difference shouldn't matter in the operation of the window sash. Does this seem like the right pivot bar for you?

Quick Learner from Brooklyn

Mar 6, 2018 10:17 pm

Thanks Paul- I?ll give it a try! It looks very close in dimension
