tandem wheel sets

Handy Person from Greenville, SC

Jan 3, 2026 4:14 pm

Hello I have been looking high and low for replacements for the correct tandem wheel sets on the door that I have attached a picture of the model info below. This particular model comes with a 10/32 mounting hole and I have been unsuccessful finding that size mounting hole. I believe the wheel size is 1 1/8.

1 user uploaded image

4 Replies

Jasmine from SWISCO

Jan 5, 2026 4:02 pm

Thanks for reaching out! We'll need to see the roller removed from the door to identify it. Unfortunately, the sticker doesn't provide enough information to narrow down a replacement.

Please see the video tutorials below for instructions on removing/installing the rollers and what we need to see to identify them.

Handy Person from Greenville, SC

Jan 5, 2026 6:28 pm

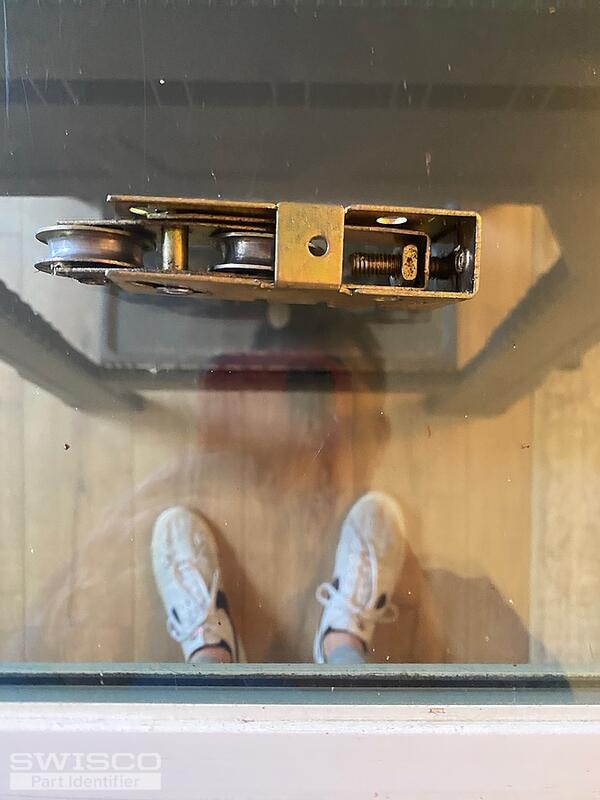

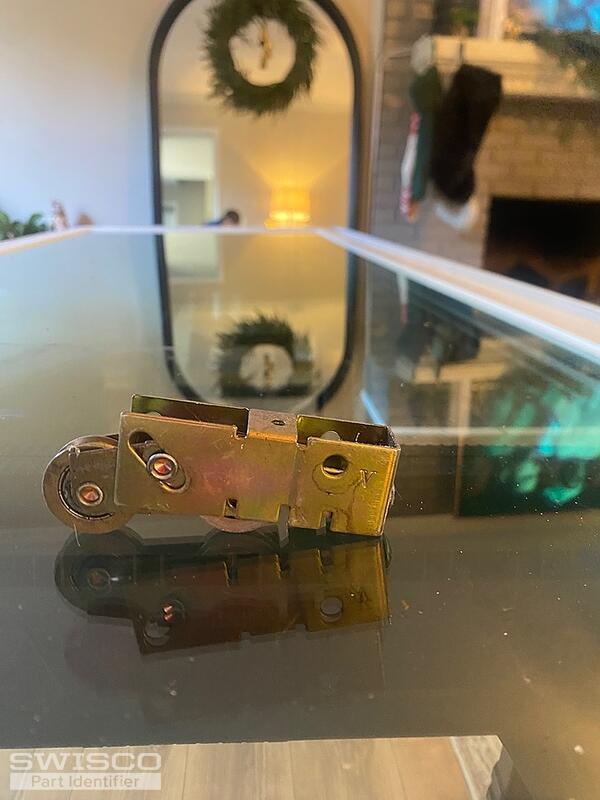

pictures are now attached
W is 3-1/8 and height is 1-1/8 for wheel housing.
wheel diamater is 1-1/8
10/32 mounting hole.

4 user uploaded images

Jasmine from SWISCO

Jan 6, 2026 8:50 am

Thanks for the additional photos. This roller appears to be a match for the 81-030 Acorn Patio Sliding Glass Door Roller. The wheel diameter is 1-1/4" but the housing can be adjusted to accommodate for the difference, if needed.

Carefully review and double check the dimensions to confirm this is the right fit.

Alternate image for 81-030
