the part i ordered was too small.

Quick Learner from new york
Feb 26, 2018 10:51 am
I originally ordered :
4) 23-234 : Bypass Mirror Door Bottom Guide

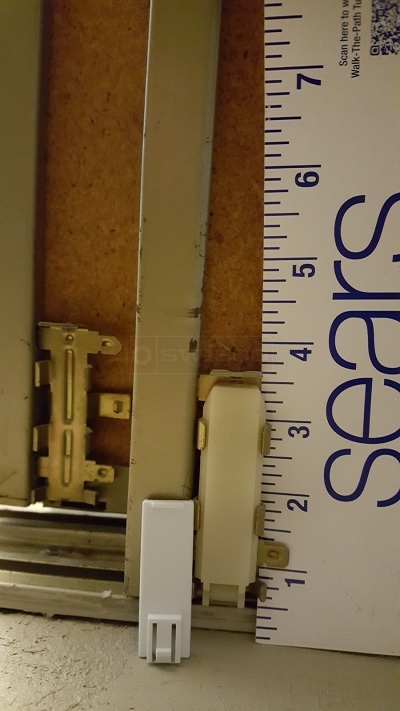

But as you can see they are too small and dont fit in the bracket. ., Do you have a bigger bottom guide? It needed to be 3" high.. i searched your site and failed to see ant thing thwt might fit. Do you have the proper replacement part i need?
bottom guide
3 Replies
Paul
Paul from SWISCO
Mar 1, 2018 11:09 am
SWISCO
EXPERT
I am afraid with this particular bottom guide, you can not just replace the nylon fitting. You will have to replace the complete guide. See our 23-021 bottom mount guide.
Quick Learner from new york
Mar 11, 2018 3:49 pm
Ive ordered and received the replacement guides you recommended, can you please instruct me how to remove the broken ones, and how to install the new part? Im afraid to break another mirror, cant afford any more bad luck..
Thank you,
Rose
Paul
Paul from SWISCO
Mar 15, 2018 9:26 am
SWISCO
EXPERT
Welcome back Rose. You will need to remove the mirror door and lay it down to take the pressure off the fitting. Now, with a needle nose pliers you will need to work out the locking hook from the door frame cut out. This should work for you. Make sure to get back to us and let us know how you made out.
