tilt balance

Quick Learner from philadelphia
HI, I don't know witch color of tilt balance rod I need. The wyndow is made of aluminum and measures 36"by 25"
1 user uploaded image
4 Replies
Jasmine
Jasmine from SWISCO
SWISCO
Expert

Thanks for posting! Do you know if the exact balance in your window is a channel balance or spiral balance? I'm certain we can get your set up with the replacement balances needed for your repairs. Although, I will need to see the balance removed from the window to identify the best replacement option.

If you aren't sure how to remove them, please send me a photo of the balances installed in the window and I'll be able to determine the steps you'll need to remove them.

Quick Learner from philadelphia

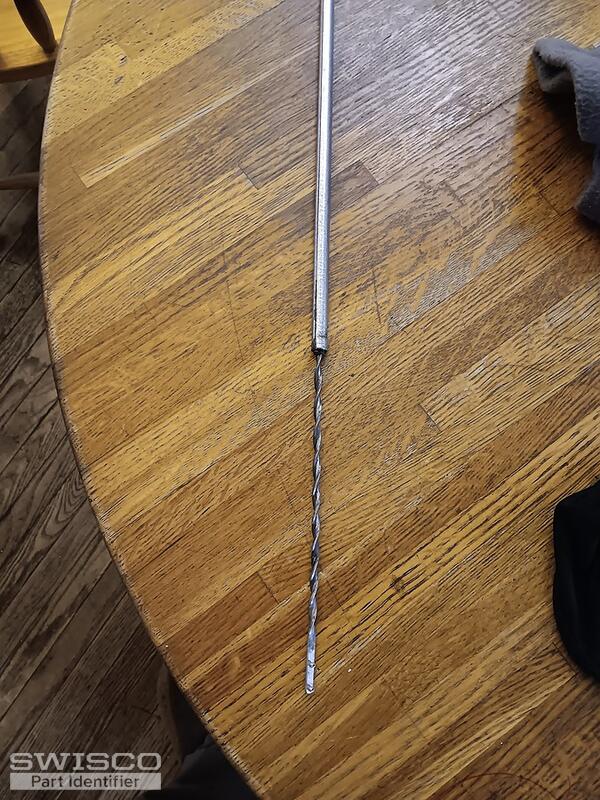

I attached 3 photos as you asked.
The rod is 31". Thank you
3 user uploaded images
Jasmine
Jasmine from SWISCO
SWISCO
Expert

Thanks for confirming. Your balance appears to be the S600-31 Spiral Tilt Window Balance; although, you'll need to confirm its diameter to be sure. If it is 5/8", this balance is available in a black tip option.

Should the diameter measure 3/8", you'll need to the S900-31. You'll need to confirm the exact sash weight to determine which color option needed for this balance.
