tilt pin

A home owner from Huntsville AL says:
April 17, 2019

tilt pin for a Ellison series 500 vinyl window.overall length is 3' with a 5/8" tang, need at least two picies.

Thumbnail of the uploaded file named KsEdTgKdQjSr1a0obuggbQ.jpg
Profile picture of Tom
Tom from SWISCO responded:
April 17, 2019

I'm afraid I can't make out what you have from this photo. Could you show me the top of this pivot bar? Can you also show me the pivot shoe with which it interacts? Thanks!
Profile picture of Bob
Bob from SWISCO responded:
April 17, 2019

Aha, perfect. Thank you! Take a look at our 26-403 Pivot Bar. Compare the listed dimensions with your old pivot bar and see what you think.
A home owner from Huntsville AL says:
April 17, 2019
additional photo you requested. Do you need more?
Thumbnail of the uploaded file named IMG_0242.JPG
Thumbnail of the uploaded file named 0RihrIAjTVadbpEgHeLFqw.jpg

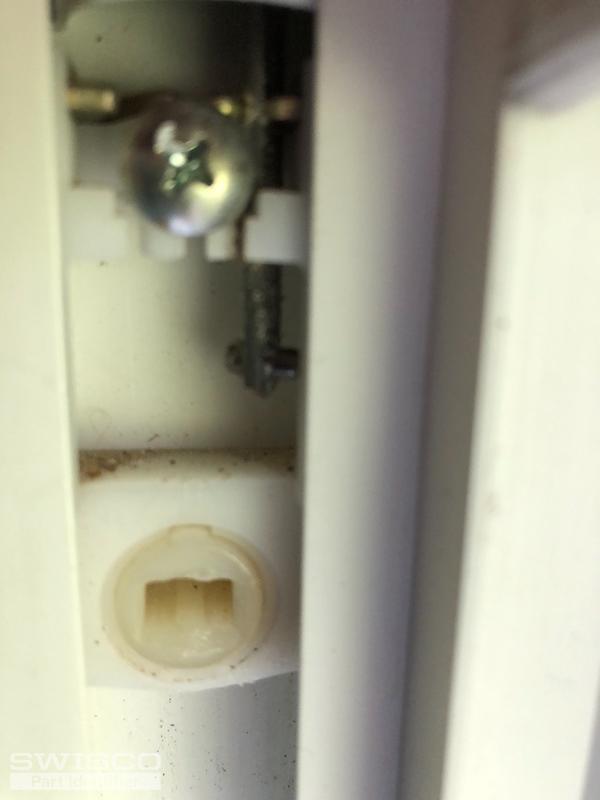

Thumbnail of the uploaded file named IMG_0211.JPG
