tilt wash windows

Handy Person from Ocean City NJ

Apr 16, 2026 9:01 pm

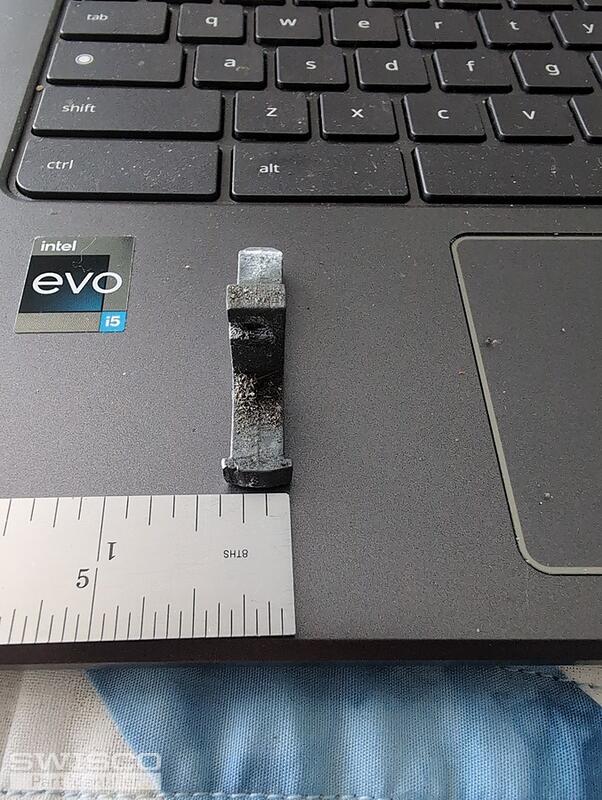

looking for a few sets of these balancers and pivot pins. The pivot pin in the picture are good. the other side is broke.
There are 2 coils in the balaner. It has a T shape on the end of the coil.
I looked on your website but did not see similar items. Thanks for any help.

2 user uploaded images

5 Replies

Tom from SWISCO

Apr 21, 2026 3:24 pm

Your shoe appears to be a match for our 15-228. This is used with our Series 160 coil spring.

As for what pivot bar you need, the 15-228 is compatible with a ton. I can't quite make yours out, either. Would it be possible to see a clear photo of it removed?

Handy Person from Ocean City NJ

Apr 21, 2026 4:52 pm

Hi, I already ordered some pivot bars 26-310

And 2 shoes 15-111 as they looked the closest to mine.

Let me know if you think they will work. In another communication I set a picture of a good pivot bar. Unfortunately the drawing for the one I bought did not have all the dimensions on it.

Thanks for the reply

2 user uploaded images

Tom from SWISCO

Apr 22, 2026 10:02 am

The 15-111 pivot shoe will not work for you, no. I would return that for a refund and purchase the 15-228 instead.

I see your other inquiry now and I've taken the liberty of adding those photos to this page. That will help us avoid confusion.

The 26-310 is similar and is compatible with the 25-228. However, it's not exact, so you can expect to have to retrofit it to the window. Be prepared to drill new holes.

Handy Person from Ocean City NJ

Apr 22, 2026 10:55 am

Ok thanks for the info. I will order the 15-228 pivot shoes now.
Drill holes for the pivot bar is not a problem.
Thanks again for the help.
