tilt window channel balance

Quick Learner from Rotterdam , NY
Can I get this part delivered to me ?
2 user uploaded images
6 Replies
Emily
Emily from SWISCO
SWISCO
Expert

Hi there! We can help but we'll need to see your undamaged pivot shoe removed from your window, along with dimensions, to compare to our inventory. If we can identify the pivot shoe, that will tell us the coils and accessories that you'll need.

Quick Learner from Rotterdam , NY
The tilt-window coil balance is 3 1/16 length, 9/16 thick, 1 1/4 width
I think I found the pivot shoe in a email that Swisco sent to me, it is used with the series 152 window sash support constant balance spring.
2 user uploaded images
Emily
Emily from SWISCO
SWISCO
Expert

Our best match is our 15-192 pivot shoe with a series 170 and series 171 coil springs. Please see our 15-156 cover and 15-157 bushing. The video below shows how all of these parts work together.

Quick Learner from Rotterdam , NY
I think the part I need is different from the S170 and S171 Coil balance , because the coil assembly and pivot shoe are separated?

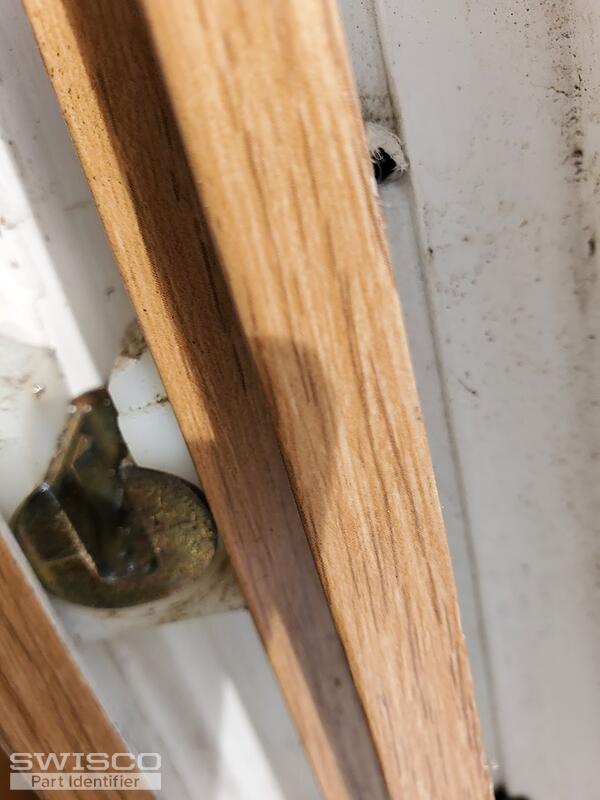

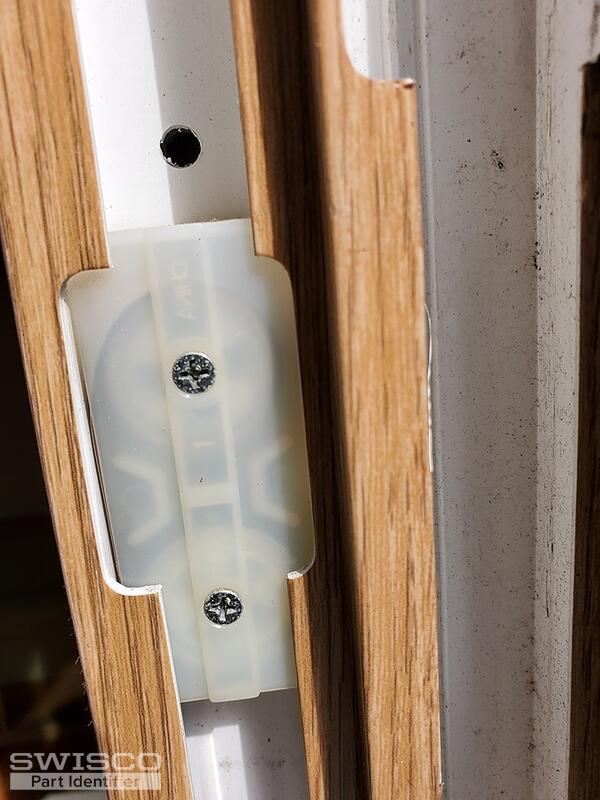

I included a picture of the coil assembly which stays screwed to the window frame, and a picture of the pivot shoe, which moves with the window.
2 user uploaded images
Emily
Emily from SWISCO
SWISCO
Expert

Your pivot shoe looks just like our 15-192 pivot shoe which is compatible with our Series 170 and Series 171 coil springs. The pivot shoe attaches to the coil springs. I'm not sure what you mean when you say ' the coil assembly and pivot shoe are separated', could you clarify?
