tilt window latch

Professional from Mohegan Lake, NY

Jul 3, 2024 12:04 pm

tilt window latch 2 1/16 x 1 1/16 x 5/16 with lock and 1/8 shank screw holes 2" OC 3/4" from latch end

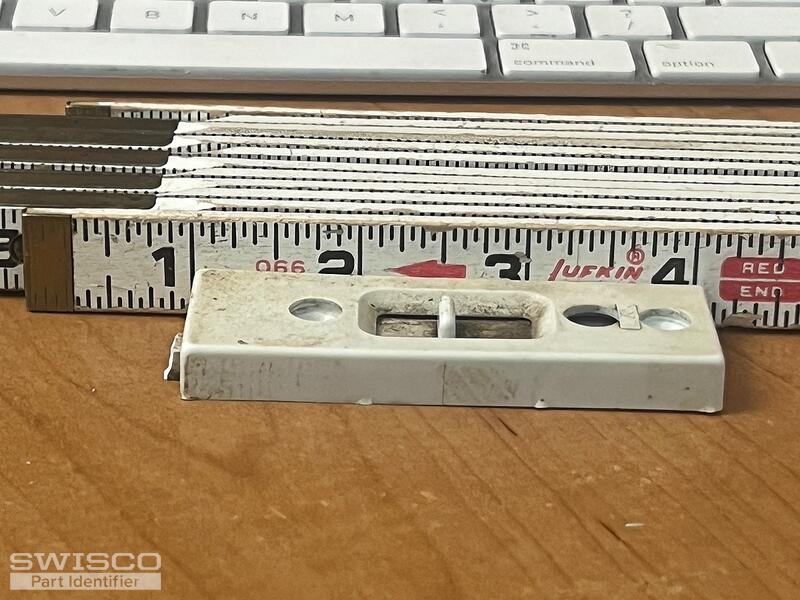

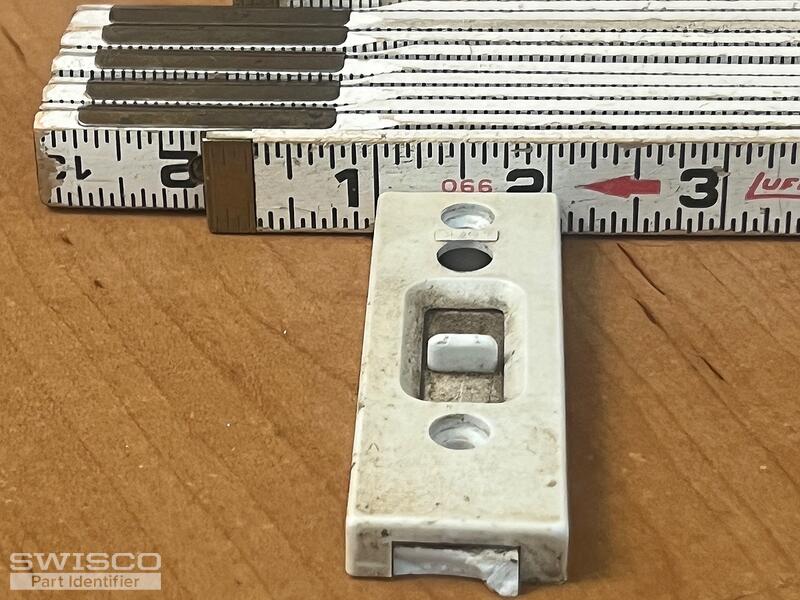

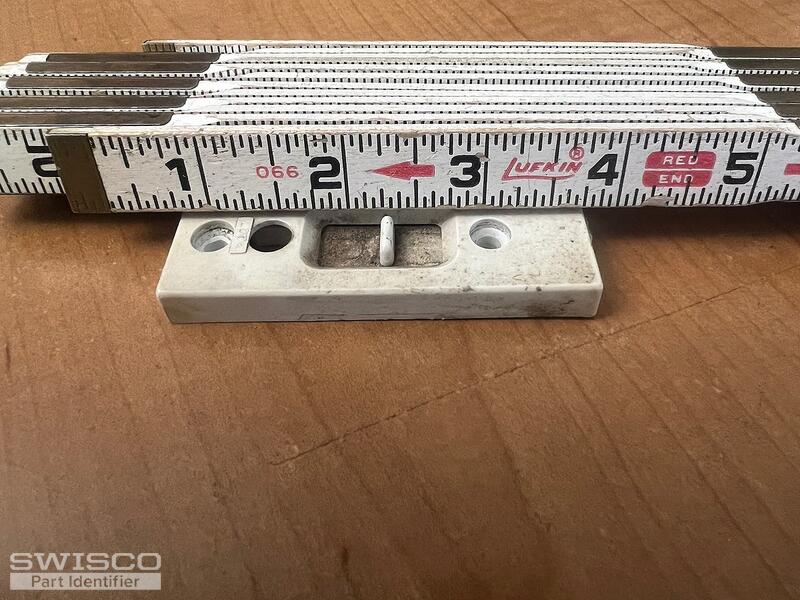

3 user uploaded images

6 Replies

+ Add a Comment

Emily from SWISCO

Jul 5, 2024 11:25 am

EXPERT

Hello there!

The 26-337 and 26-344 measure 2" on the installation hole centers. I recommend you review the rest of the specifications. See if one of them matches what you're searching for.

Detail of 26-337

Dimensions for 26-344

Professional from Mohegan Lake, NY

Jul 5, 2024 11:56 am

Thank you, neither of the two have a lock, I appreciate your help

Professional from Mohegan Lake, NY

Jul 11, 2024 2:23 pm

Hi Emily,
the latch's screw's C to C dimension is 2 1/16", it has a lock, it is 1 1/16" deep by 3 1/16" wide and the setback from the window edge to the first screw is 3/4".
Thank you for your help in this matter.
JD

Emily from SWISCO

Jul 12, 2024 10:25 am

EXPERT

We don't sell a tilt latch with 2-1/16" hole center spacing. The closest we have appear to be the 26-120, 26-121, 26-228, and 26-229. They measure 2-1/8" on the installation hole centers and the backset is 3/4". We can't promise they'll work but take a look at the dimensions and see what you think.

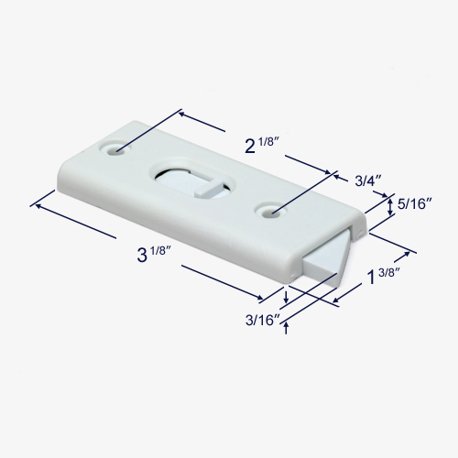

Measurements of 26-120

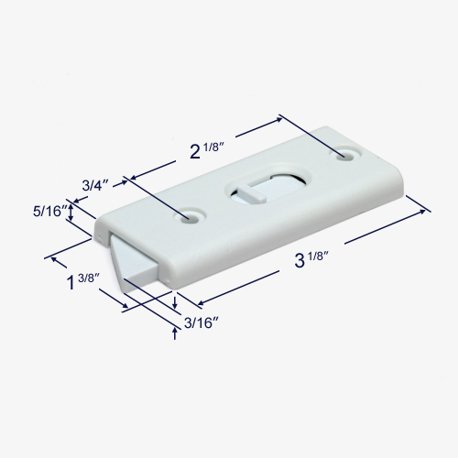

Measurements of 26-121

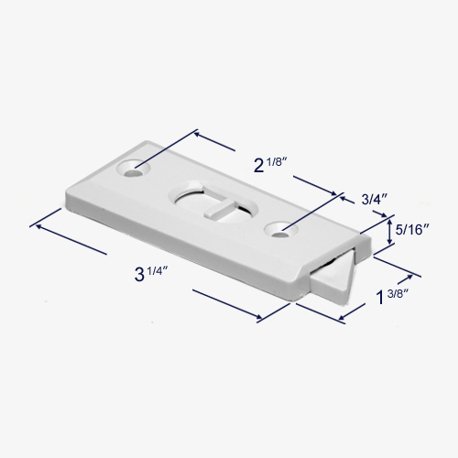

Alternate image for 26-228

Alternate image for 26-229

Professional from Mohegan Lake, NY

Jul 12, 2024 7:18 pm

Emily,
Thank you for your help, I have a whole new appreciation for part numbers; unfortunately, I do not see one on this latch; all the ones you have shown me that work for one reason or another; but again, I do appreciate your help trying to find a watch that would work

Emily from SWISCO

Jul 15, 2024 8:52 am

EXPERT

No problem! I am very sorry that we can't offer a suitable replacement option. We'll be here if you need anything else.
