top part

A quick learner from southern California says:

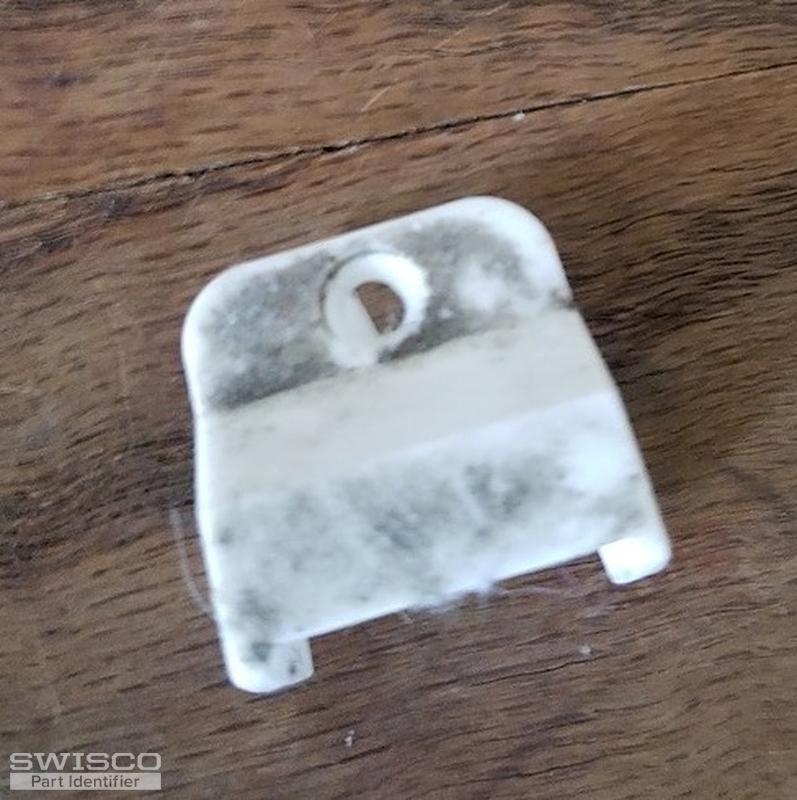

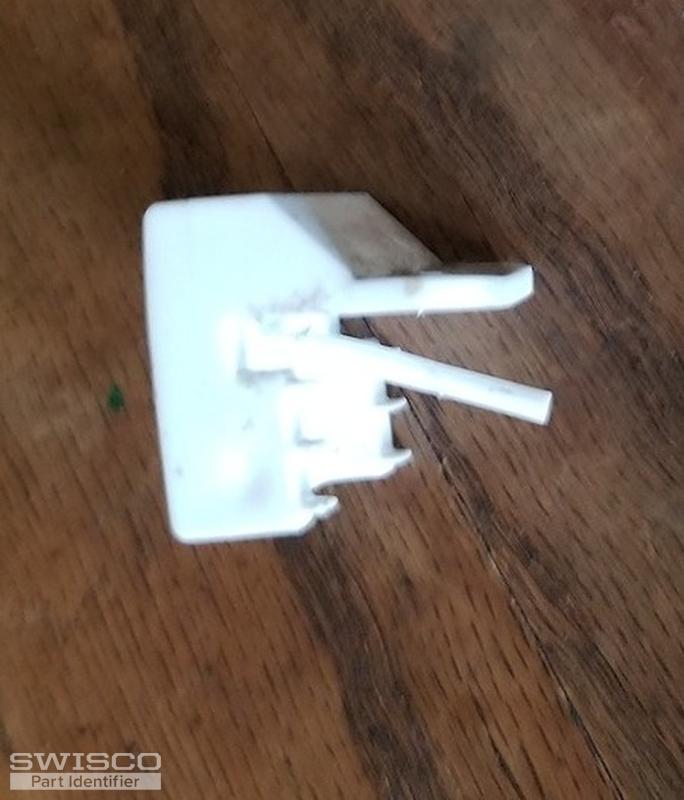

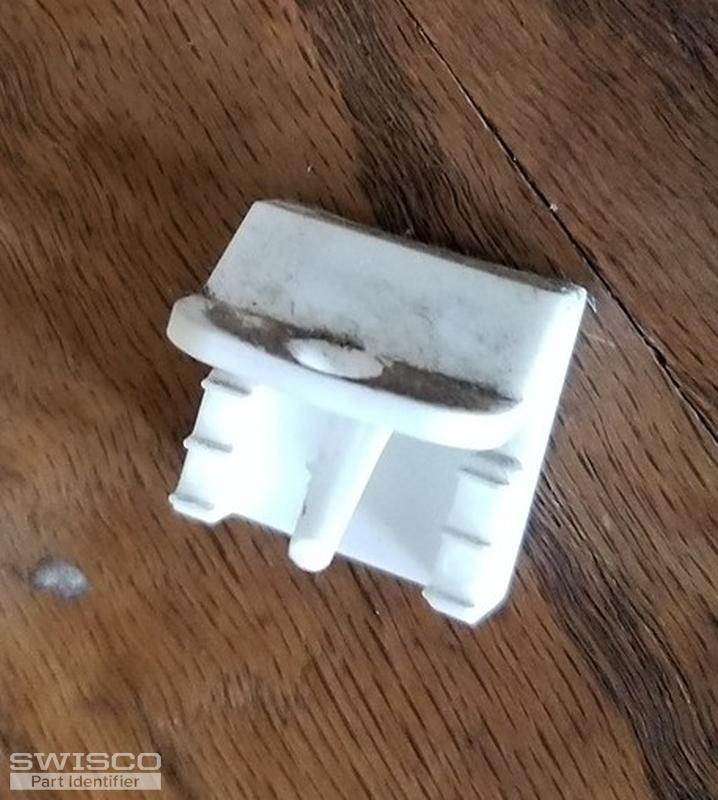

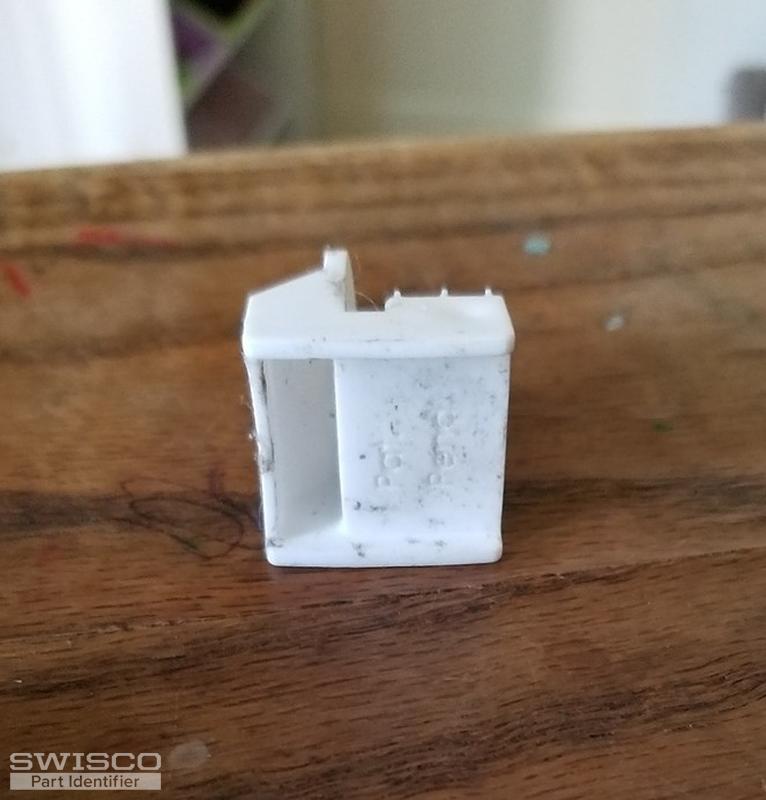

hello, this part goes on either side of the top of the window sash. its held in place but a 10mm long screw.

Thumbnail of the uploaded file named 20190506_163612.jpg
Thumbnail of the uploaded file named 20190506_163607.jpg
Thumbnail of the uploaded file named 20190506_163603.jpg
Thumbnail of the uploaded file named 20190506_163601.jpg
Thumbnail of the uploaded file named 20190506_163616.jpg
Profile picture of Paul
Paul from SWISCO responded:

Hello,

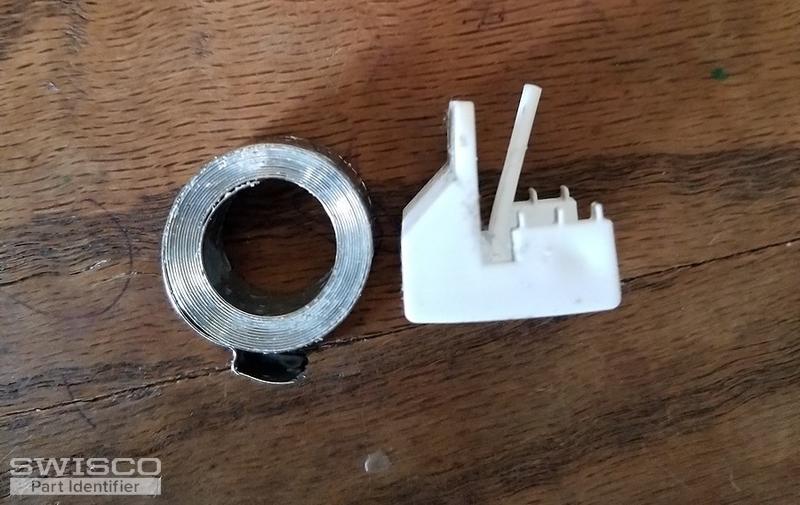

Your part is our 15-227 sash guide and is used with the S145 coil springs. Take a look and let us know if you need anything else. Thank you!
