top sash for alenco window

Quick Learner from Austin, TX
May 24, 2024 10:50 pm
I am ordering two replacement sashes. 28" Series 390 Channel Balance 2740 J

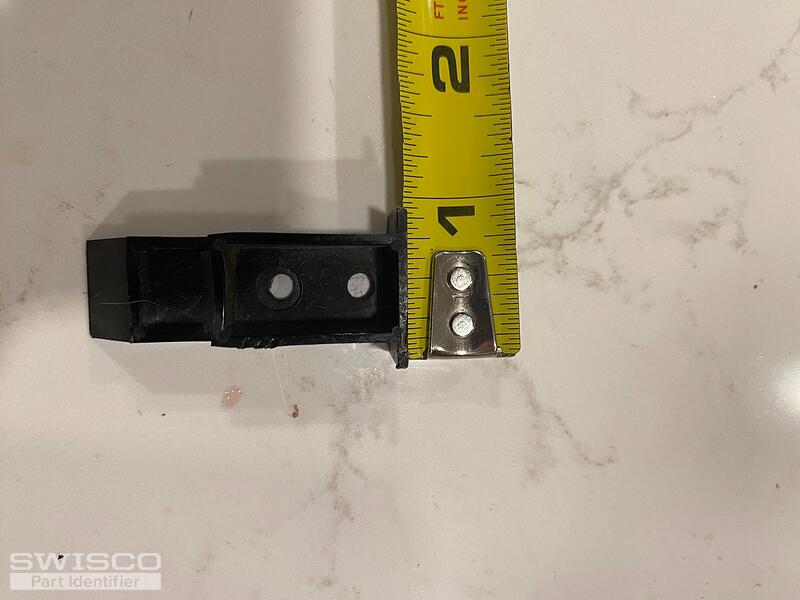

I need a top replacement sash as well. Can you help provide correct number for the attached top sash in the photos.

Thank You
Mark
IMG_3915 IMG_3916 IMG_3913 IMG_3914
4 user uploaded images
1 Replies
Bob
Bob from SWISCO
May 24, 2024 11:10 pm
SWISCO
EXPERT

Hey Mark. We don't carry this exact Top Sash Guide, but we believe the newer style Alenco 18-174 might work as a substitute. The screw hole is 11/32", the width of the body is 5/8" and the depth is 9/16". The balance locking lip is 1-7/32" down. This looks like it could work but take a look and see what you think.

Detail of 18-174
Detail of 18-174
Side view of 18-174
Side view of 18-174

Products and resources found in this discussion
