top sash guide

A quick learner from Benicia, CA says:
July 22, 2022
I need one new top sash guide
Could it be the 18-200 listed in your catalog?

the balance in this window is just over 1/2 inch, probably actually nine sixteenths.

It's a 21" tall window that is 46" wide. The number on the balances say Nineteen ninety, but I've already replaced them new ones.
Thumbnail of the uploaded file named image001.jpg
Thumbnail of the uploaded file named image002.jpg
Thumbnail of the uploaded file named IMG_2303.jpg

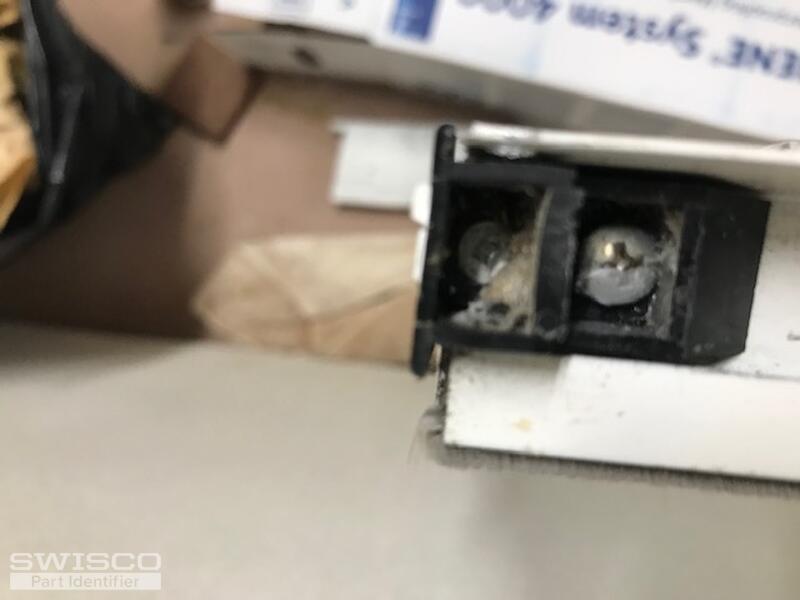

Thumbnail of the uploaded file named IMG_2304.jpg
Profile picture of Casey
Casey from SWISCO responded:
July 26, 2022

Hello,

I would recommend fully removing an undamaged top sash guide from your window to compare to the dimensions shown on the 18-009 product page. If you notice any discrepancies, let us know your exact dimensions and we can go from there. Thank you!
A quick learner from Benicia, CA says:
July 28, 2022
Ok

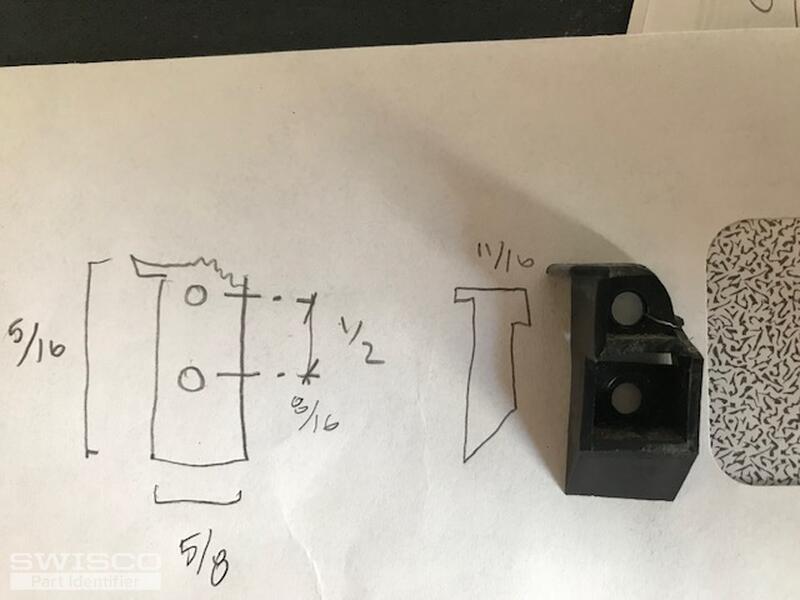

I removed the top sash guide and the width is 5/8" but the tricky part seems to be the distance between the 2 screw holes. It's 1/2" and I can't find any choices on your site for one with that gap between the holes
It's a Viking metal window
Thumbnail of the uploaded file named IMG_2373.jpg
Profile picture of Casey
Casey from SWISCO responded:
July 29, 2022

The distance between the installation holes isn't a determining factor since only one screw is necessary for installation but it does look like the 18-009 that we recommended does have 1/2" spacing between the center of the installation holes. If you subtract the 3/16" space above the top hole from the 11/16" measurement shown below, you get 8/16", or 1/2".

Detail of 18-009
Detail of 18-009
5/8" Top Sash Guide
5/8" Top Sash Guide
18-009
$0.99
