top sash guide and replacement balance

A home owner from Port Charlotte Florida says:

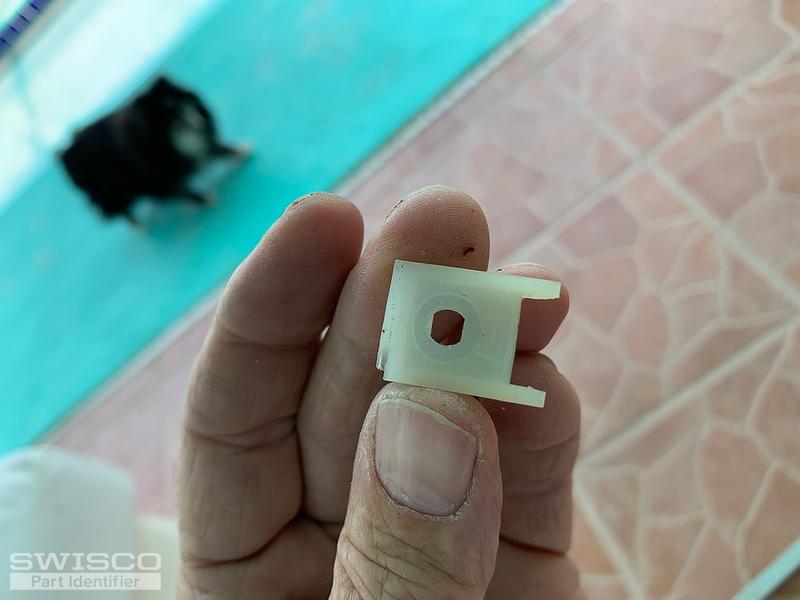

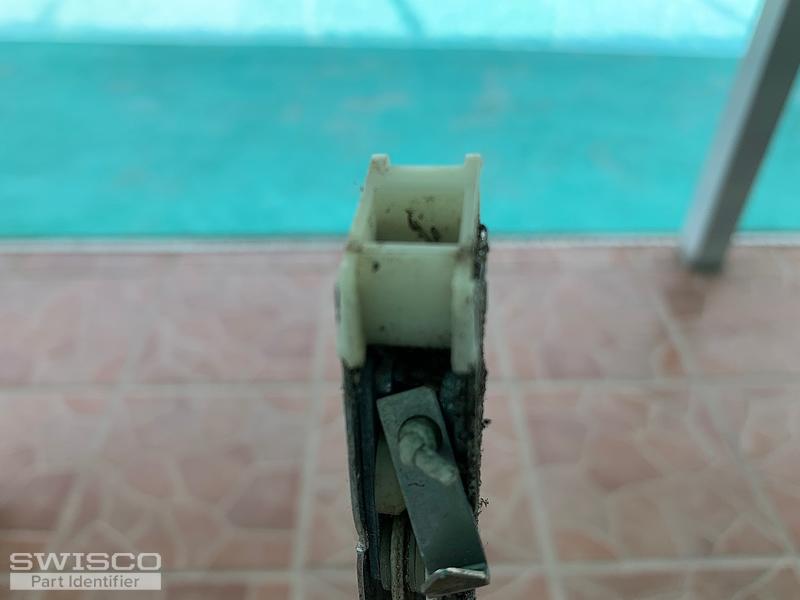

I need (2) 31 inch balancer stamped 3030 with the ends per photo along with (2) of the clips that screw the window. The balances measure 5/8 one side 9/16 the other without a rolled edge.

Call me if you have questions

Thanks

Thumbnail of the uploaded file named F3BBEAE3-A03D-4F95-9435-323EF8A78AE6.jpeg
Thumbnail of the uploaded file named 19E41C64-F33F-4F59-B4C6-20A7EAC27D40.jpeg
Thumbnail of the uploaded file named E15559C1-FD69-48BC-8837-C638DDC5E406.jpeg
Thumbnail of the uploaded file named 1197D981-D17C-43A7-AB71-E8D2F7E6CCCD.jpeg
Thumbnail of the uploaded file named 948FC4D7-D994-4ED4-9F6E-4F490563AF6E.jpeg
Profile picture of Paul
Paul from SWISCO responded:

Hey there, thanks for posting. It looks like you have a Pan Am window that uses our S377-31 channel balance. Unlike yours, our bottom balance shoe has wings to center the balance in the track. That might not matter, but if the wings on ours end up getting in the way then you can always cut them off. The top sash guides would be our 18-042.
