trying to confirm my size

Home Owner from Dallas TX

Jun 1, 2020 1:02 pm

Please let me know what will be the size and diameter that I need.
Also please send me the list of other parts that goes with the balance
trying to lock the bottom of the windows.
Do you have store in Dallas TX ?

3 user uploaded images

6 Replies

Tom from SWISCO

Jun 4, 2020 12:16 pm

Thanks for reaching out to us. We sell a variety of balances, but I'm not sure what you have from these photos. Can you show me a clearer picture of the bottom tip of the balance? Can you also tell me if this is a tilt or non-tilt window? Finally, I can't really read the diameter of your tube from that photo. Can you tell me what it is?

We do not have a store in Dallas, unfortunately. Our business exists online exclusively.

Home Owner from Dallas TX

Jun 5, 2020 12:25 pm

Call me at [removed for privacy]

Thank you

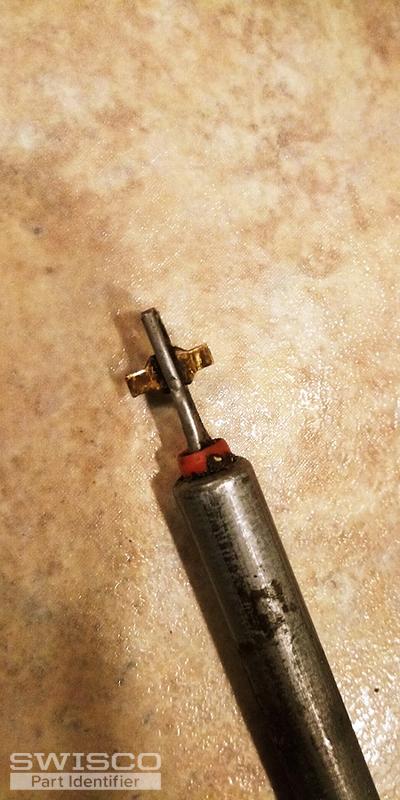

1 user uploaded image

Tom from SWISCO

Jun 5, 2020 1:10 pm

I'm afraid I don't have a phone line. I can only help you here.

This picture is a big help, but I'm still not sure what the diameter of the tube is. It looks pretty large so it may be 9/16". If so, then I recommend the Series 500 spiral balance.

As for other parts you need, that's not something I can say. The Series 500 is compatible with dozens of different parts add-ons depending on who made the window. We would need photos of each part you have now.

Home Owner from Dallas TX

Jun 8, 2020 12:31 am

Picture might showing big, but I tape measured and it's two line less than half inch.
so the Size is 3/8"

Length is 27 without tips.

It's non tilt window,
Need the parts number for plastic piece goes to the buttom of the windows for this 27 inch tube.

Thanks.

Tom from SWISCO

Jun 8, 2020 9:25 am

Gotcha, in that case you definitely want the S400-27 instead.

I'm not sure what the plastic piece at the bottom of the window might be. It sounds like it could be a mounting bracket, but the S400-27 is compatible with dozens of different kinds. I would need to see it in order to recommend a match.
