tube balance for window sash

A home owner from ROMNEY, WV says:

April 19, 2017

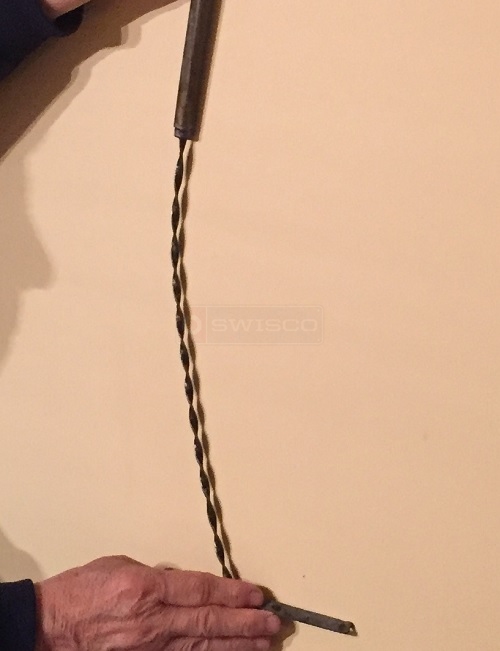

item; 70-L-25S. Attached please find a picture of the tube balance. The tube balance is 25 inches long, with the width of 5/8 or 9/16 inches. The tip appears to be black. Thank you for your kind consideration, Charles

Paul from SWISCO responded:

April 24, 2017

Looks like you have an older non-tilt window. I would recommend looking at our S500-25 spiral balance with a black tip bushing. For the bottom bracket, I recommend our 17-012. This hooks on to the balance spiral and then screws to the bottom of the sash. Please review this hardware and let me know what you think!

A home owner from WV says:

May 4, 2017

thank you for your reply, but don't see the S500-25 with a black bushing. i would note that the window appears to weigh about ten pounds

Paul from SWISCO responded:

May 8, 2017

Oh, I'm sorry. The black tip is standard on many lengths, but it seems it is not the case for this one. That said, if your sash is 10 pounds, I would recommend the Red Tip color option.

25" Series 500 Spiral Balance

Wire Charging Tool for Non-tilt Windows

75-004

$2.55

#8 x 1" SS Philips Pan Head Screw

33-017

$0.21

#8 x 3/4" Philips Pan Head SS Screw

33-090

$0.27
