two window-channel balancers needed

A handy person from Sequim, WA says:

May 30, 2023

Printed on the lower end of the window-channel balancers: 26-5 EL5 CMC 43

The five attached photos represent one of two two window-channel balancers needed.

Total length of both channels, including the plastic parts at each end: 70.7 cm / 27.83 in

Please provide the correct part number for these two items.

Thank you.

John

Thumbnail of the uploaded file named DSCN0052.JPG
Thumbnail of the uploaded file named DSCN0053.JPG
Thumbnail of the uploaded file named DSCN0054.JPG

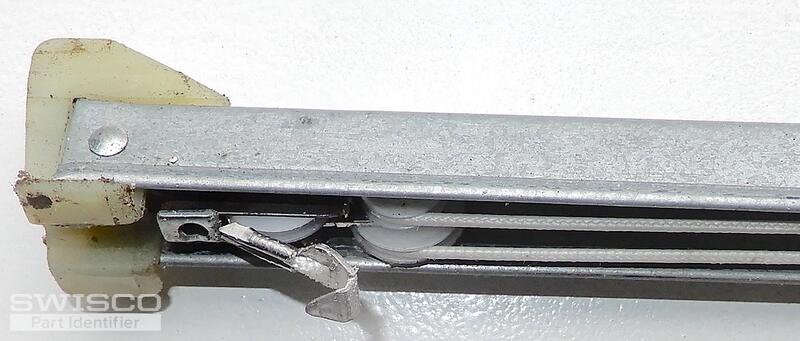

Thumbnail of the uploaded file named DSCN0055.JPG

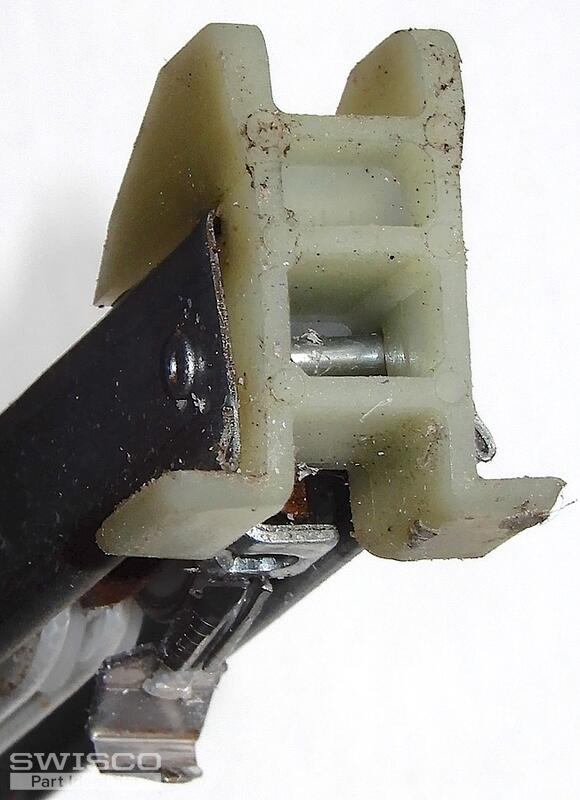

Thumbnail of the uploaded file named DSCN0061.JPG
Profile picture of Lauren
Lauren from SWISCO responded:

Hello, thank you for posting,

With this combination of attachments, you could have either an S380 or S385 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment.

The length of the metal channel excluding the nylon attachments should measure 27" long and you will need a 2650 stamp option.

Please review and let me know if you have any additional questions!

Comparison of the S380 and S385 balance shoes.
Comparison of the S380 and S385 balance shoes.
