vertical hung window channel balance

Landlord from Los Angeles

May 11, 2024 12:11 am

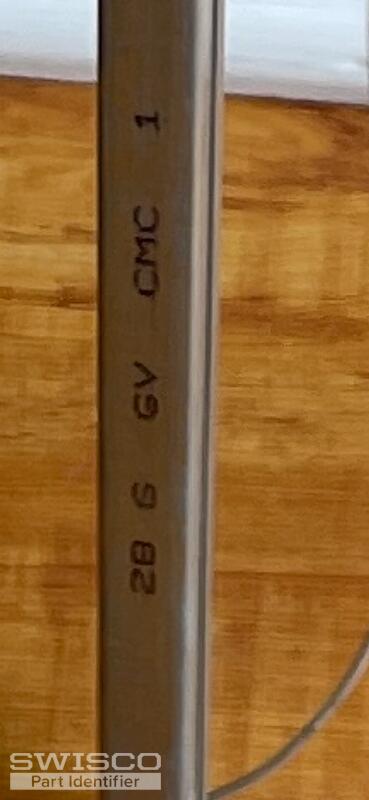

I am looking for the non-tilt vertical hung window channel balance with the spec:
28 6 GV CMC 1.
I need at least 4 for now. Do you have it in stock?
thank you.
Shan

4 user uploaded images

4 Replies

Emily from SWISCO

May 13, 2024 11:18 am

Hi there Shan.

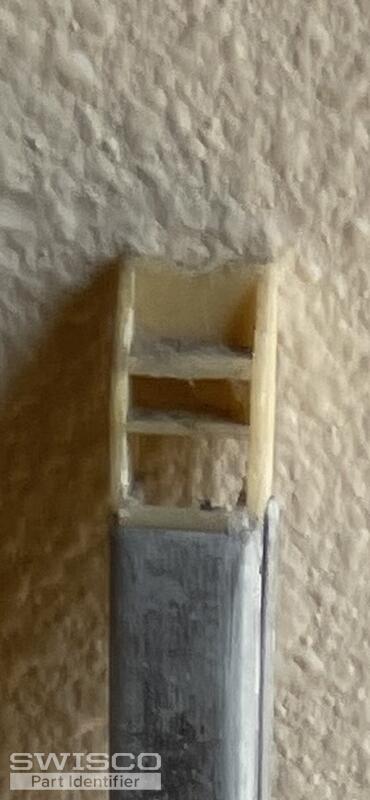

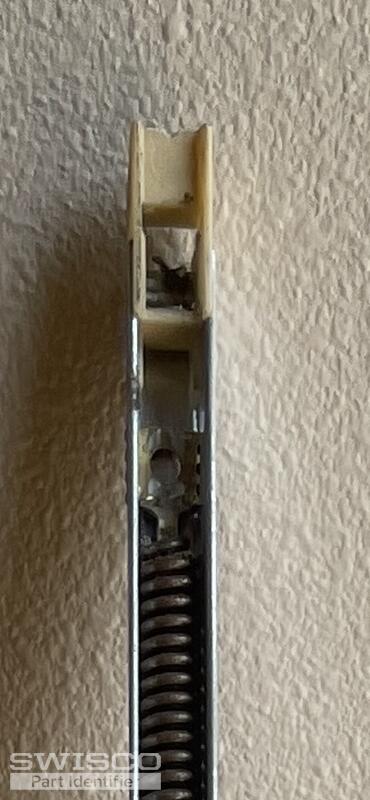

We should be able to help with this. Before I recommend anything, can you show us a photo of the inside of the metal channel where the inner spring connects to the pulley mechanism? I will do my best to assist from there.

Landlord from Los Angeles

May 15, 2024 10:25 am

Hi,

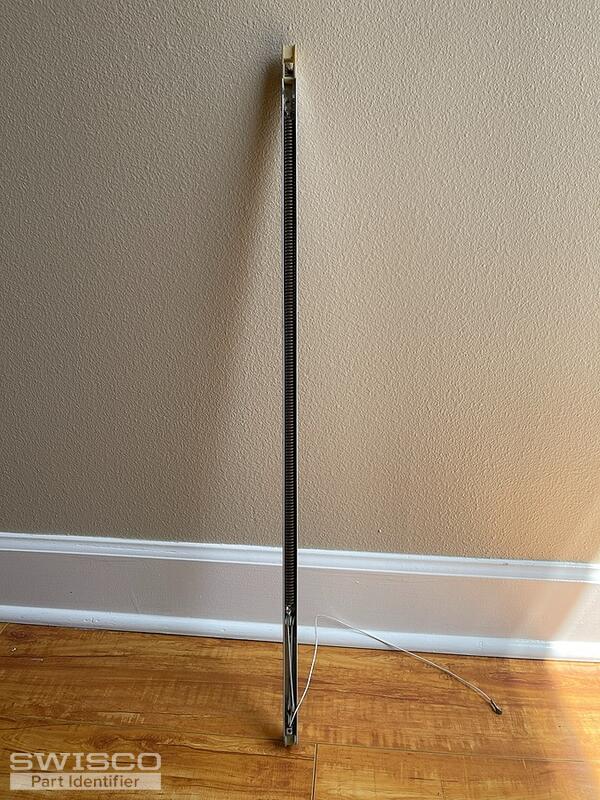

the metal portion measures 29' long and approx. o.6'deep and 0.6'wide.
Thank you for your help.
Shan

4 user uploaded images

Emily from SWISCO

May 15, 2024 10:40 am

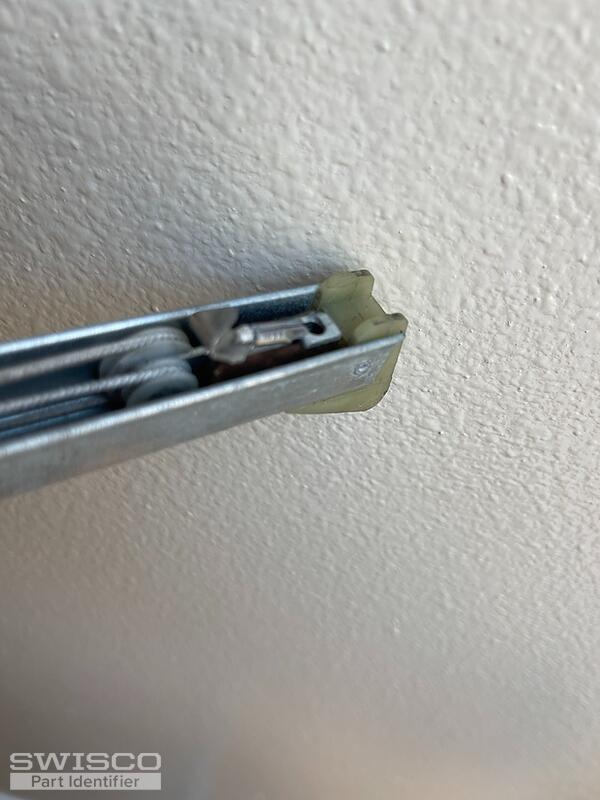

Thanks so much, Shan! I recommend our S351-29 or S390-29 channel balance. I know they look the same but the difference is the depth of the bottom shoe as shown below. You'll have to measure yours to determine the proper Series. I also recommend the 2860 stamp option based on your old 28 6 stamp.

I'll be here if you have any questions!

Comparison of the S351 and S390 balance shoes.
