The balance spring is marked 32R, BSI and a small PG. The overall length of the spring balance is 34 3/4 (thirty four and three quarters of an inch) or 882mm.
It is fitted to a Weathershield Wood tilt sash. The window is 11 years old.
The balance has a metal push down cord brake.
I also need weatherstrip for this window. The weatherstrip is for the center, between the two sashes. It fixes into a narrow slot and has two surfaces, one is a brush and the other appears to to be a soft cord.
Dan
weathershield channel balance
Handy Person from Naples, Fl.
Dec 29, 2017 3:59 pm
4 Replies
Casey from SWISCO
Dec 29, 2017 4:49 pm
In order for us to recommend you the most accurate replacements, we would need to see some photos of the hardware in question removed from the window. We also would like for you to provide the measurements and dimensions of the weatherstripping you are looking to have replaced. Once we have all of that information, we can proceed to suggesting some parts for you.
Handy Person from Naples, Fl.
Jan 5, 2018 12:56 pm

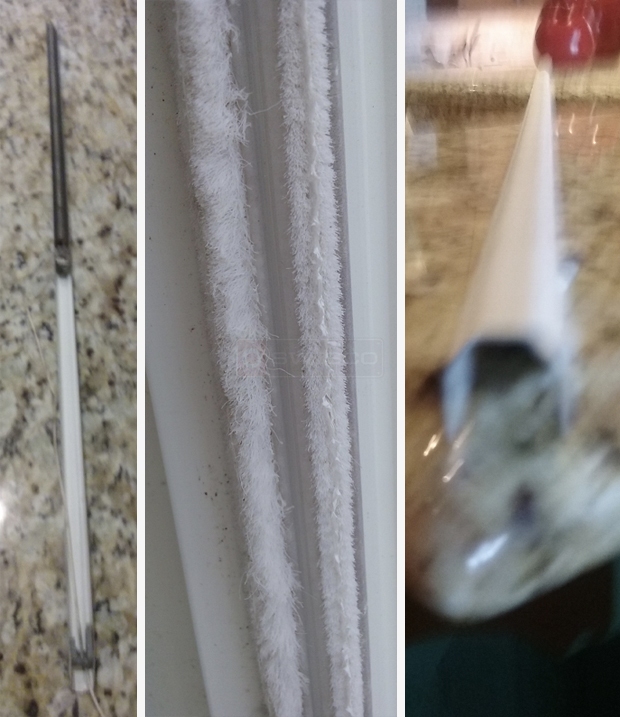

I attach some photographs of the balance spring and the weatherstrip. I need two balance
springs that will fit my window; I would prefer a different model of balance springs as I had to damage the one I removed, because it was designed to be inserted and removed with the side liner removed. I need 30 ft of weatherstrip.
Dan Stephens
Paul from SWISCO
Jan 11, 2018 12:36 pm
I'm afraid I can't make out your balance from these pictures. Can you send me a clearer version of the third photo? Can you also show us a picture of the shoe or clip at the end of the cord? Finally, based on your stamp of 32R, the metal channel length should be 33". Please double check.
For the wool pile weather stripping, we will need to know its width and height. I can't identify it based on that photo. In the meantime, you can see our entire selection here.
For the wool pile weather stripping, we will need to know its width and height. I can't identify it based on that photo. In the meantime, you can see our entire selection here.
